ABS W/Traction Control (TRAC)

DTC C1232 Deceleration Sensor Circuit

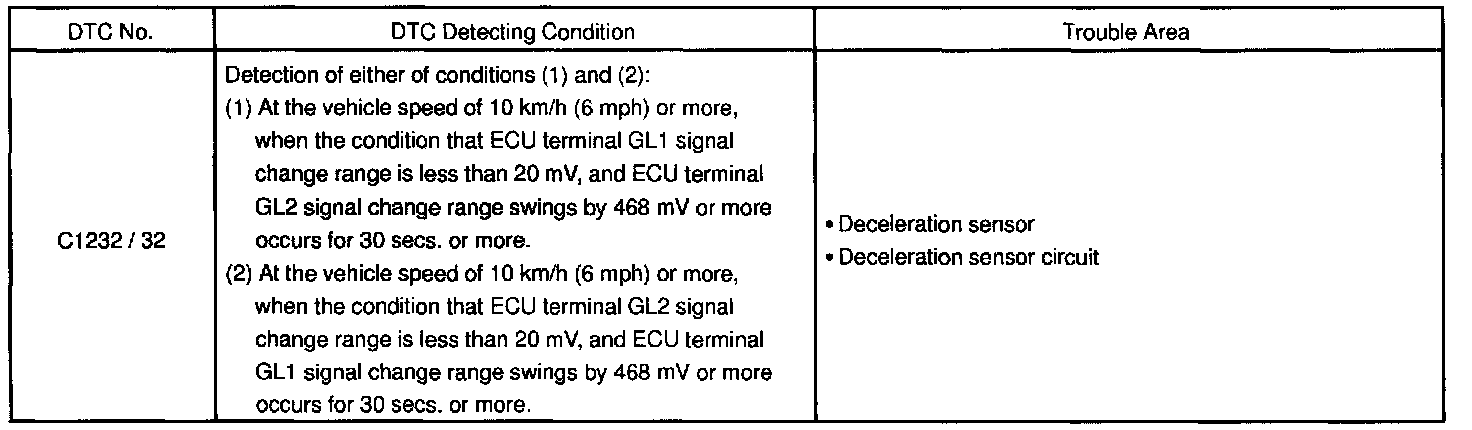

DETECTING CONDITION

Fail safe function:
If trouble occurs in the deceleration sensor circuit1 the ECU prohibits TRAC & VSC controls.

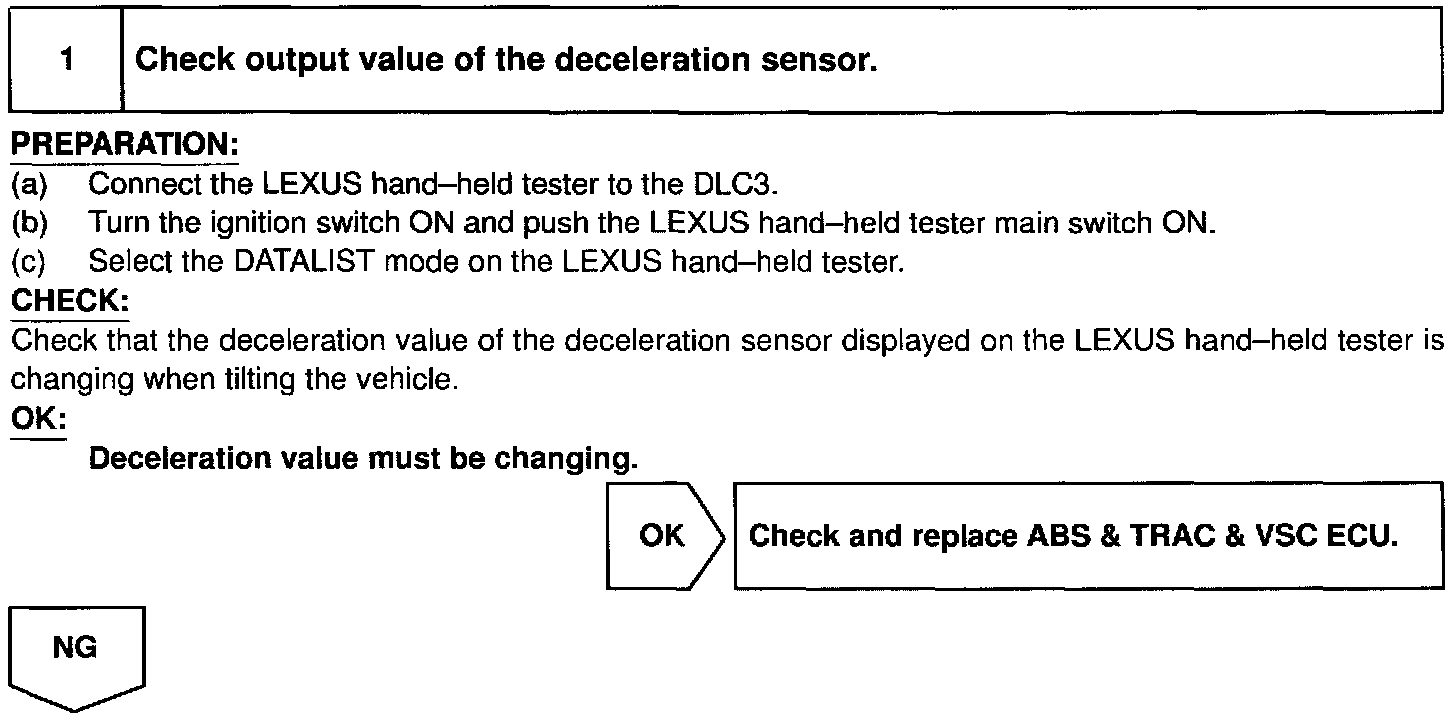

Step 1:

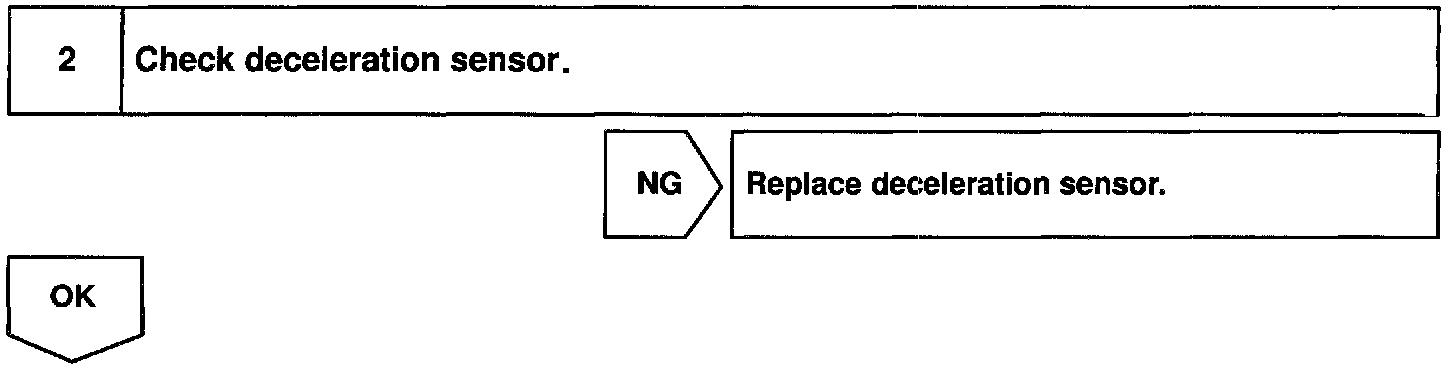

Step 2:

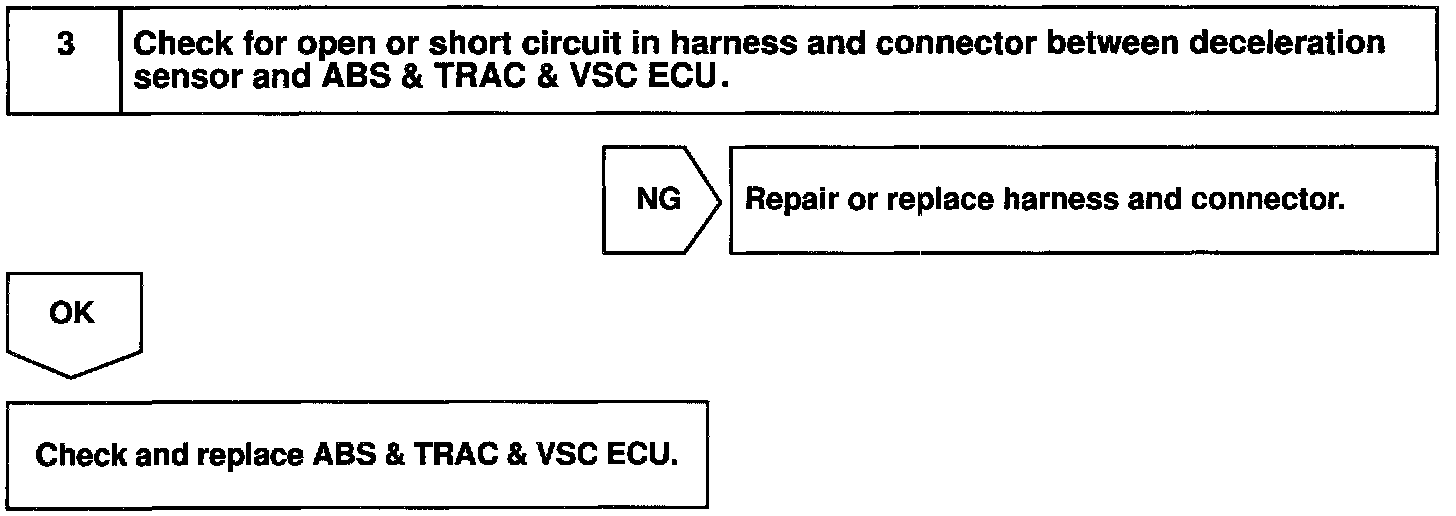

Step 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the LEXUS hand-held tester and start from step 3 in case not using the LEXUS hand-held tester.
