ABS W/Traction Control (TRAC)

DTC C1224 NE Signal Circuit

CIRCUIT DESCRIPTION
The ABS & TRAC & VSC ECU receives engine revolution speed signals (NE signals) from the ECM.

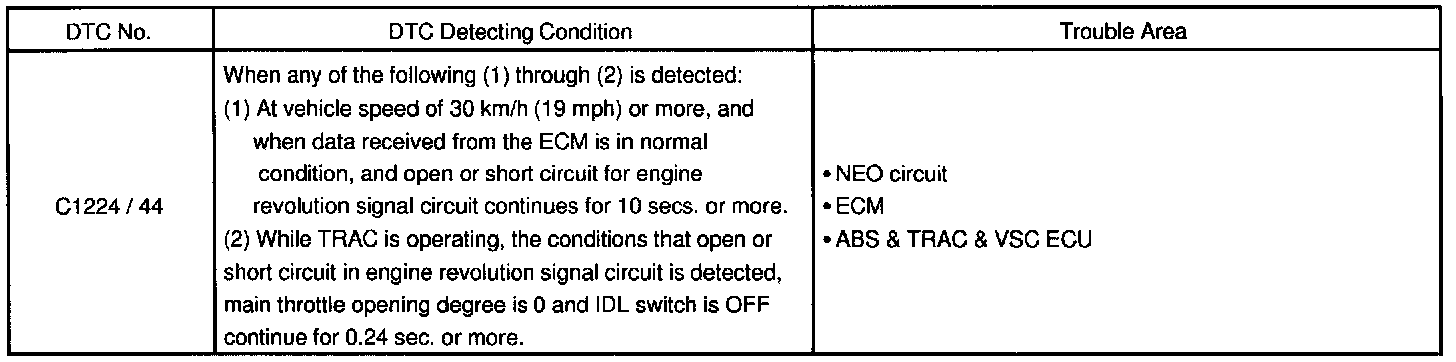

DETECTING CONDITION

Fail safe function:
If trouble occurs in the NE signal circuit, the ECU prohibits TRAC & VSC controls.

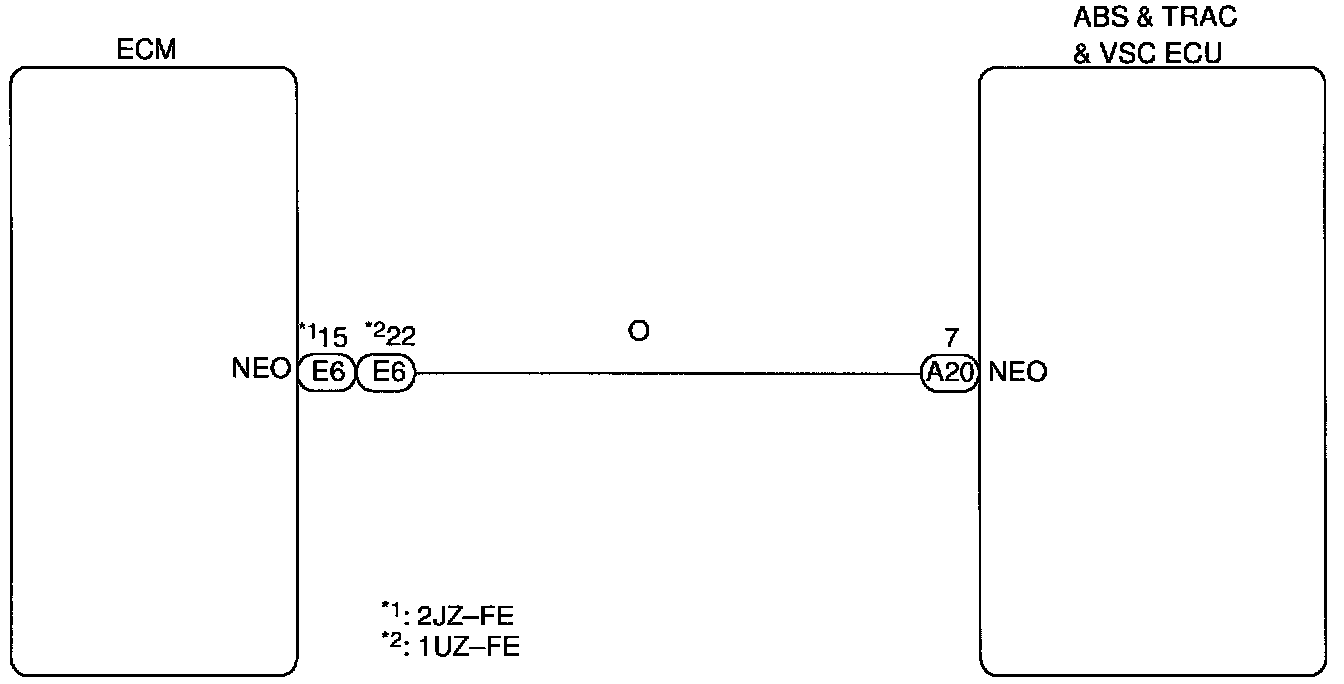

WIRING DIAGRAM

Step 1:

Step 2:

INSPECTION PROCEDURE
