ABS W/Traction Control (TRAC)

DTC C1207 P/R Range Switch Circuit

DETECTING CONDITION

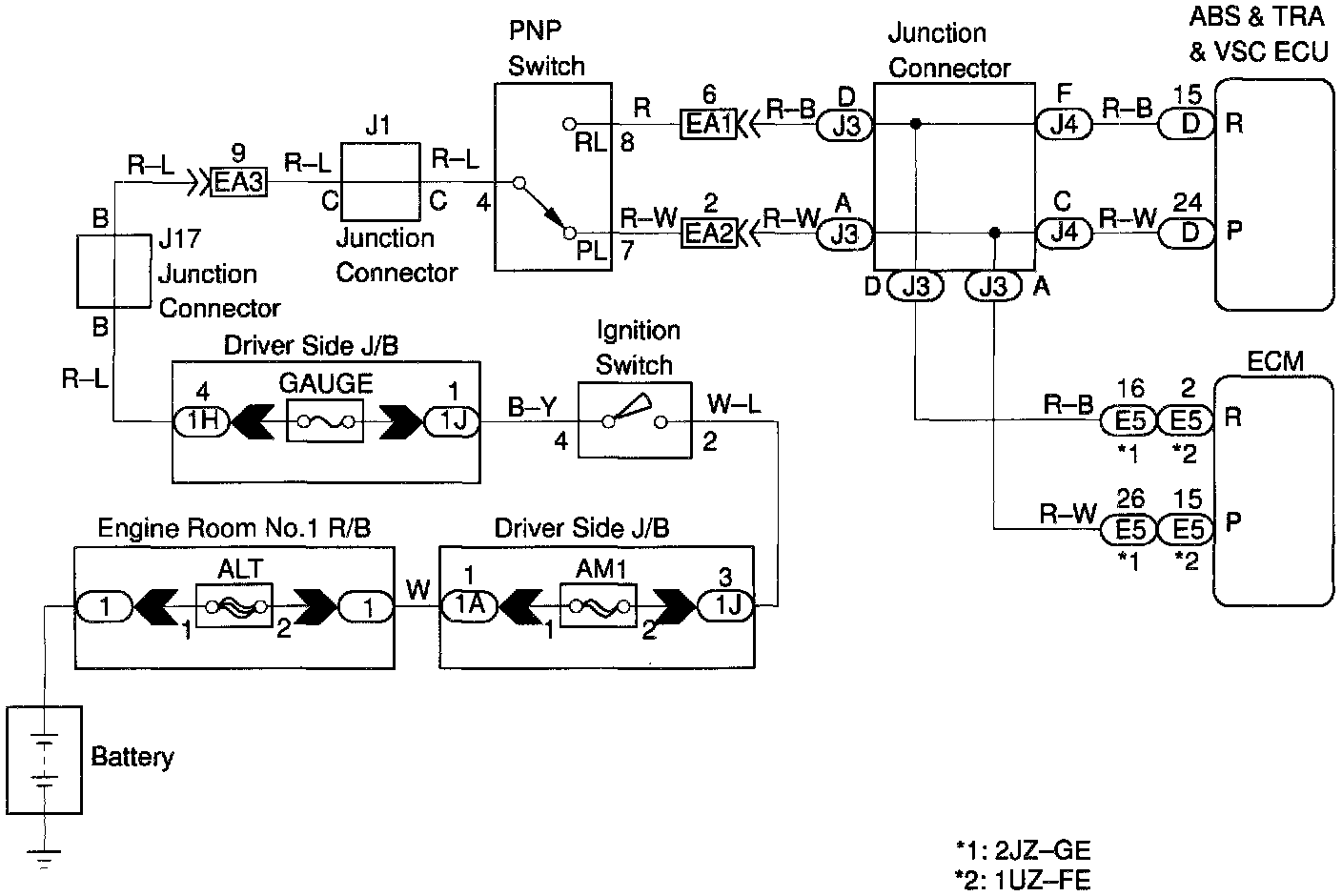

WIRING DIAGRAM

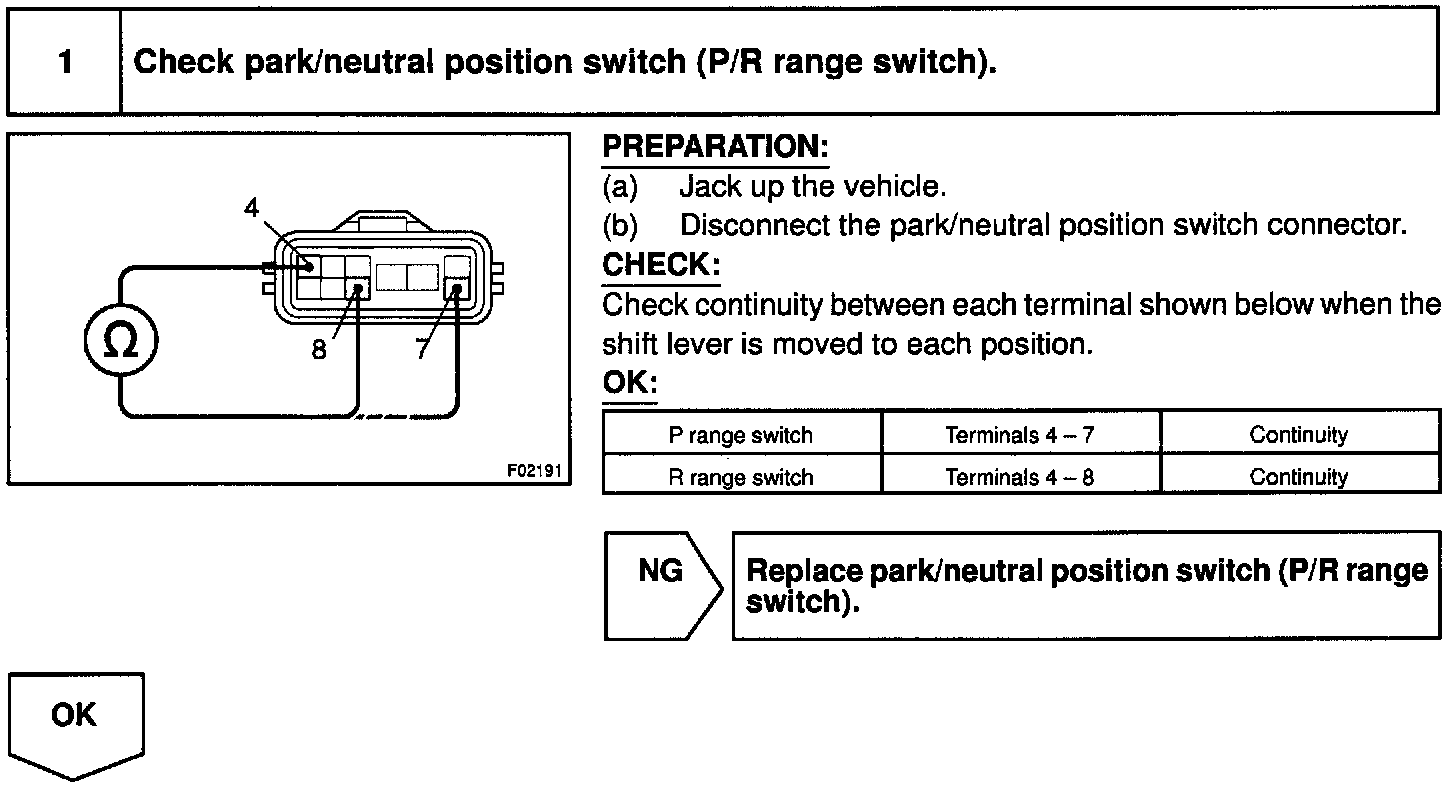

Step 1:

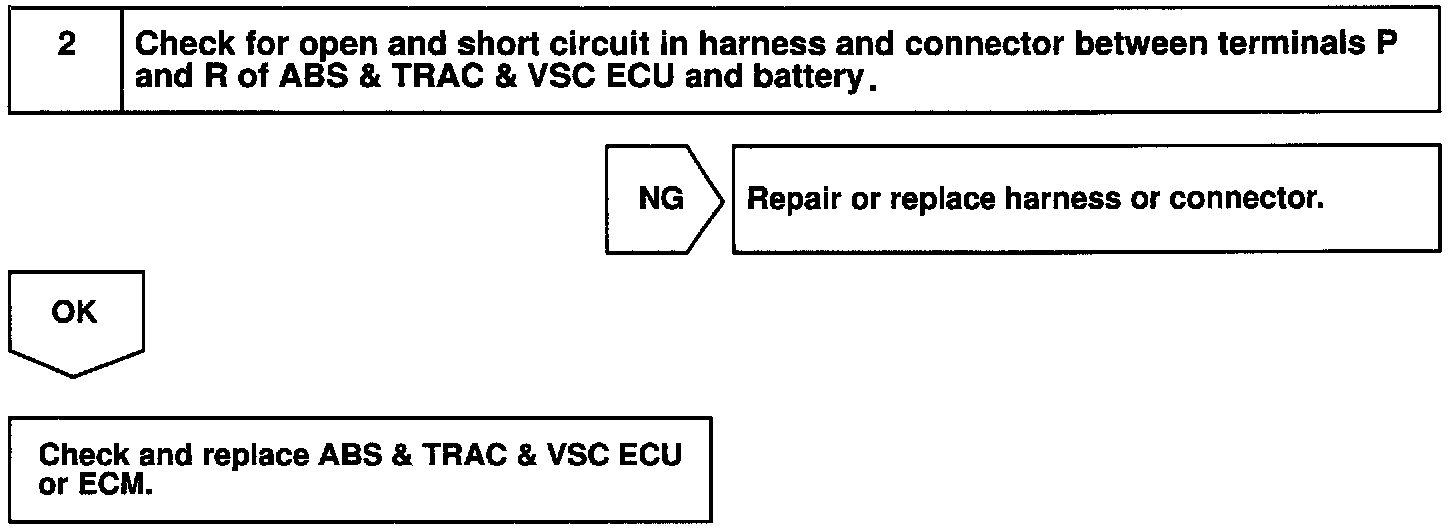

Step 2:

INSPECTION PROCEDURE
