B2797

DTC B2797 Communication Malfunction No.1

CIRCUIT DESCRIPTION
This code is detected when although the communication has been performed normally, an error occurs. (Example. Some noise is included in communication line.)





DETECTING CONDITION

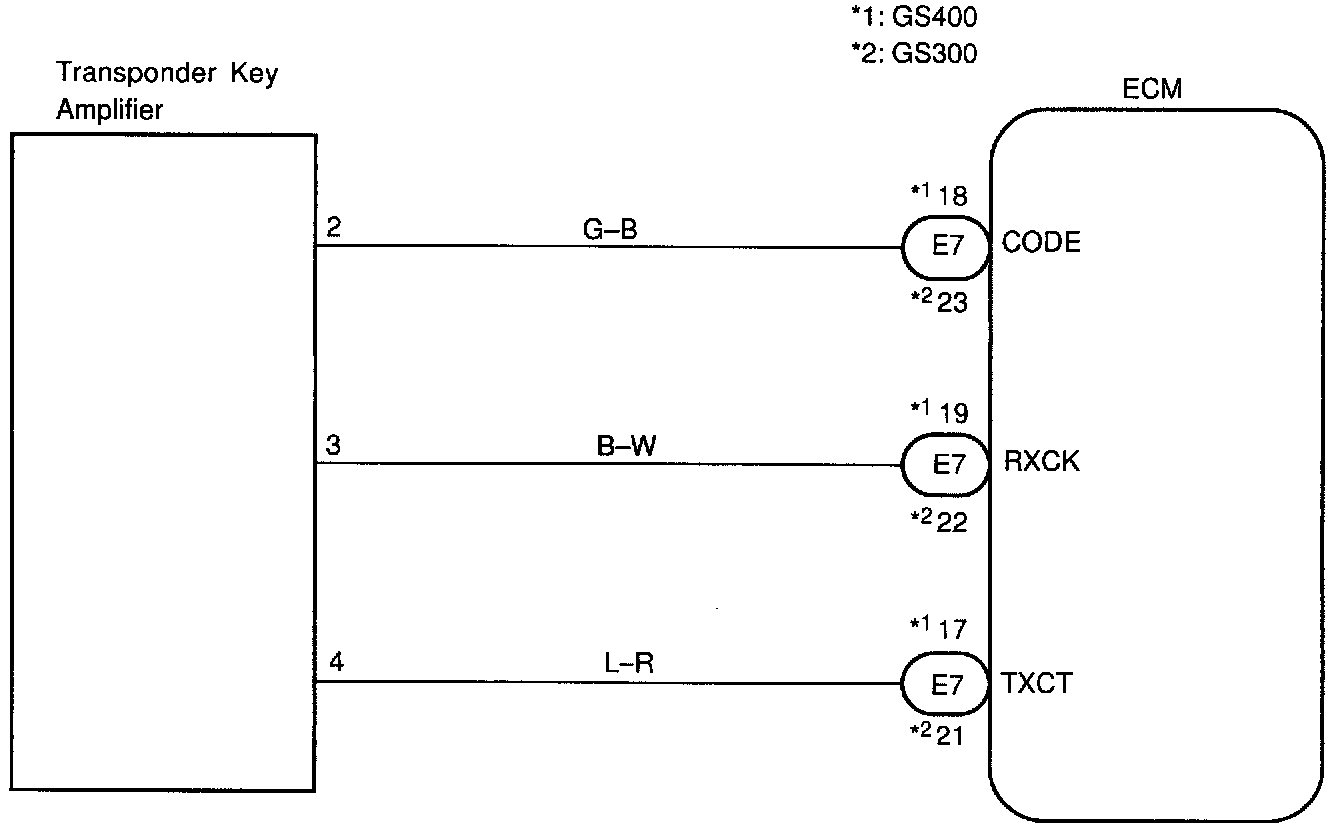

WIRING DIAGRAM

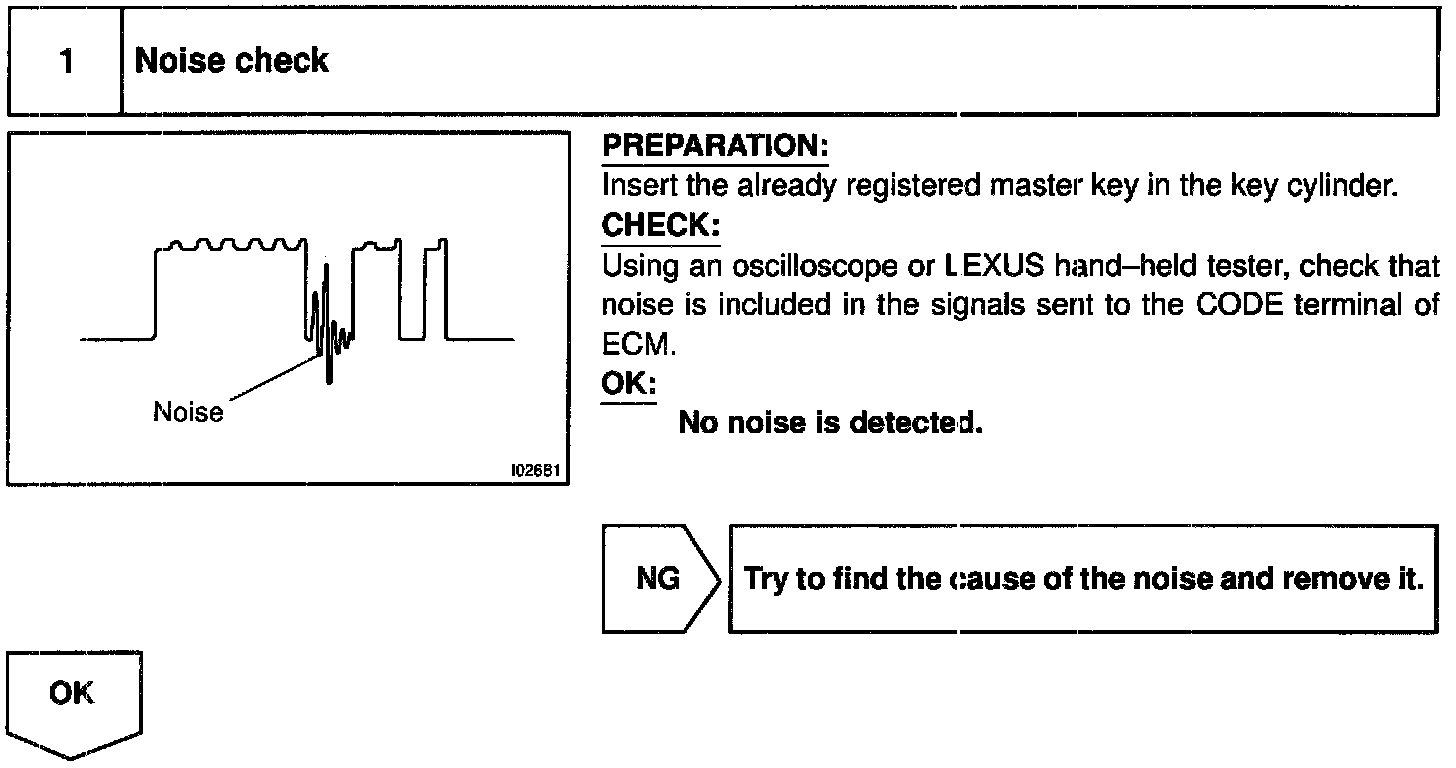

Step 1:

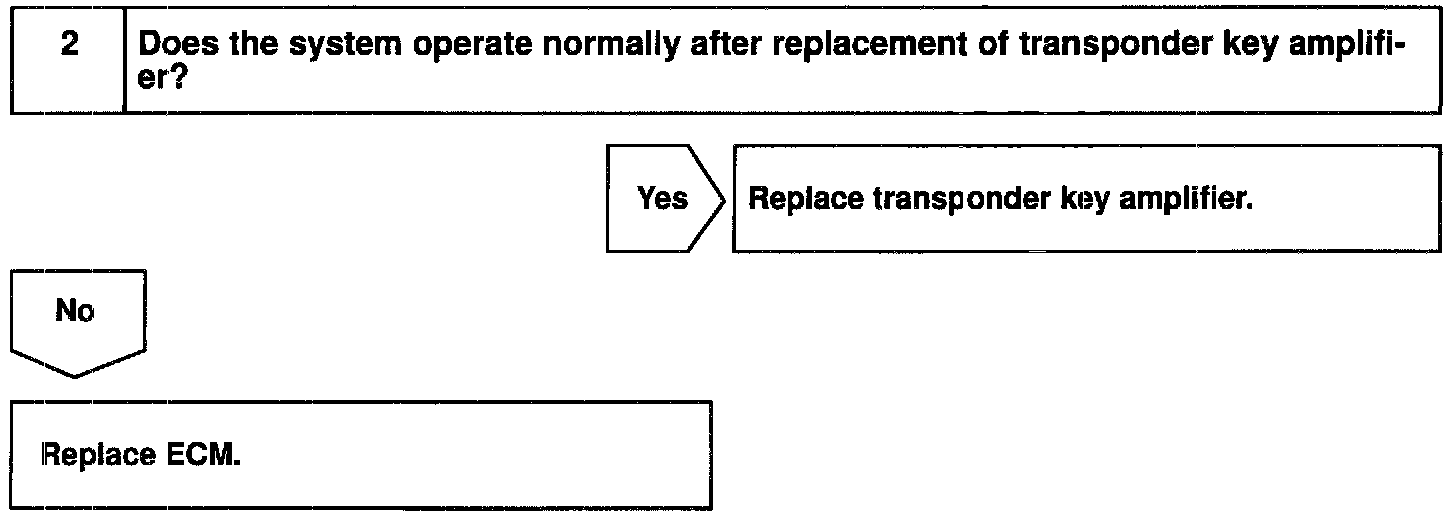

Step 2:

INSPECTION PROCEDURE
