B2620

DTC B2620 ECU Power Source Circuit Malfunction

CIRCUIT DESCRIPTION
ECU Power Source circuit supply the battery positive voltage to Tilt and Telescopic ECU.

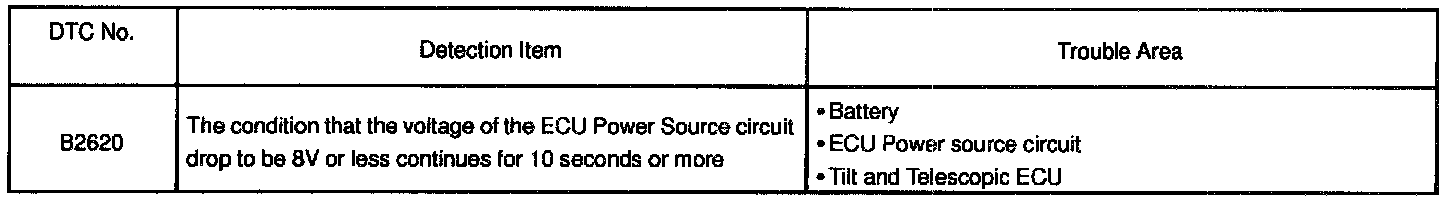

DETECTING CONDITION

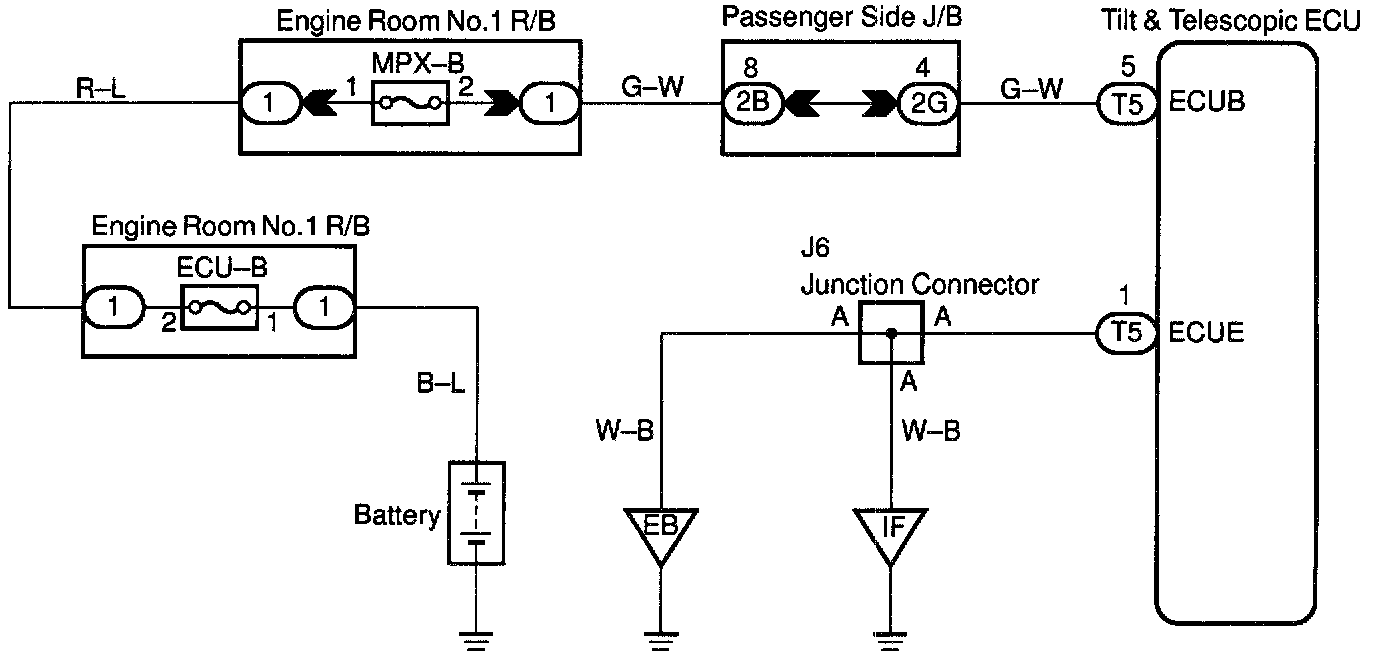

WIRING DIAGRAM

Step 1:

Step 2:

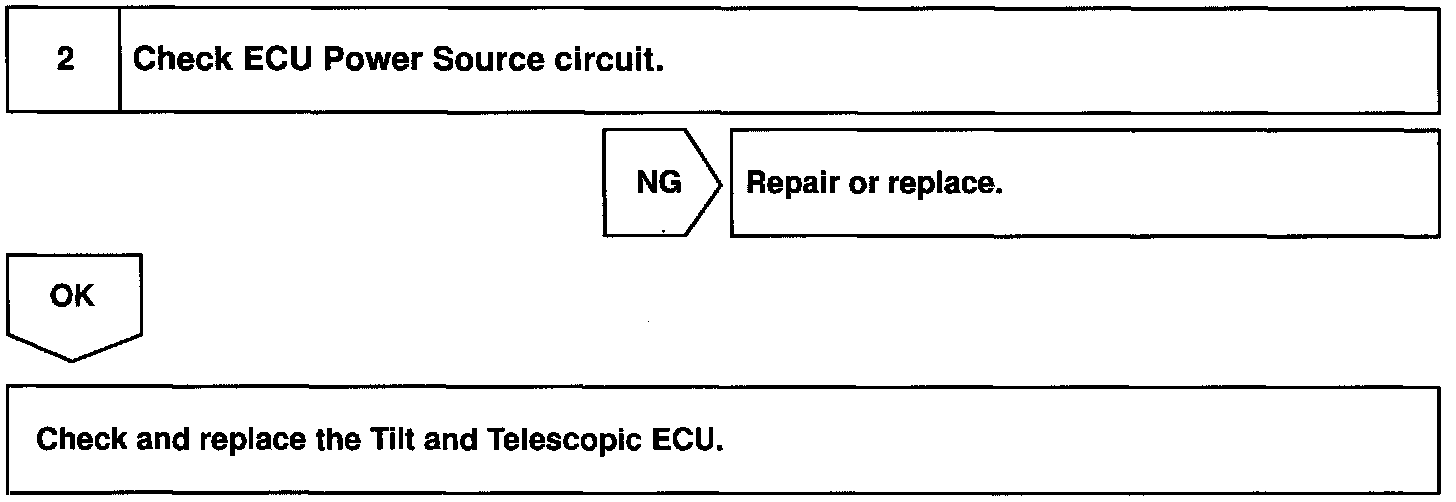

INSPECTION PROCEDURE
