DTC B2610 Tilt Position Sensor or Tilt Motor Circuit Malfunction





CIRCUIT DESCRIPTION
Tilt Motor is operated by the Power voltage supplied from Tilt and Telescopic ECU and makes the steering column tilt upward and downward. Tilt Position Sensor (Hole IC) in the Tilt and Telescopic ECU detects the tilt of the steering column and outputs the signal to the CPU in response to that tilt.





DETECTING CONDITION

HINT: Limit positions can be confirmed on the screen of the LEXUS hand-held tester.





WIRING DIAGRAM

Step 1:

Step 2:

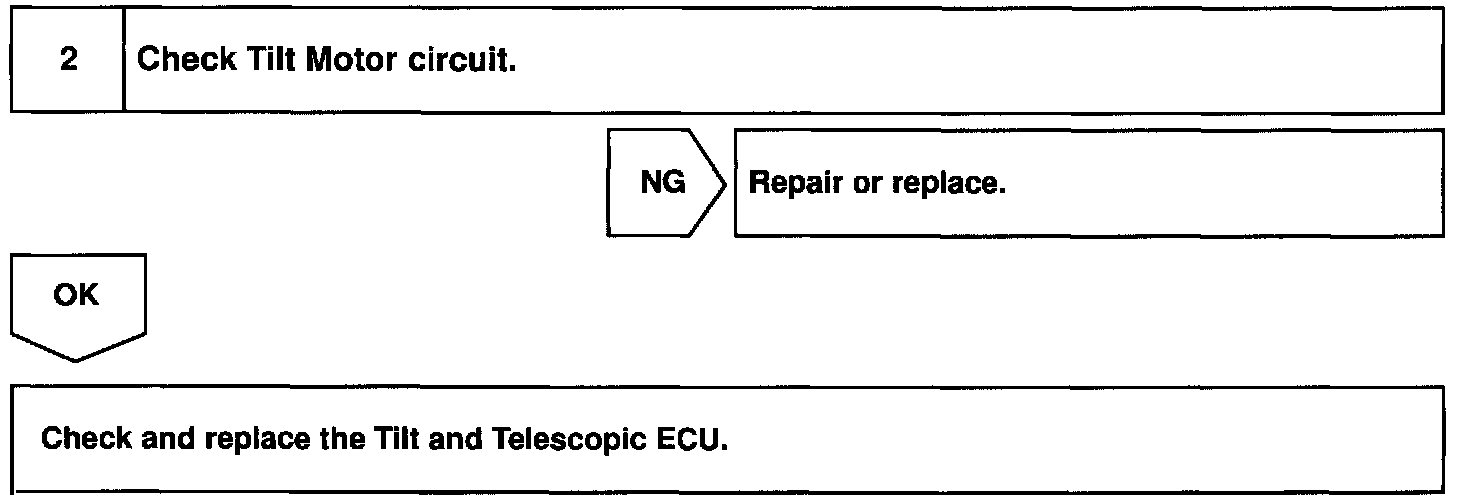

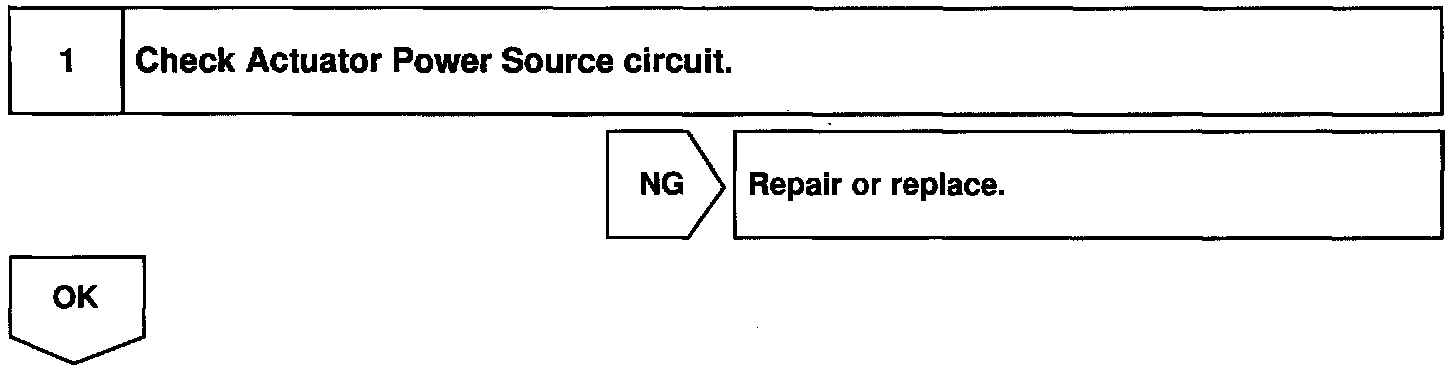

INSPECTION PROCEDURE
