B0135

DTC B0135 Short In P/T Squib (LH) Circuit

CIRCUIT DESCRIPTION
The P/T squib (LH) circuit consists of the airbag sensor assembly and seat belt pretensioner (LH). It causes the pretensioner to activate when the pretensioner activation conditions are satisfied.
DTC B0135/73 is recorded when a short is detected in the P/T squib (LH) circuit.

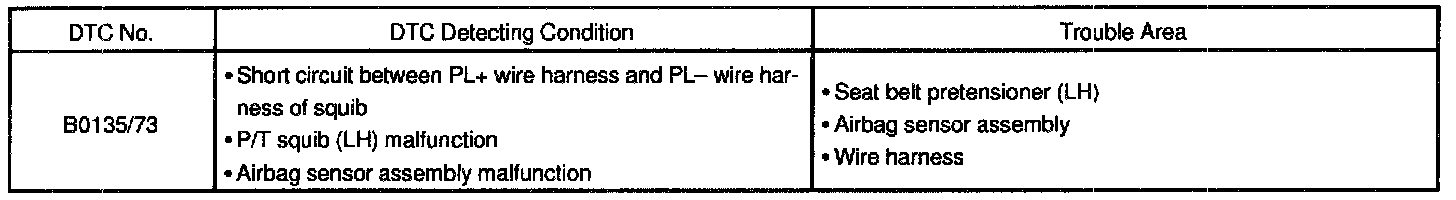

DETECTING CONDITION





WIRING DIAGRAM

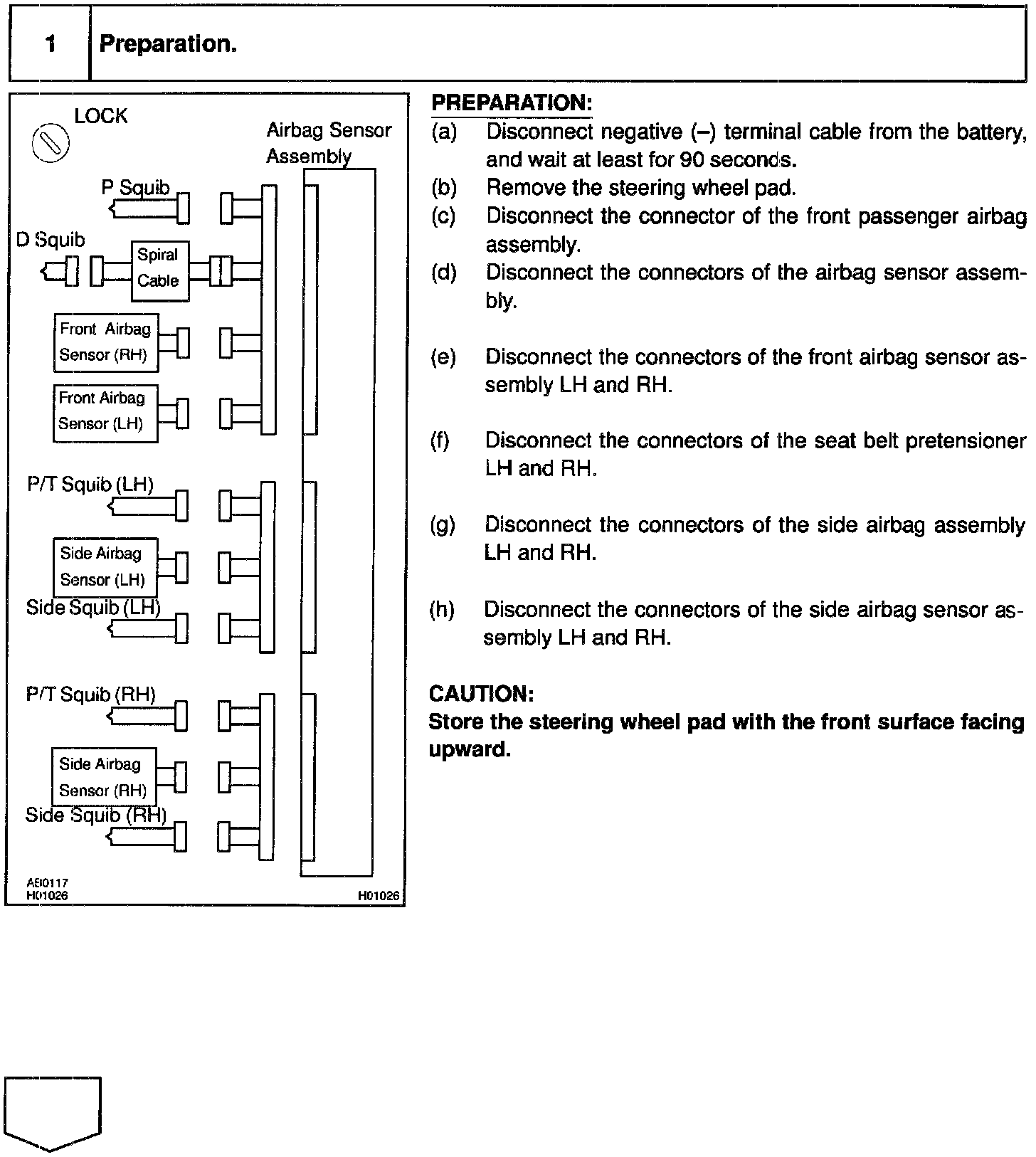

Step 1:

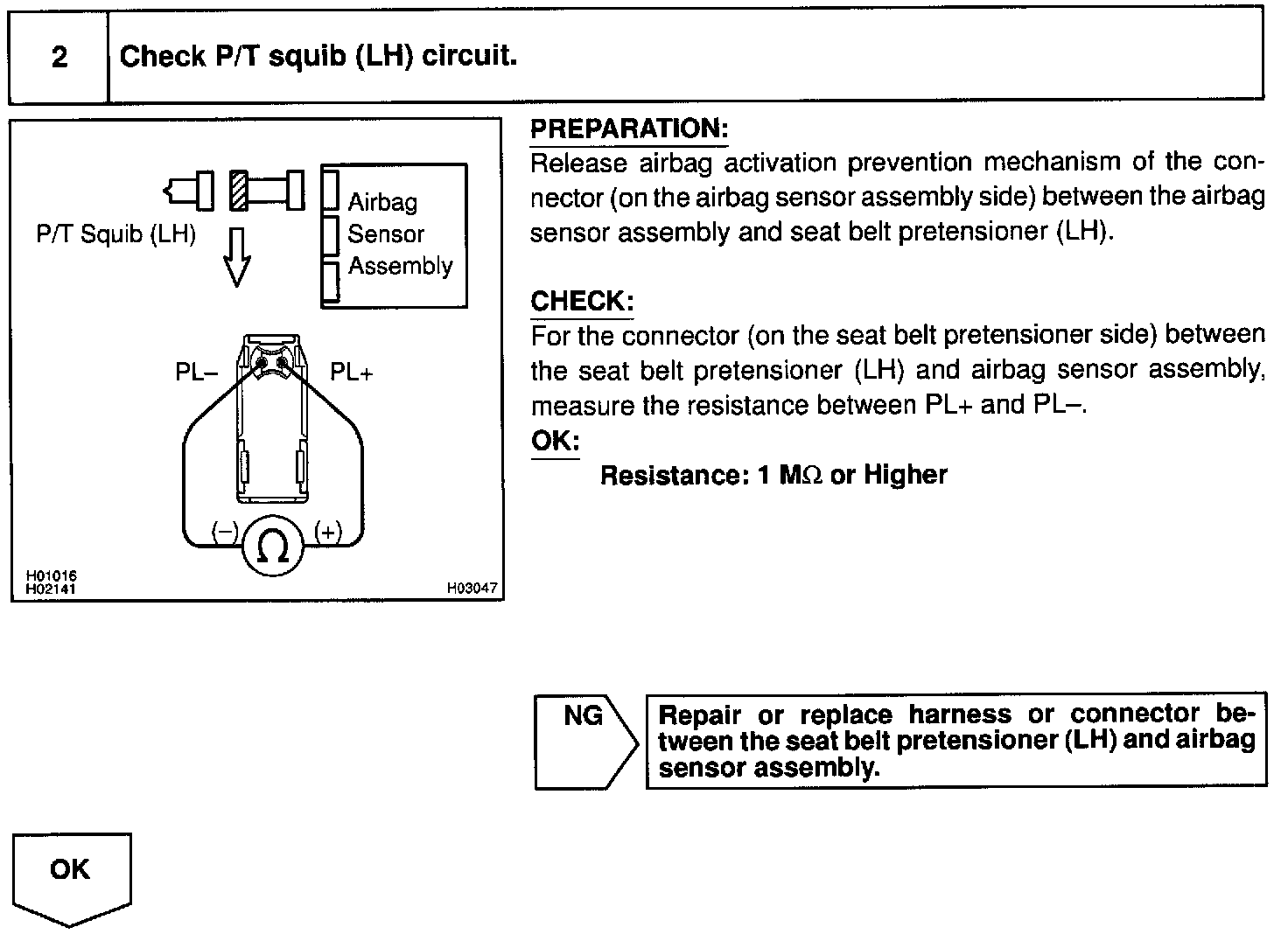

Step 2:

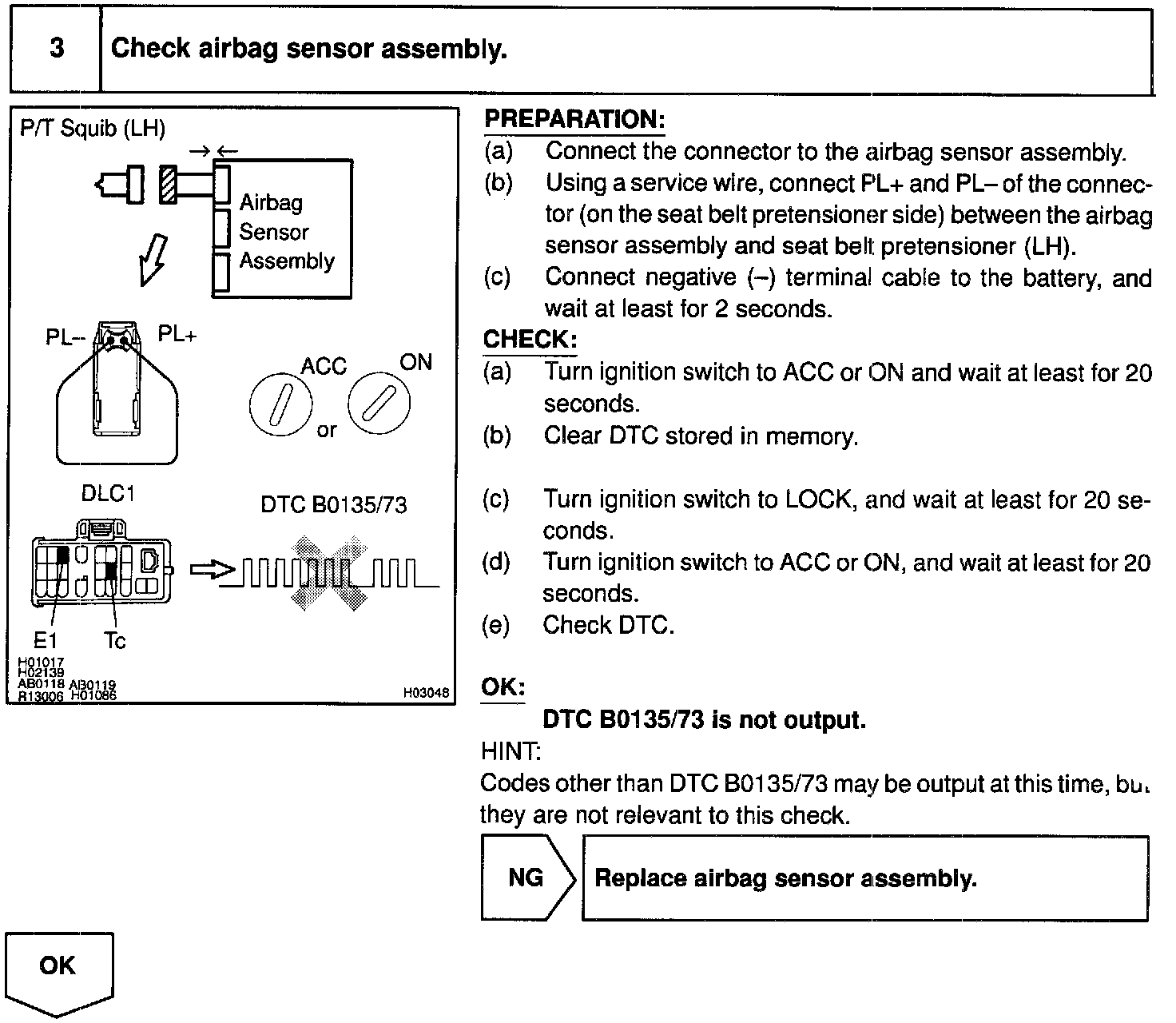

Step 3:

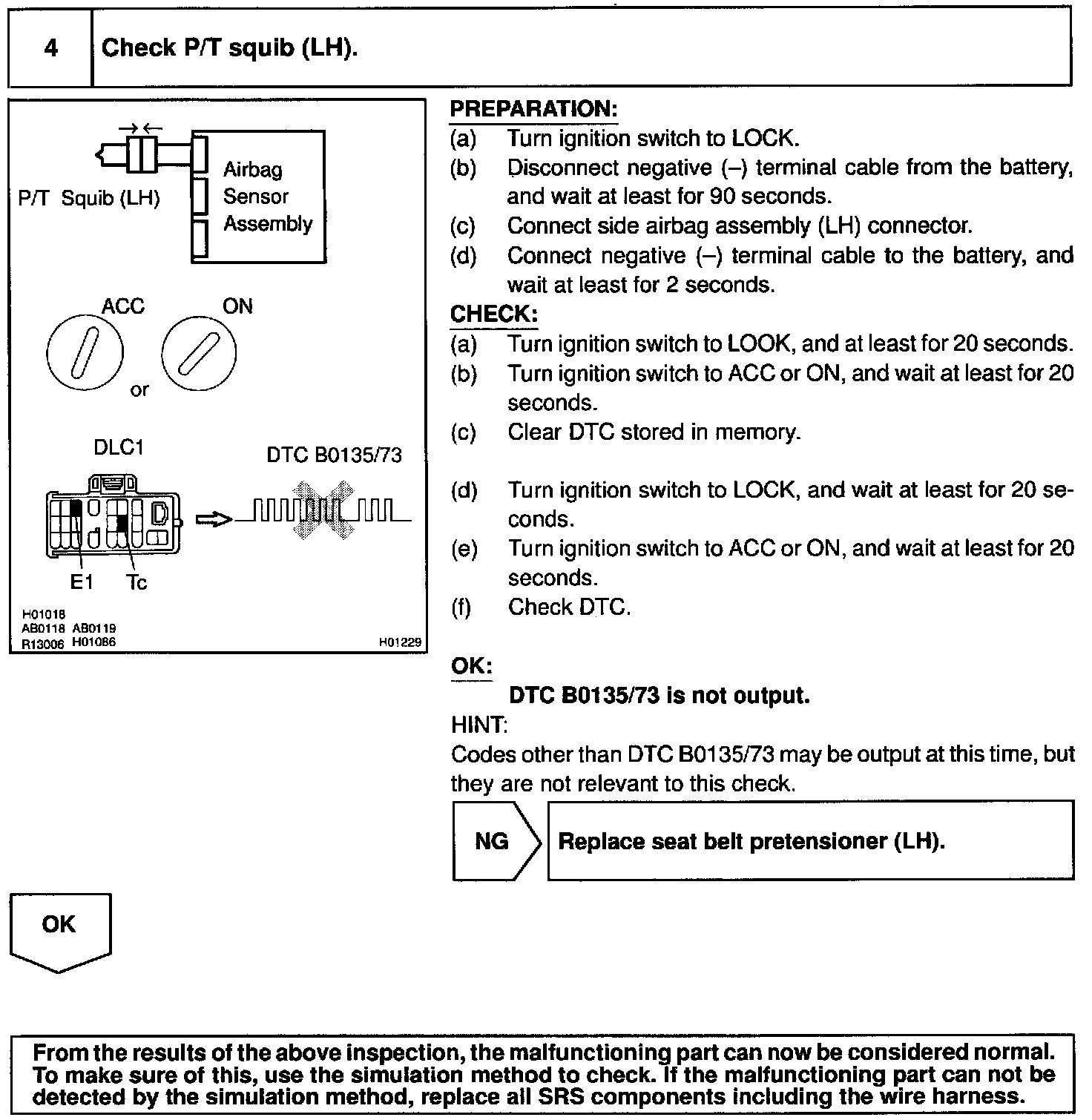

Step 4:

INSPECTION PROCEDURE
