B0133

DTC B0133 Short In LH and RH P/T Squib Circuits (to B+)

CIRCUIT DESCRIPTION
The LH and RH P/T squib circuits consist of the airbag sensor assembly and LH arid RH seat belt pretensioners.
It causes the pretensioner to activate when the pretensioner activation conditions are satisfied.
DTC B0133/62 is recorded when B+ is detected in the LH and RH P/T squib circuits.





DETECTING CONDITION

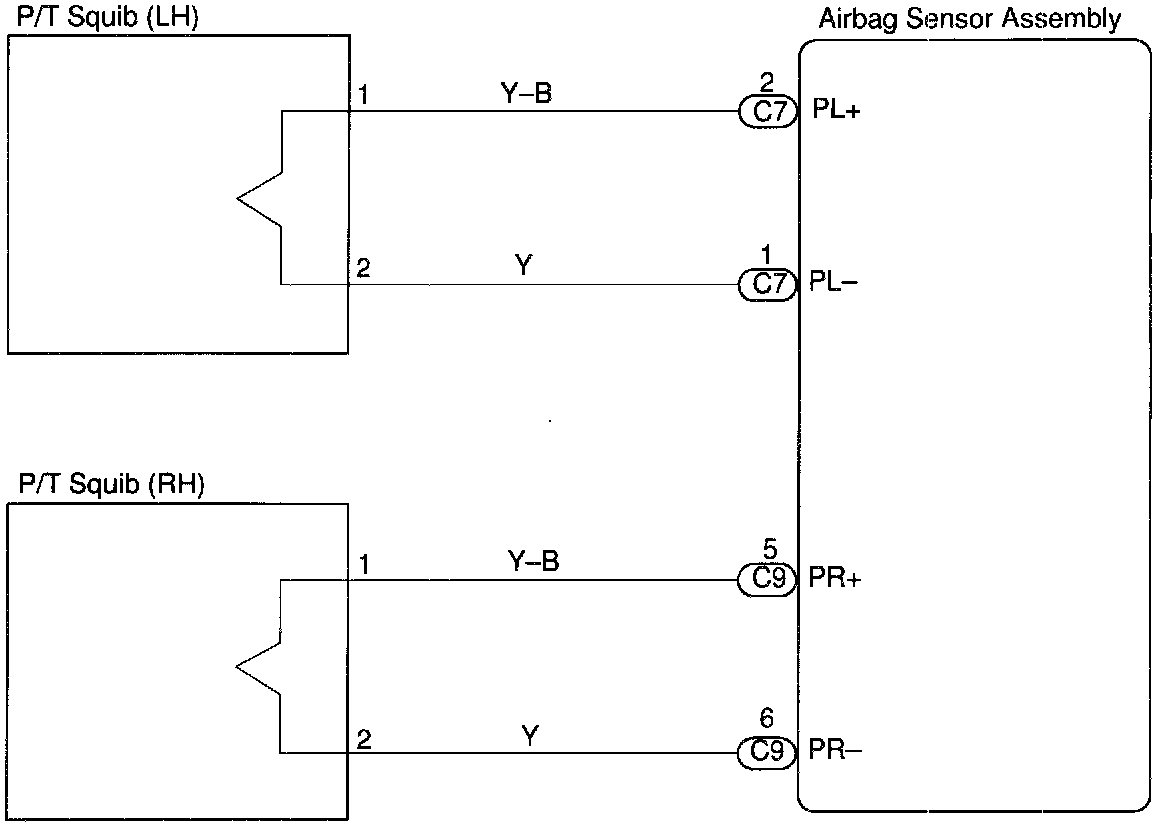

WIRING DIAGRAM

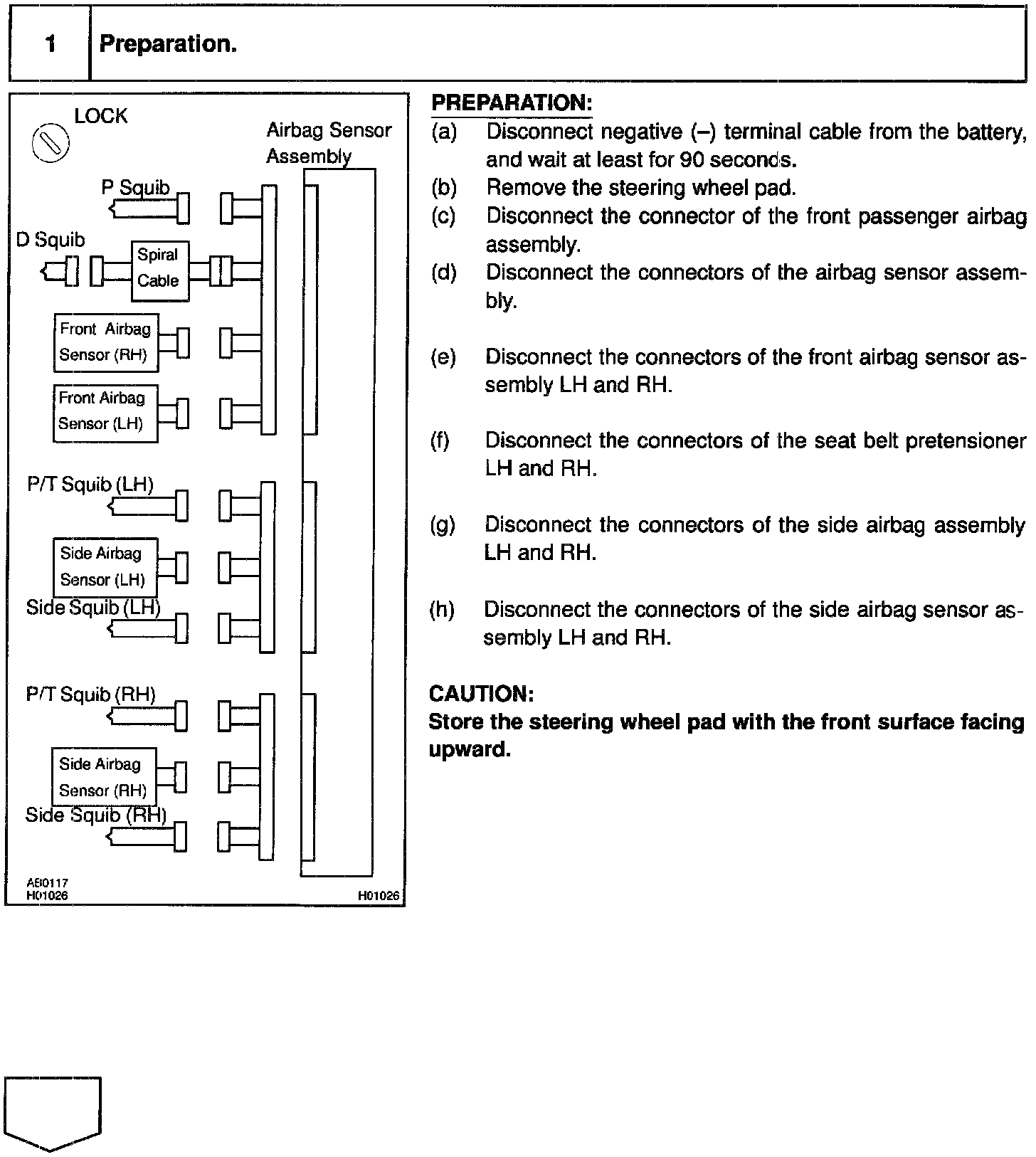

Step 1:

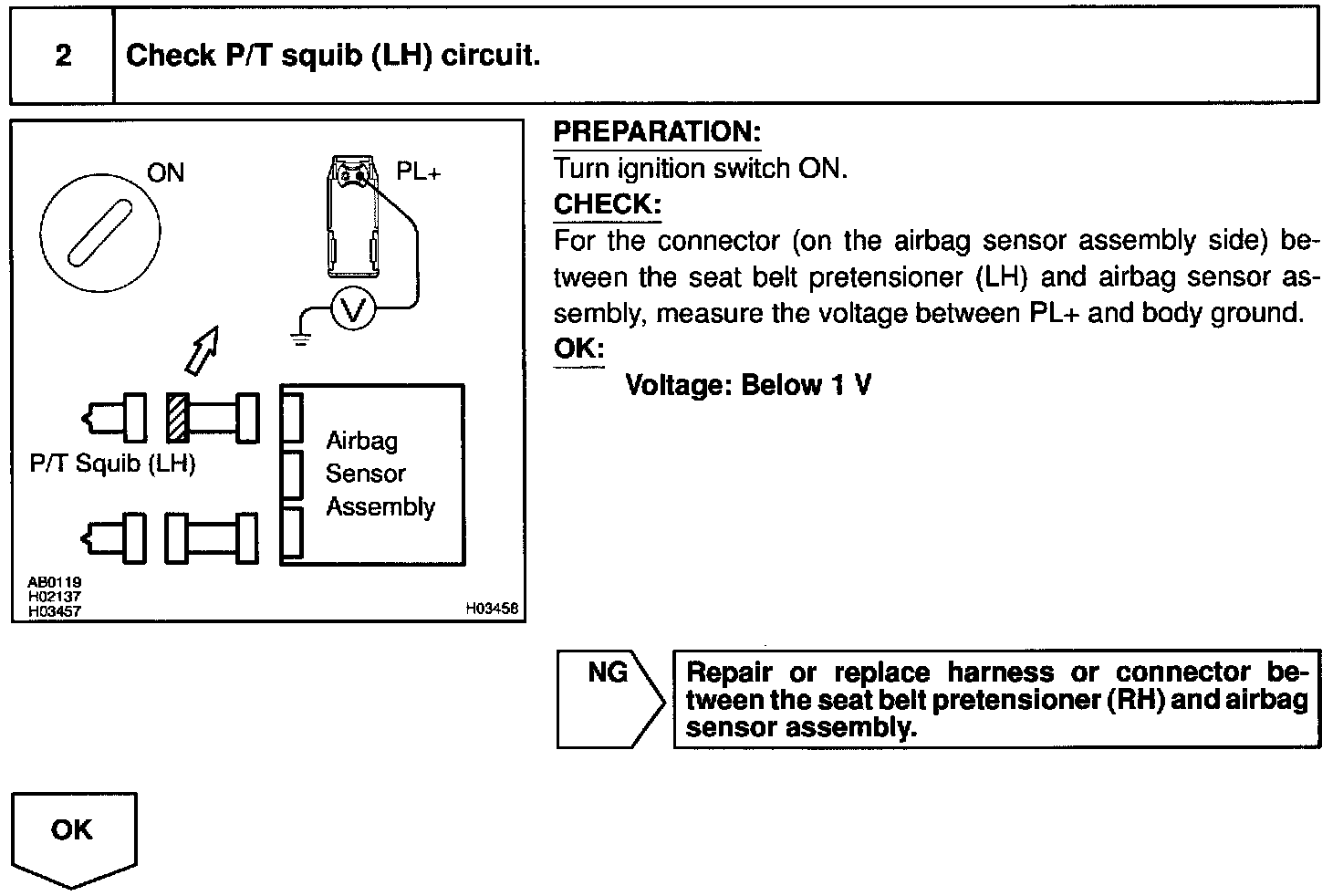

Step 2:

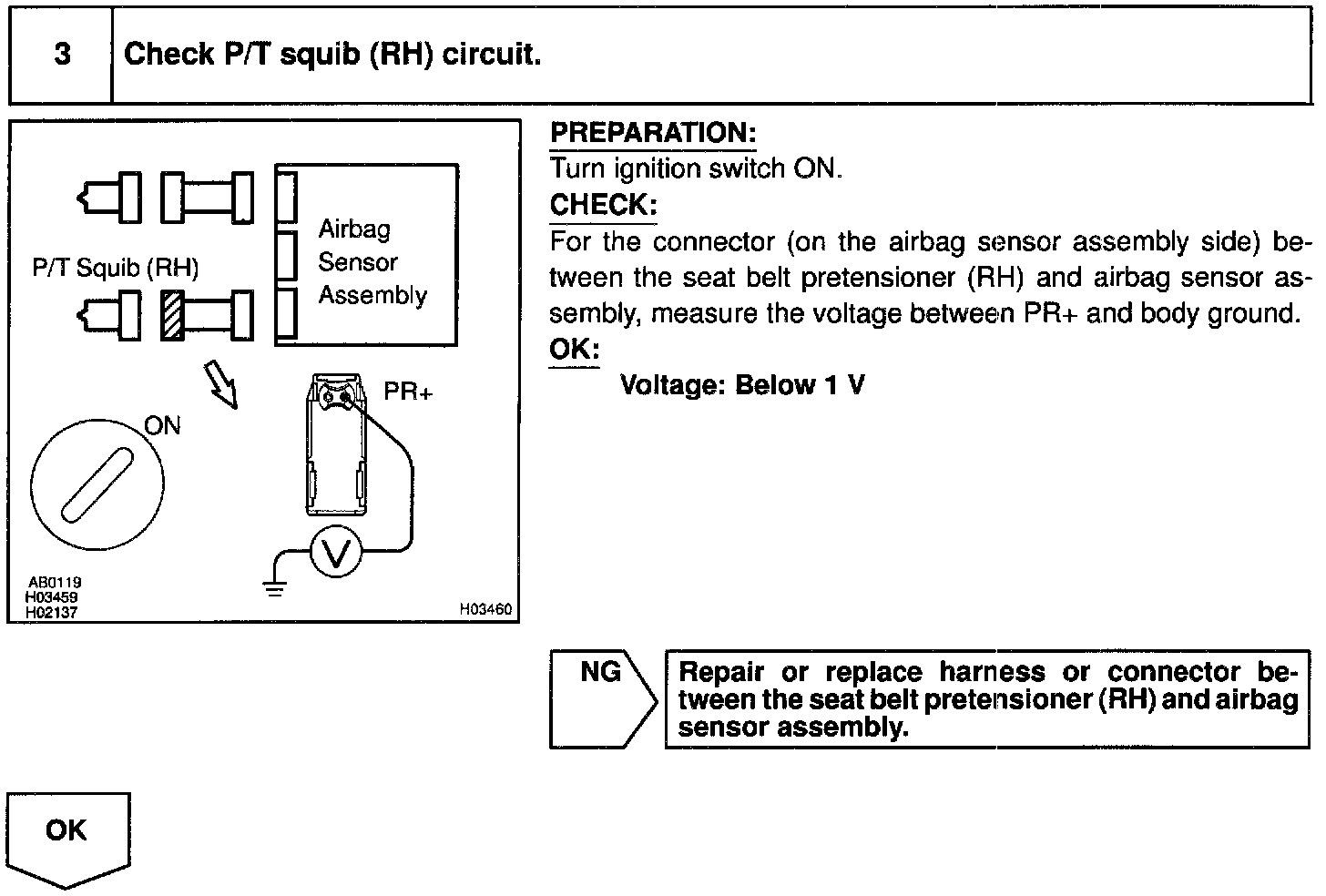

Step 3:

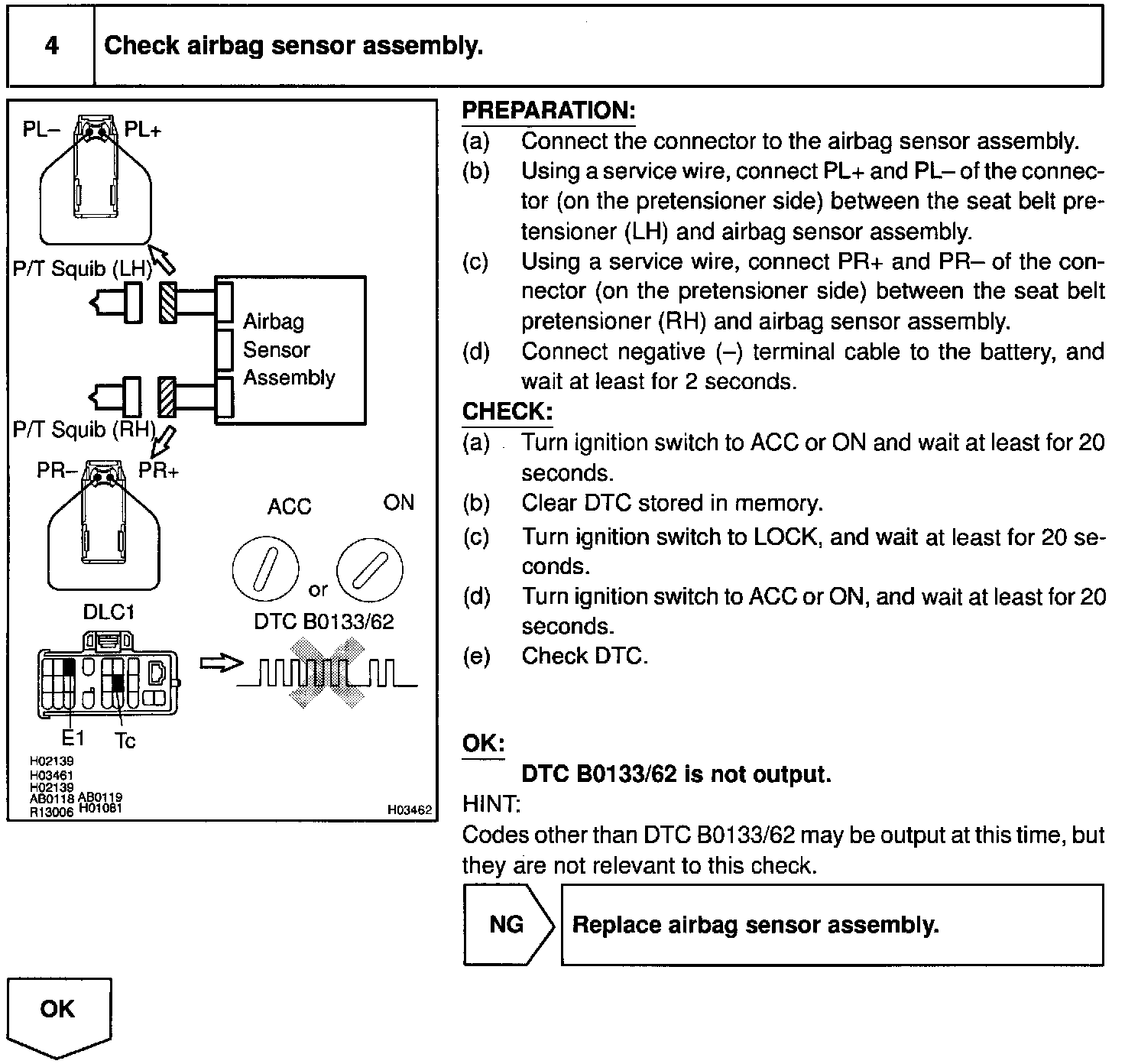

Step 4:

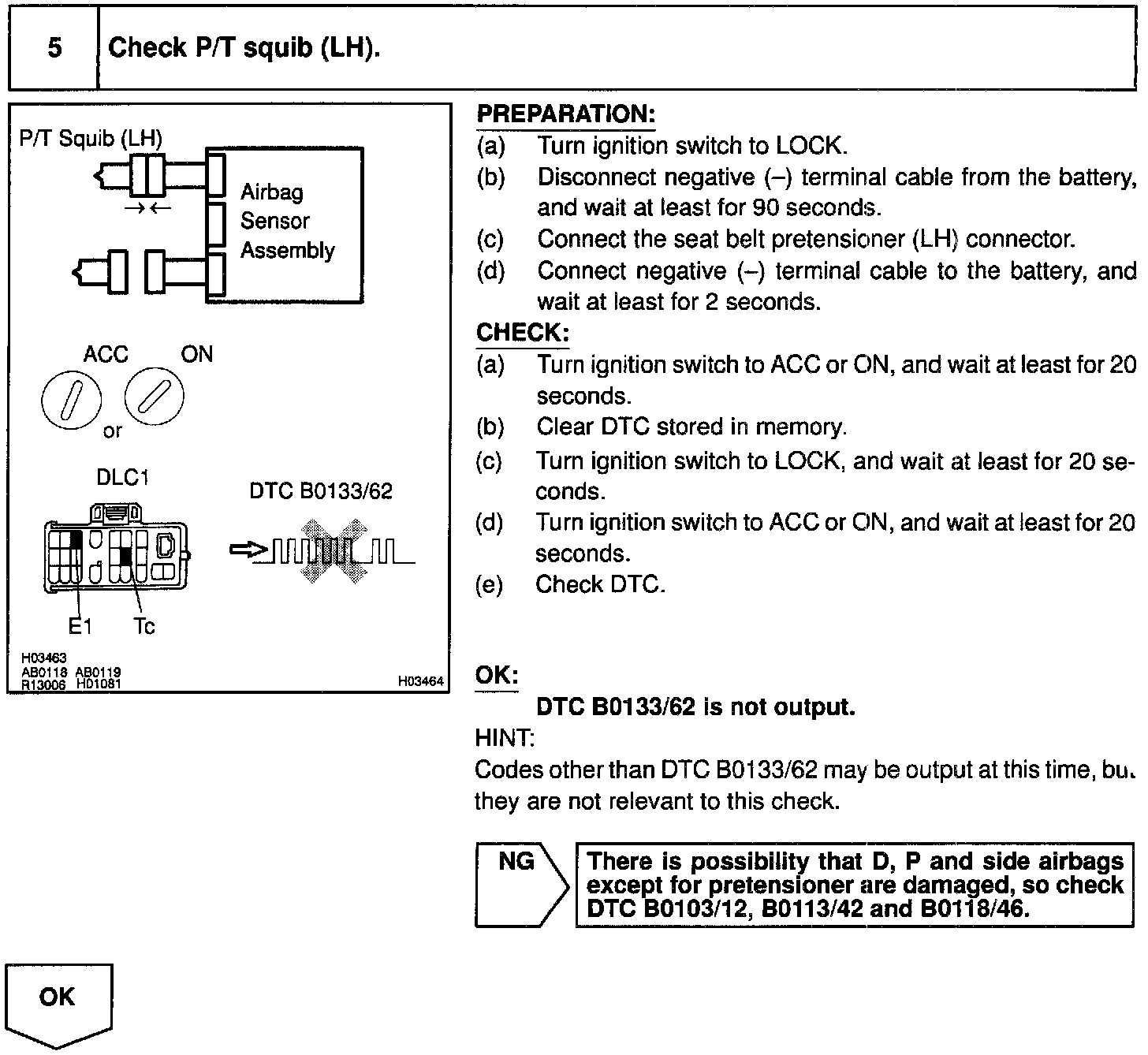

Step 5:

Step 6:

INSPECTION PROCEDURE
