B0131

DTC B0131 Open In P/T Squib (RH) Circuit

CIRCUIT DESCRIPTION
The P/T squib circuit (RH) consists of the airbag sensor assembly and seat belt pretensioner (RH). It causes the pretensioner to activate when the pretensioner activation conditions are satisfied.
DTC B0131/64 is recorded when an open is detected in the P/T squib (RH) circuit.

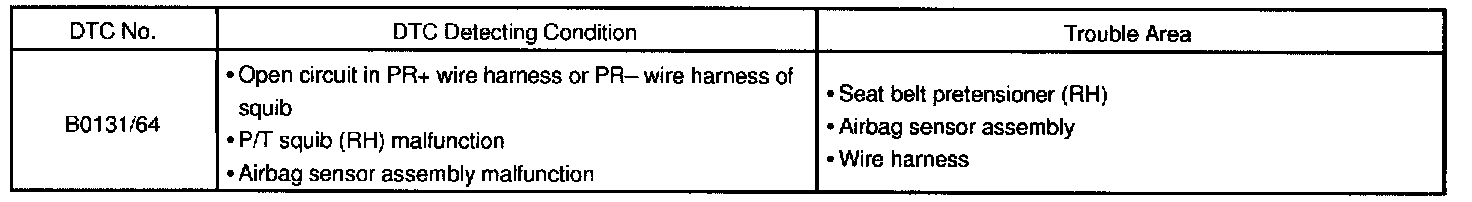

DETECTING CONDITION

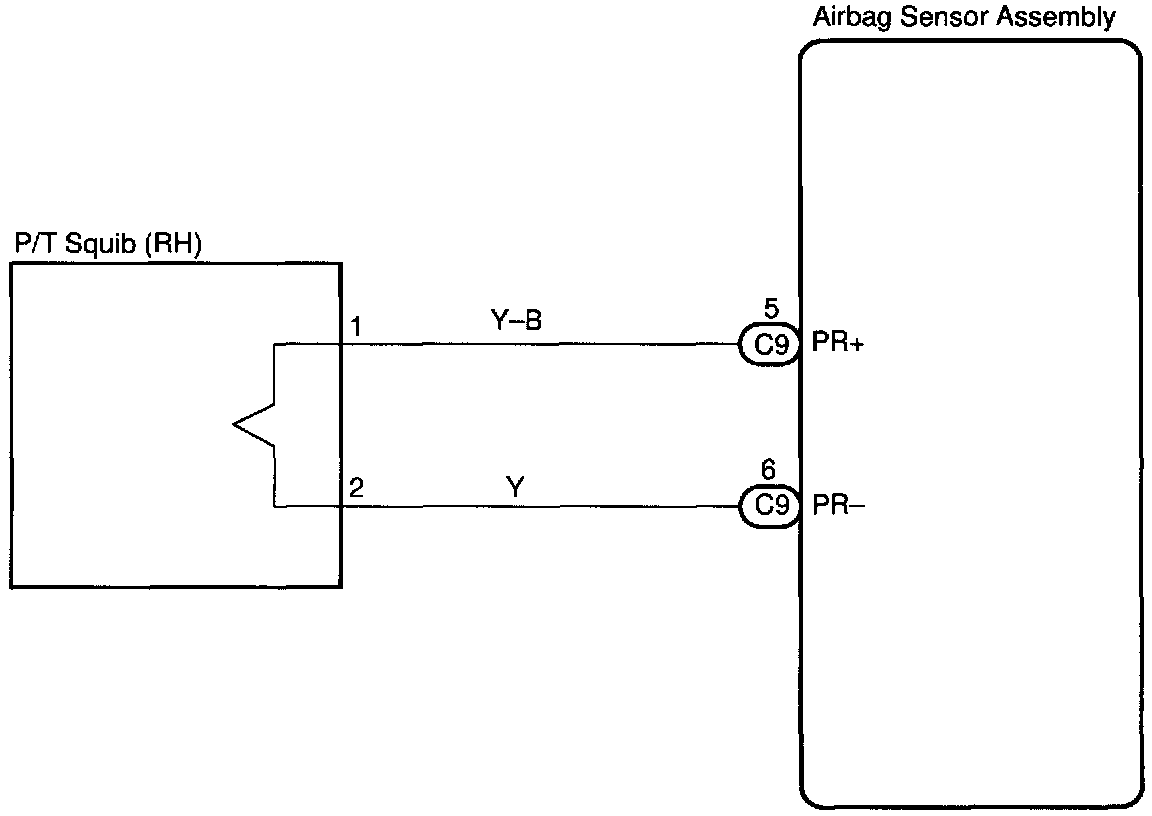

WIRING DIAGRAM

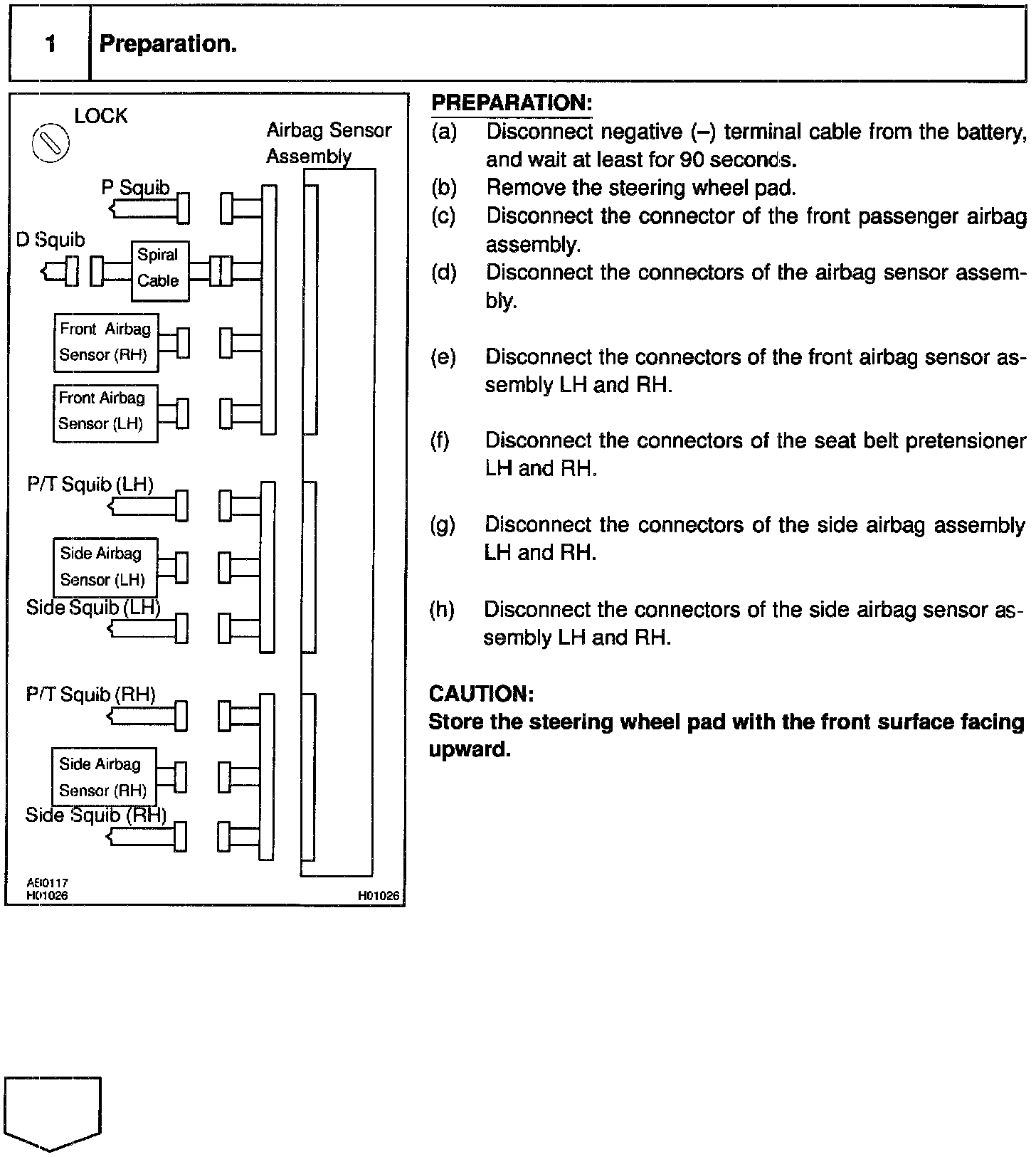

Step 1:

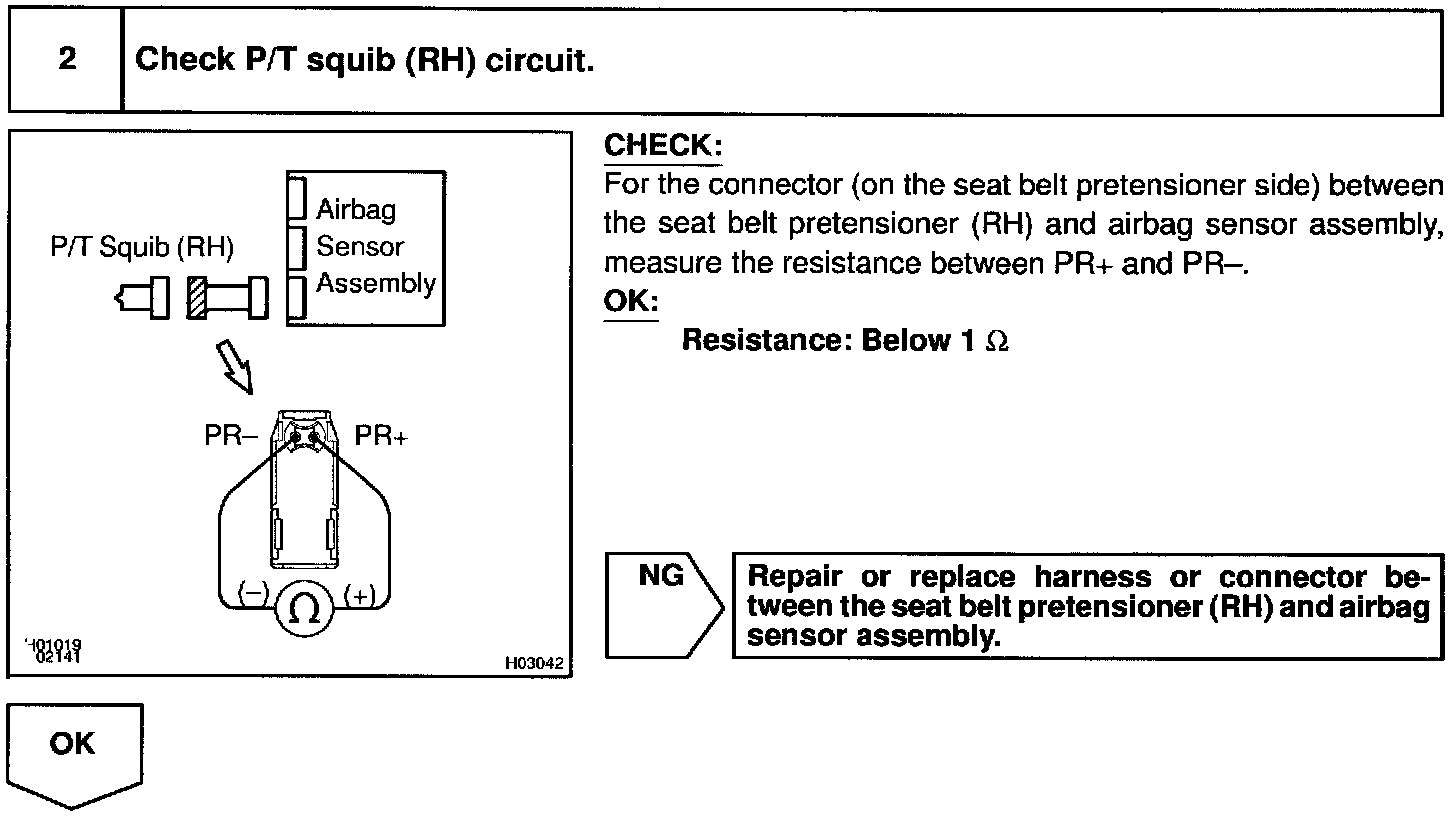

Step 2:

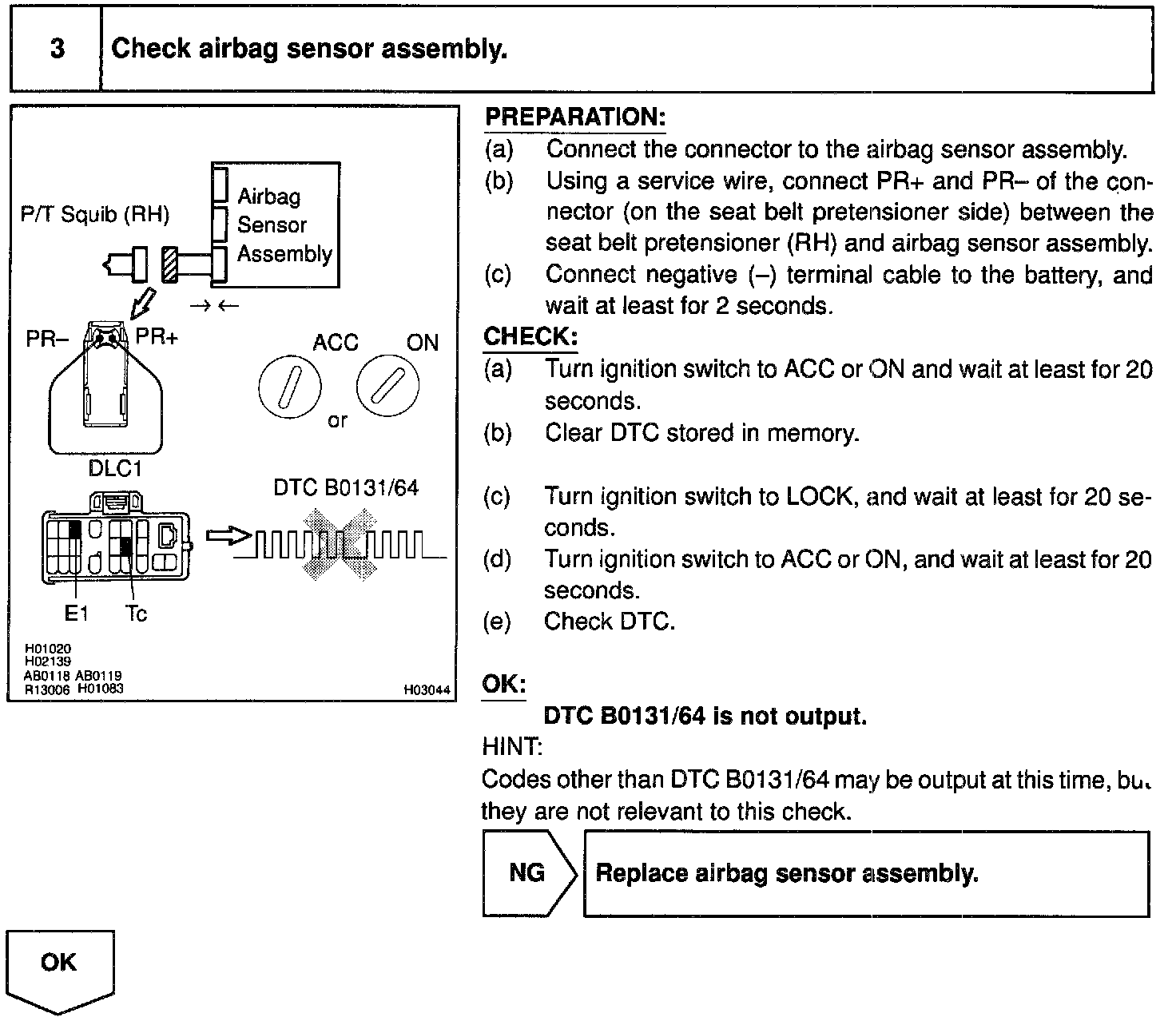

Step 3:

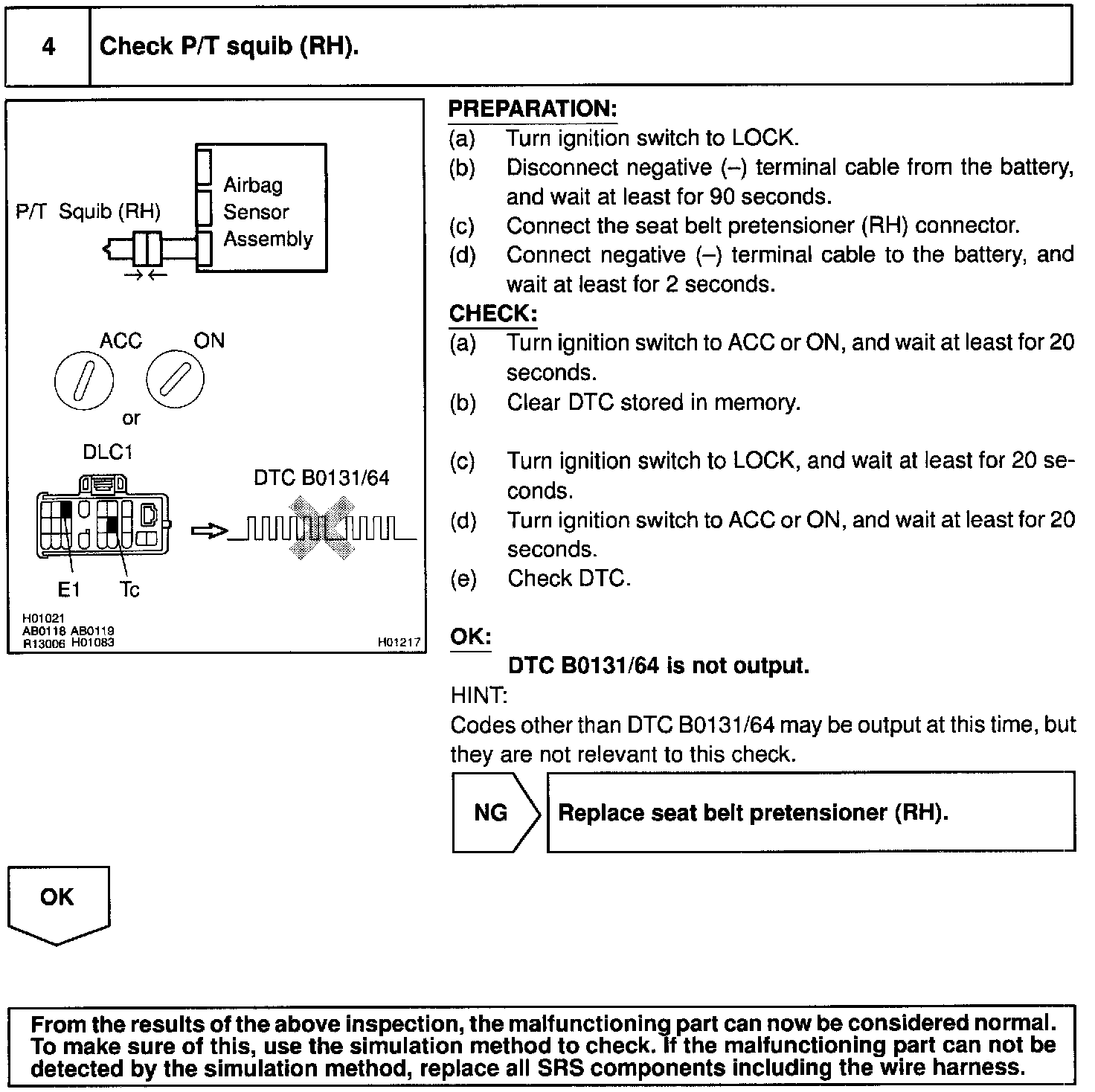

Step 4:

INSPECTION PROCEDURE
