DTC B0130 Short In P/T Squib (RH) Circuit

CIRCUIT DESCRIPTION
The PIT squib (RH) circuit consists of the airbag sensor assembly and side airbag assembly (RH). It causes the pretensioner to activate when the pretensioner activation conditions are satisfied.
DTC B0130/63 is recorded when a short is detected in the P/T squib (RH) circuit.





DETECTING CONDITION





WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

Step 4:

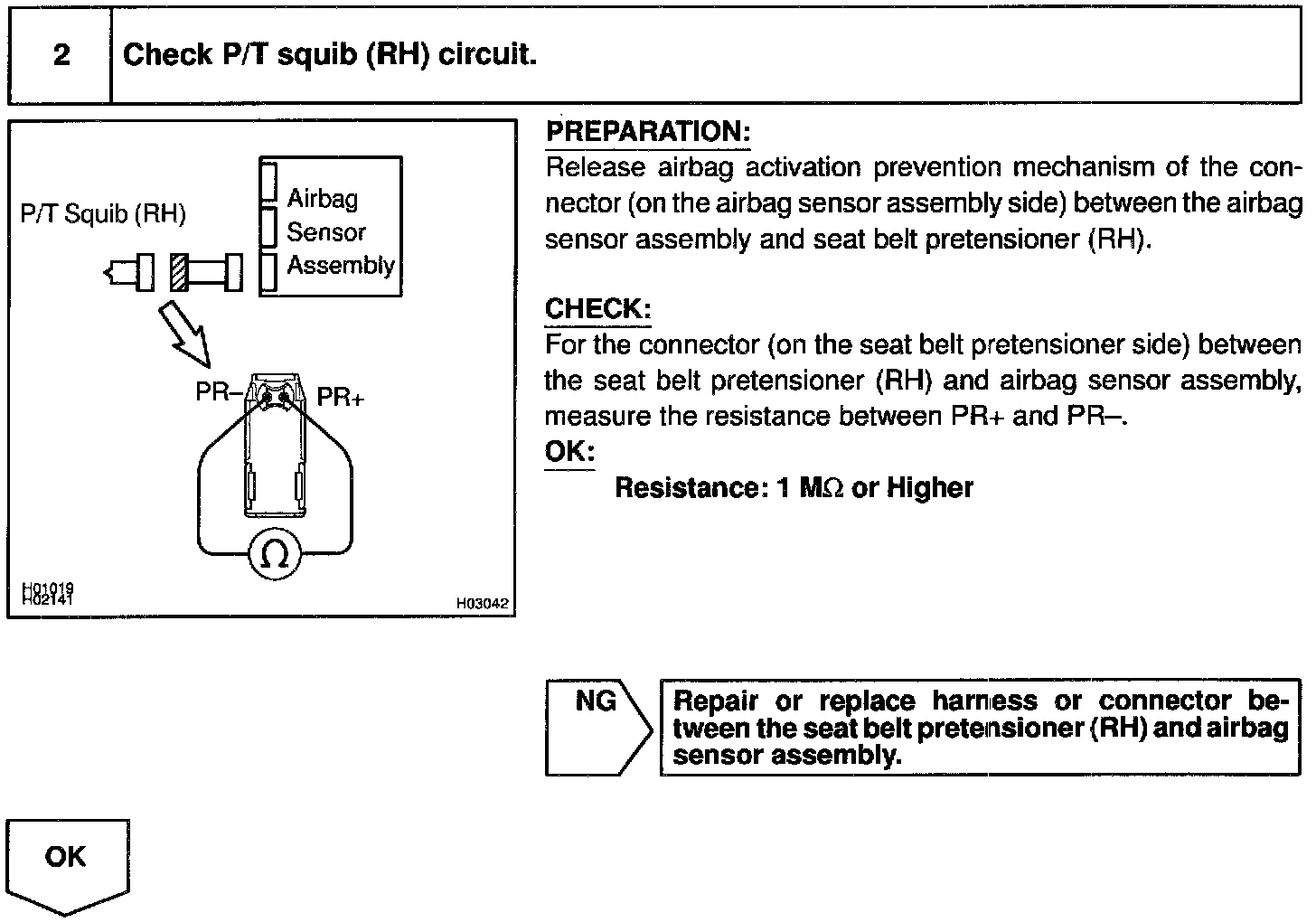

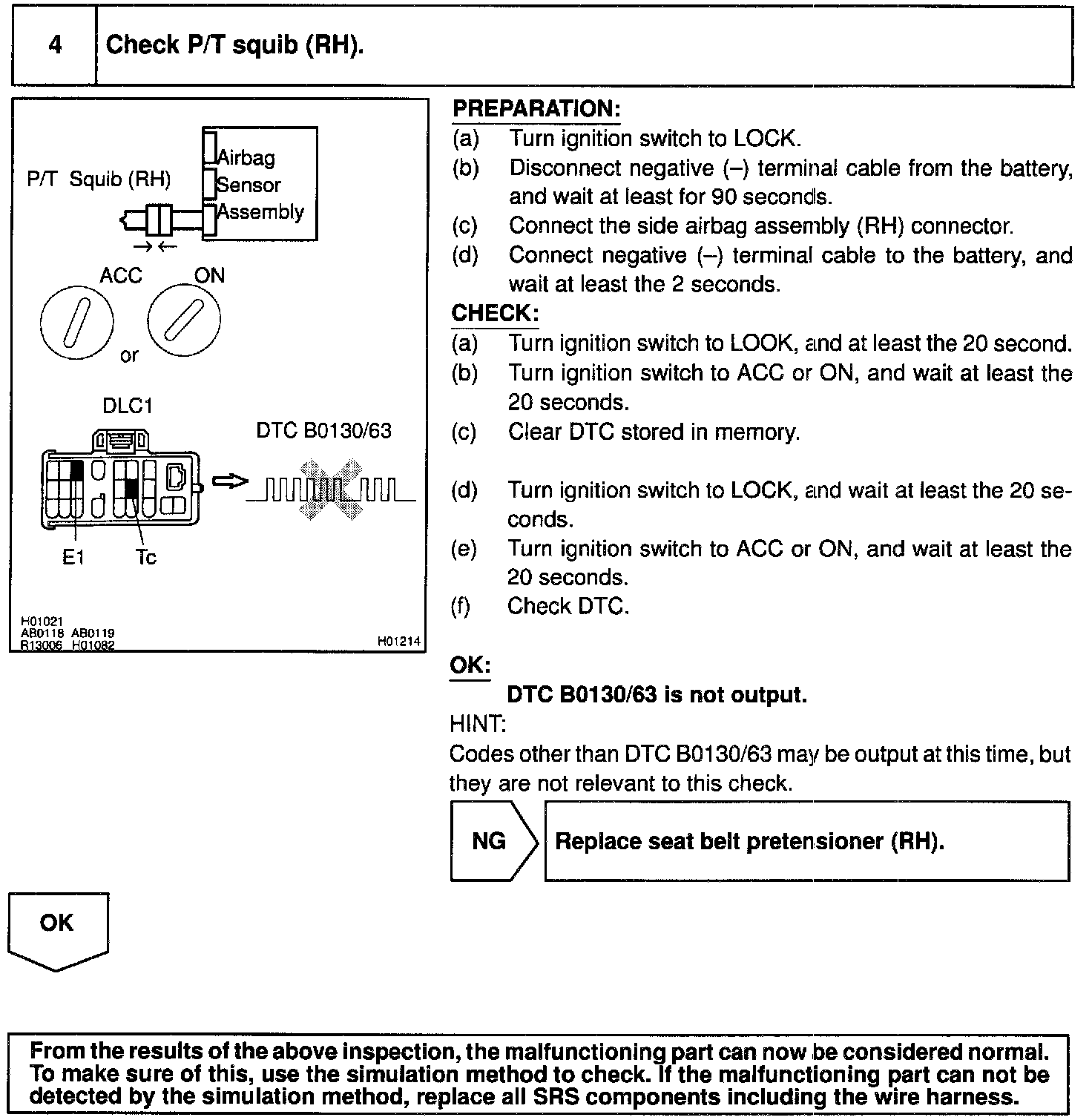

INSPECTION PROCEDURE
