B0116

DTC B0116 Open In Side Squib (LH) Circuit

CIRCUIT DESCRIPTION
The side squib circuit consists of the airbag sensor assembly and side airbag assembly (LH). It causes the SRS to deploy when the SRS deployment conditions are satisfied.
DTC B0116/48 is recorded when an open is detected in the side squib (LH) circuit

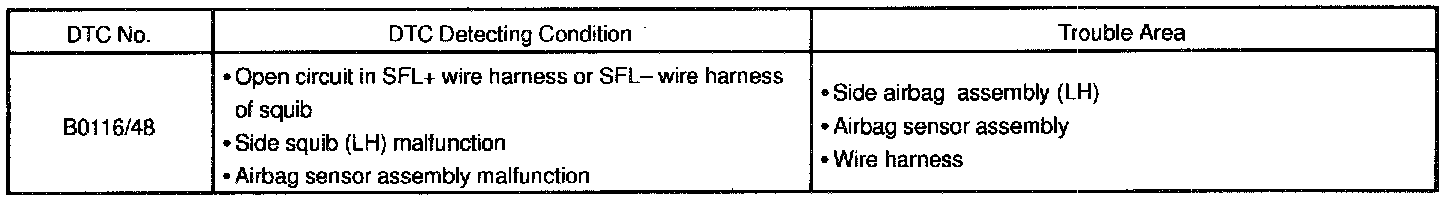

DETECTING CONDITION





WIRING DIAGRAM

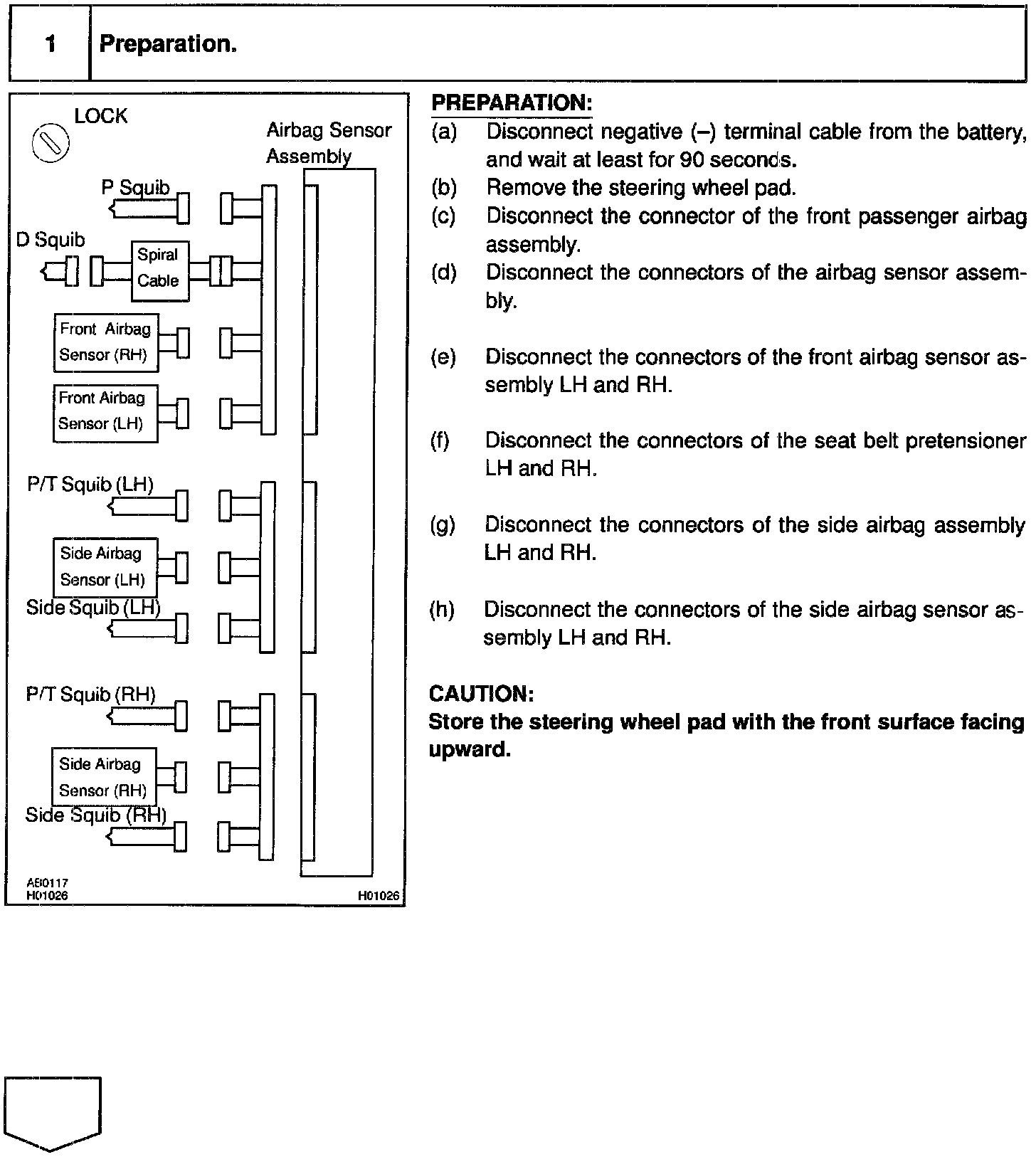

Step 1:

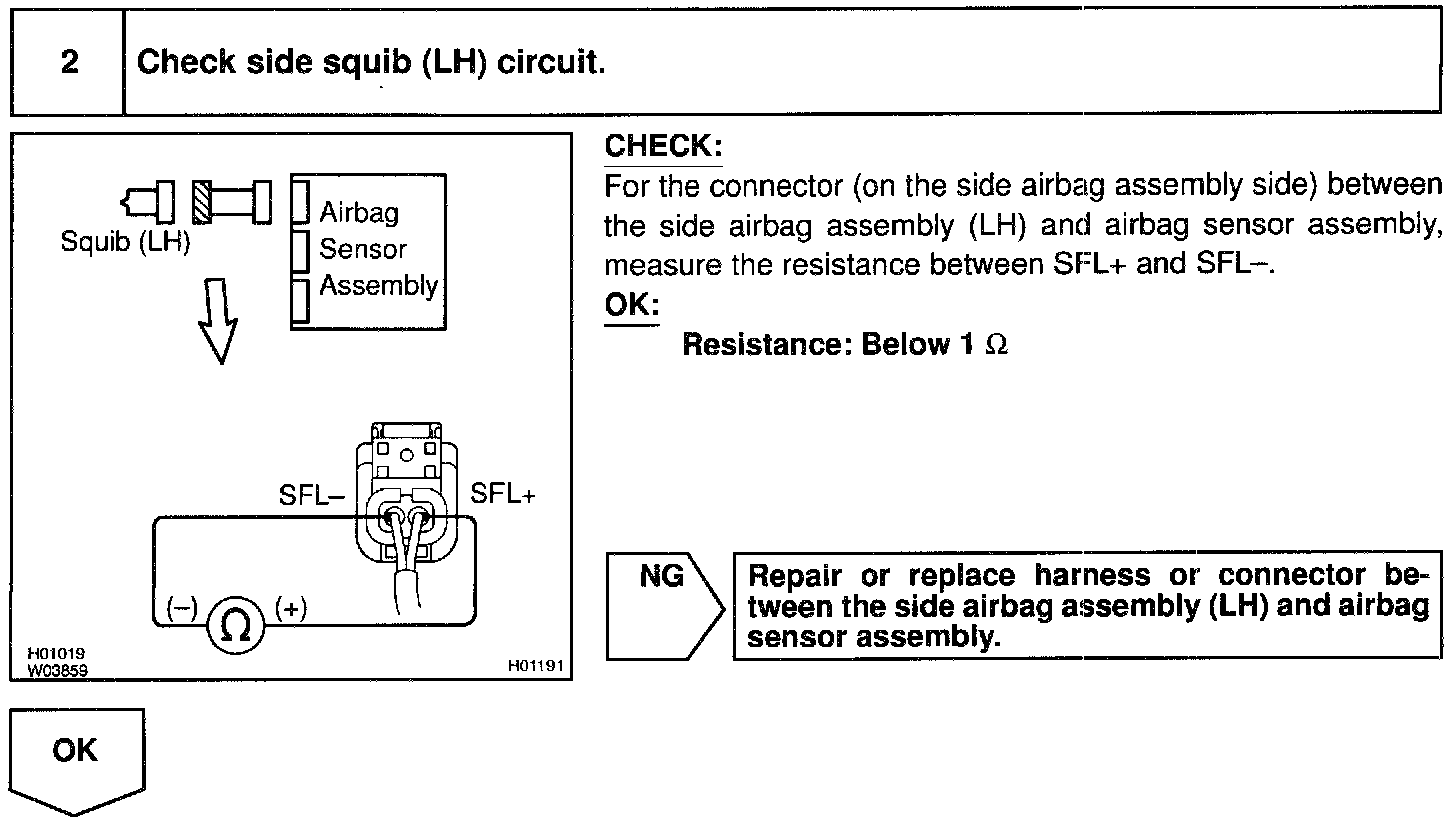

Step 2:

Step 3:

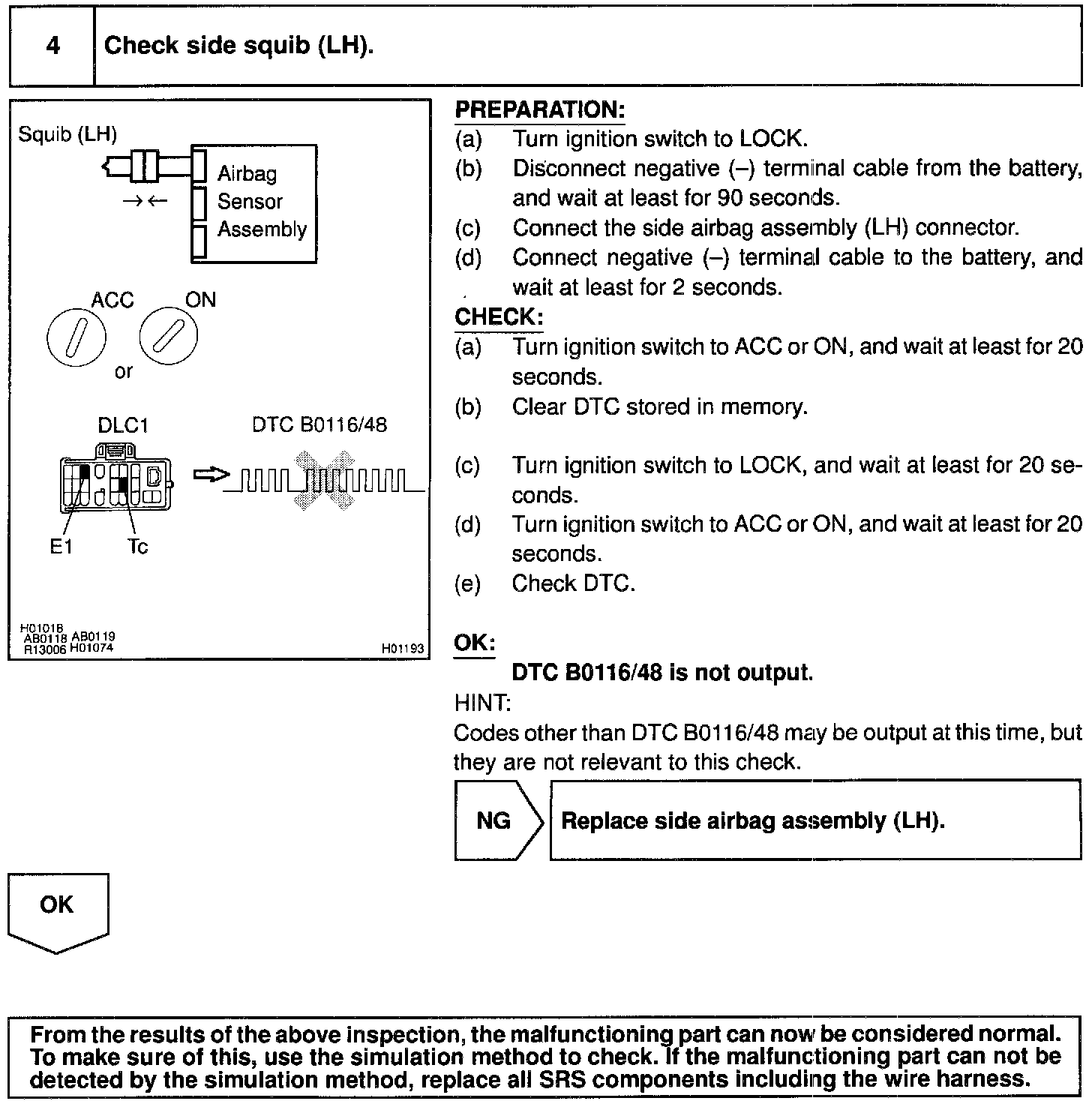

Step 4:

INSPECTION PROCEDURE
