B0110

DTC B0110 Short In Side Squib (RH) Circuit

CIRCUIT DESCRIPTION
The side squib (RH) circuit consists of the airbag sensor assembly and side airbag assembly (RH). It causes the SRS to deploy when the SRS deployment conditions are satisfied.
DTC B0110/43 is recorded when a short is detected in the side squib (RH) circuit.

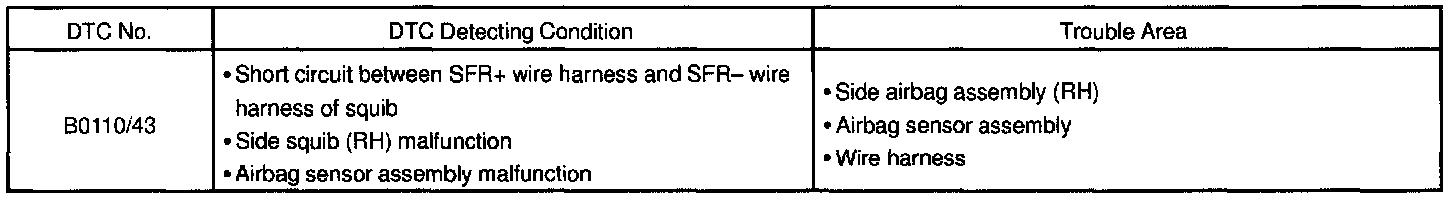

DETECTING CONDITION





WIRING DIAGRAM

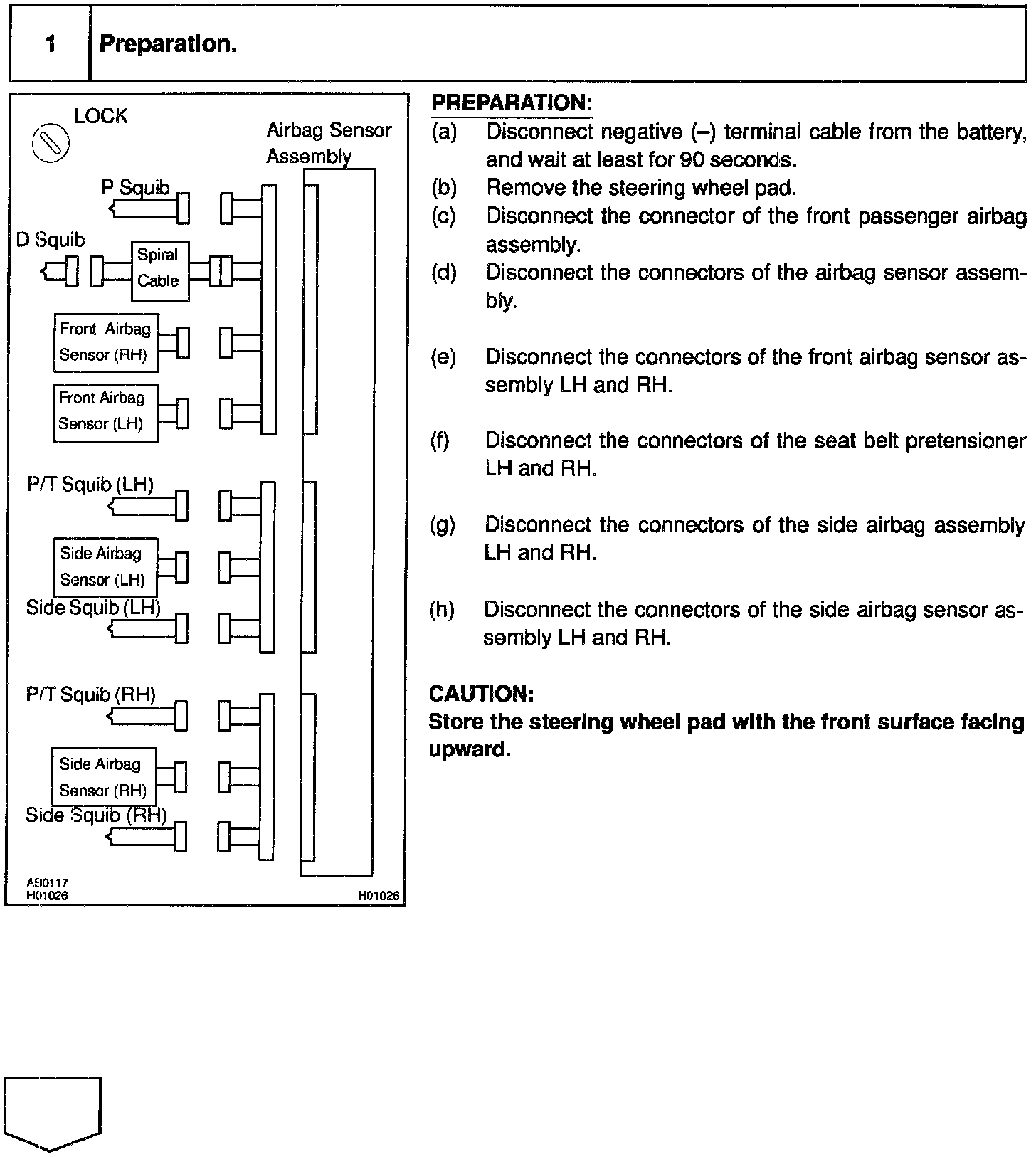

Step 1:

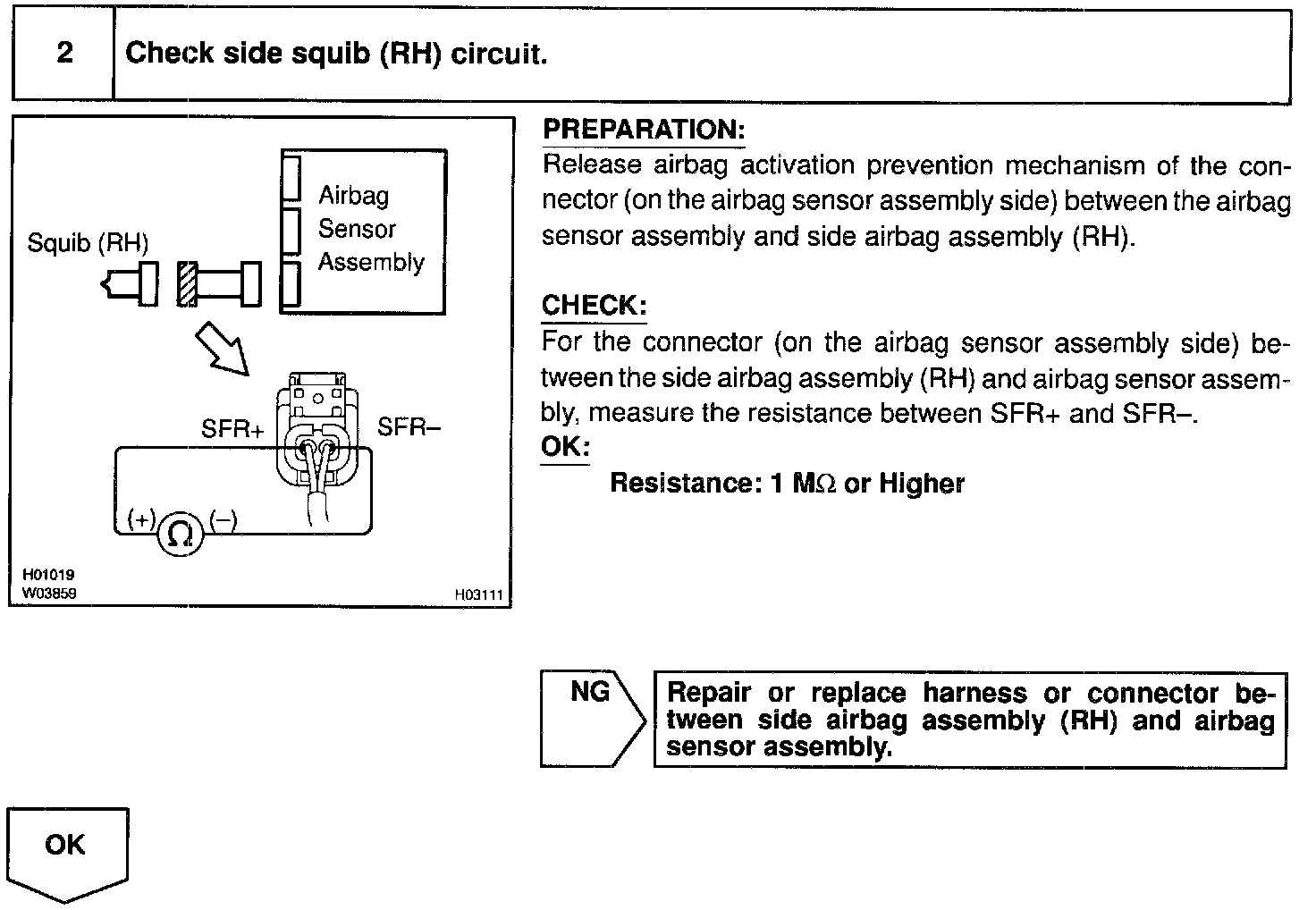

Step 2:

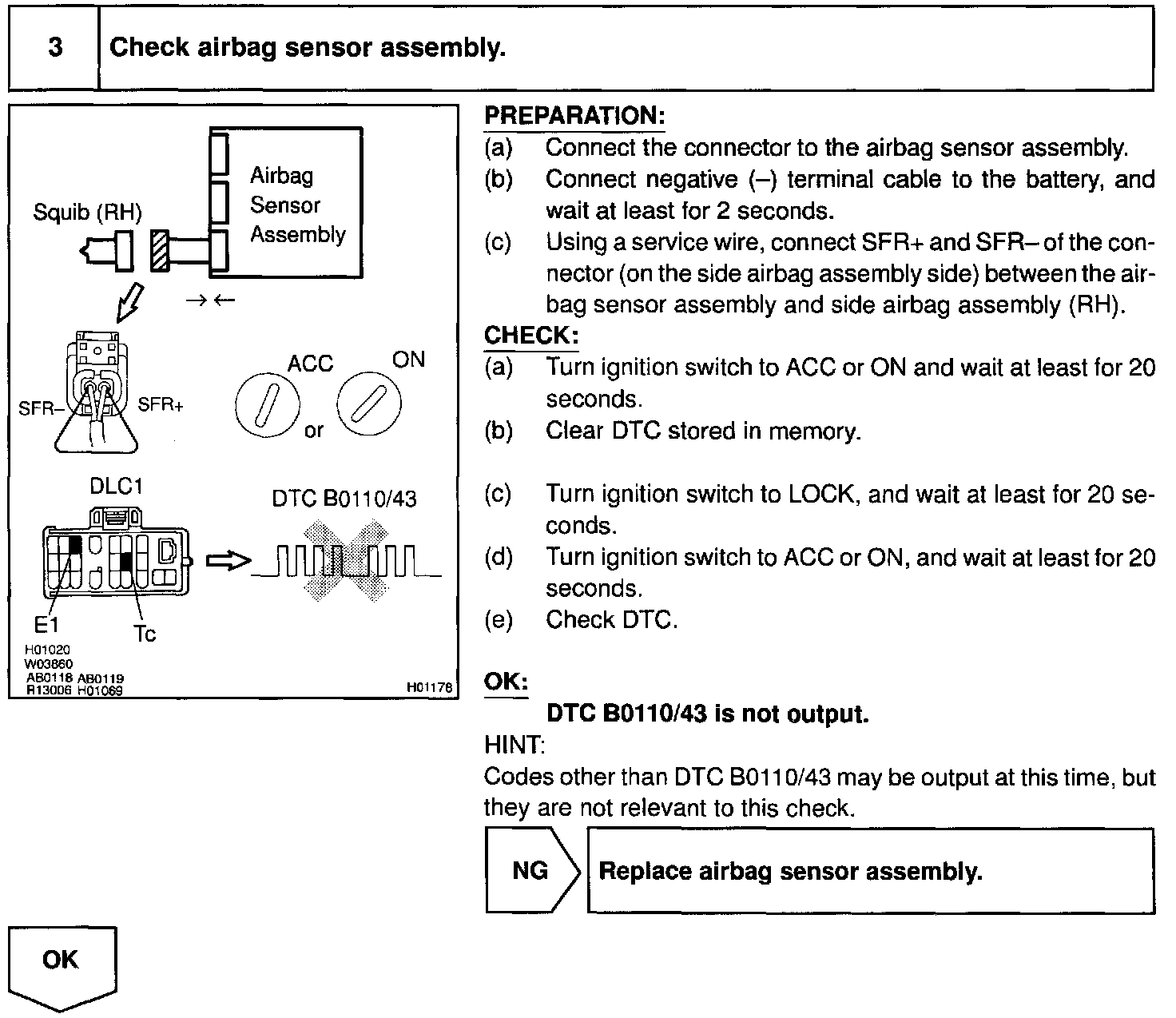

Step 3:

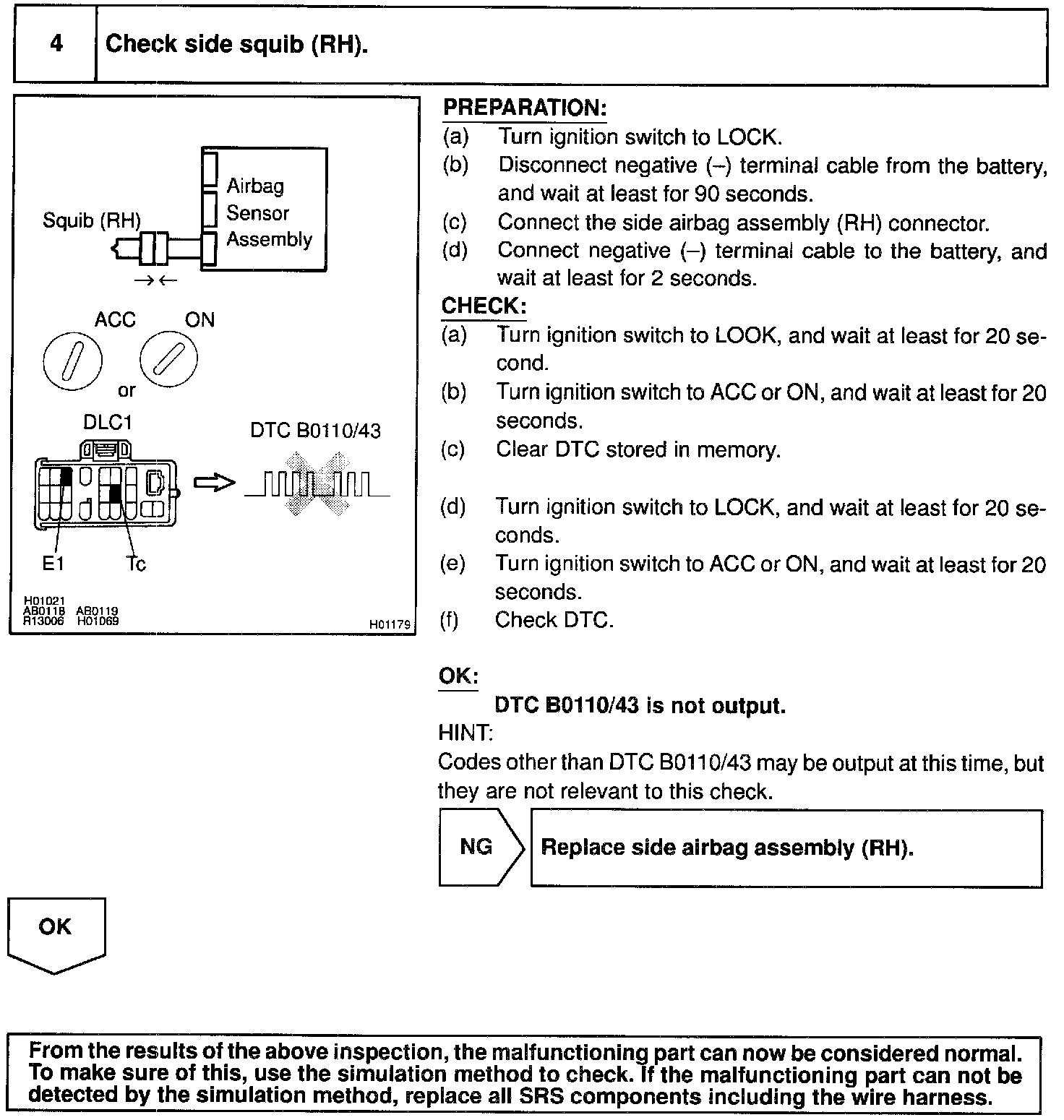

Step 4:

INSPECTION PROCEDURE
