B0105

DTC B0105 Short In P Squib Circuit

CIRCUIT DESCRIPTION
The P squib circuit consists of the airbag sensor assembly and front passenger airbag assembly. It causes the SRS to deploy when the SRS deployment conditions are satisfied.
DTC B0105/53 is recorded when a short is detected in the P squib circuit.

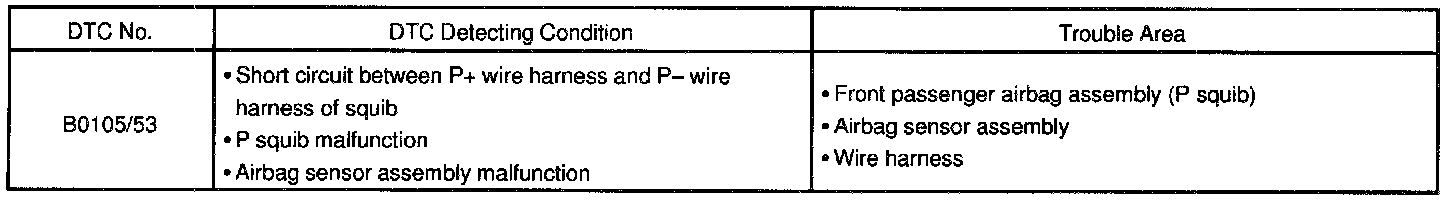

DETECTING CONDITION





WIRING DIAGRAM

Step 1:

Step 2:

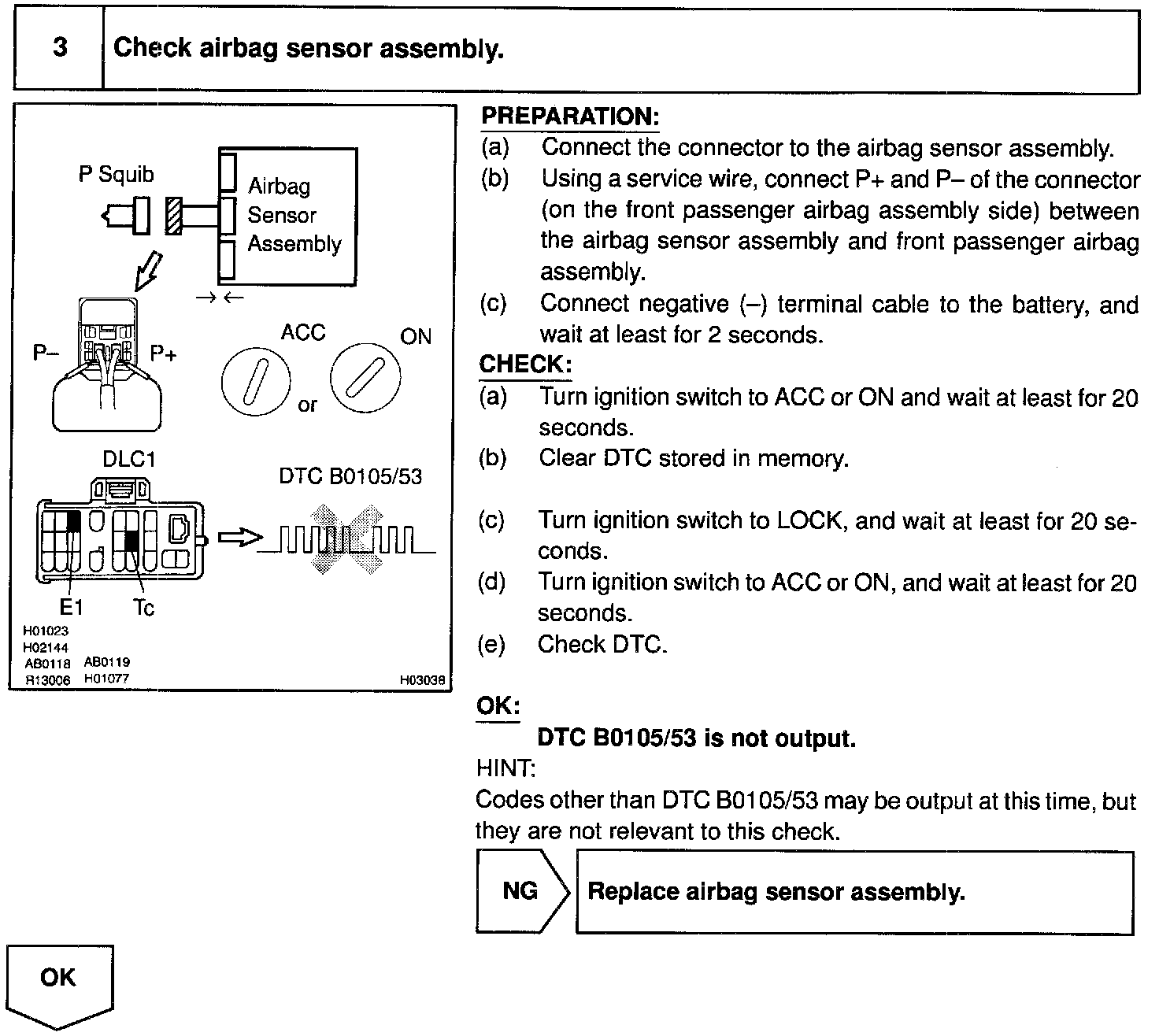

Step 3:

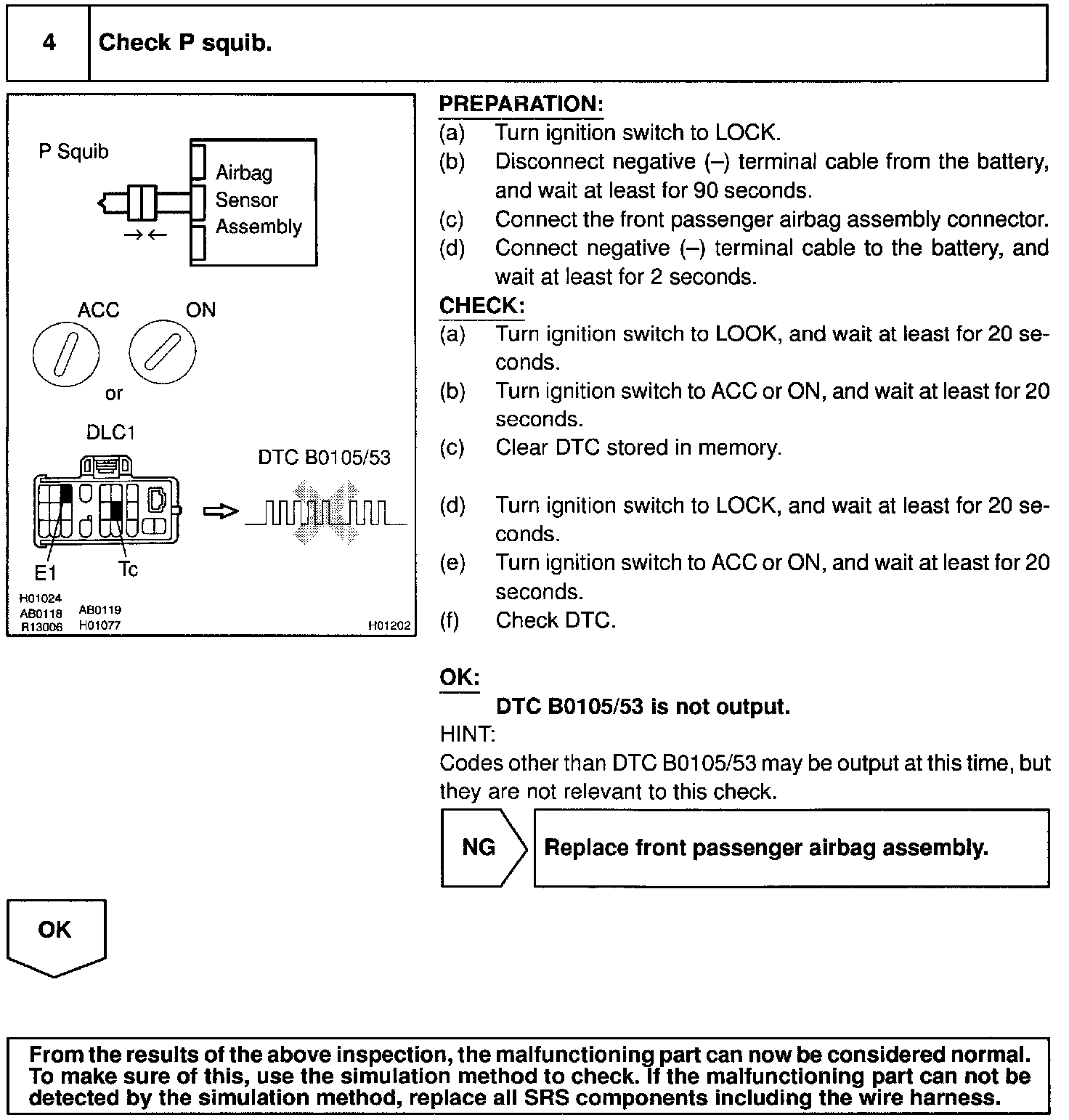

Step 4:

INSPECTION PROCEDURE
