Removal and Installation

ON-VEHICLE INSPECTION

NOTE: Before changing the starter, check these items again:
^ Connector connection
^ Accessory installation, e.g.: theft deterrent system

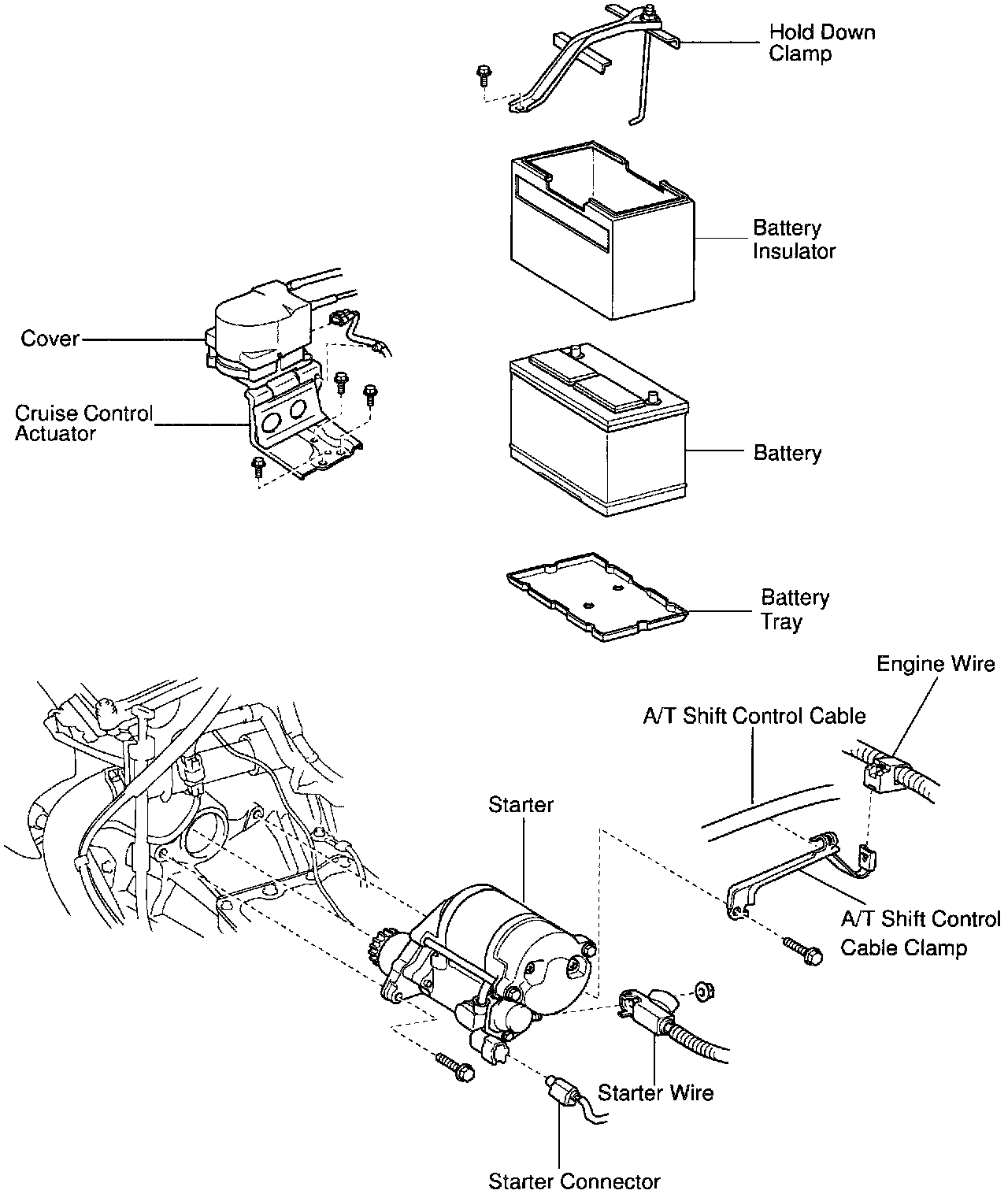

COMPONENTS

REMOVAL
1. REMOVE BATTERY AND TRAY
2. (W/ CRUISE CONTROL SYSTEM)

REMOVE CRUISE CONTROL ACTUATOR
a. Disconnect the actuator connector and clamp.
b. Remove the 3 bolts, and disconnect the actuator with the bracket.




3. REMOVE STARTER

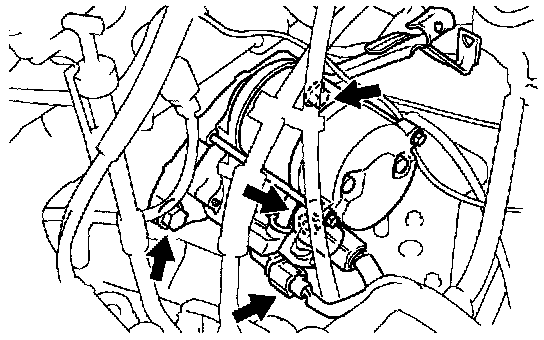

a. Disconnect the A/T shift control cable.
b. Disconnect the engine wire.
c. Disconnect the starter connector.
d. Remove the nut, and disconnect the starter wire.
e. Remove the 2 bolts, A/T shift control cable clamp and starter.
Torque: 37 N.m (380 kgf.cm, 27 ft.lbf)

INSTALLATION
Installation is in the reverse order of removal.
