Speed Sensor, Front

REMOVAL
1. Disconnect speed sensor connector.
a. Remove the fender liner.

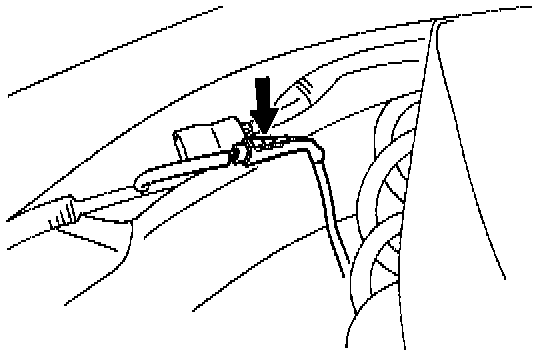

b. Disconnect the speed sensor connector.

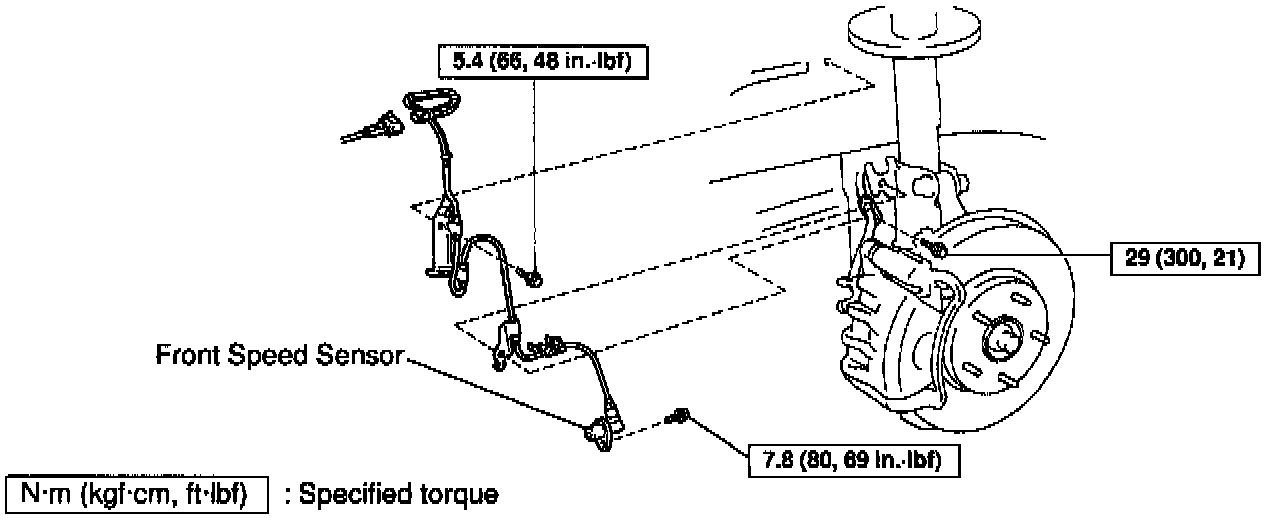

2. Remove speed sensor.
a. Remove the bolt, flexible hose and speed sensor harness clams from the shock absorber.
Torque: 29 Nm (21 ft. lbs.)
b. Remove the resin clip and clamp bolt holding the sensor harness to the body.
Torque: 5.4 Nm (48 inch lbs.)

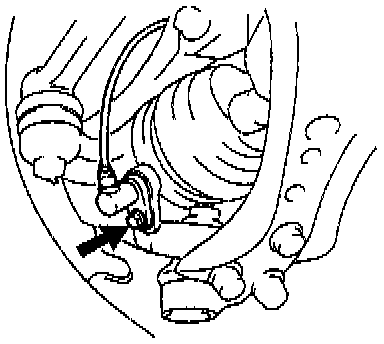

c. Remove the speed sensor from the steering knuckle.
Torque: 7.8 Nm (69 inch lbs.)

INSTALLATION
Installation is in the reverse order of removal. After installation, check speed sensor signal.
