Fuel Pump Relay: Testing and Inspection

INSPECTION

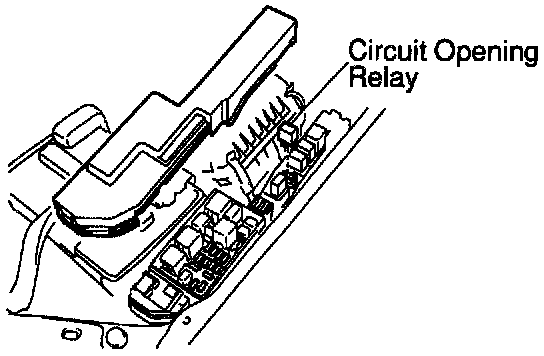

1. REMOVE CIRCUIT OPENING RELAY (Marking: CIR OPN)

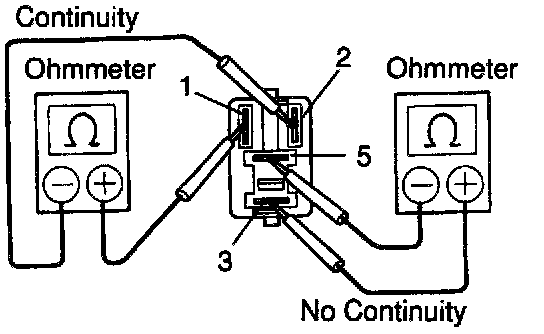

2. INSPECT CIRCUIT OPENING RELAY CONTINUITY
(a) Using an ohmmeter, check that there is continuity between terminals 1 and 2.
If there is no continuity, replace the relay.
(b) Check that there is no continuity between terminals 3 and 5.
If there is continuity, replace the relay.

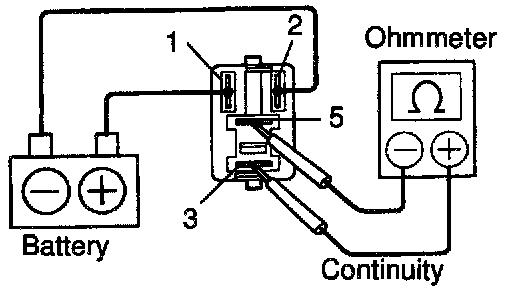

3. INSPECT CIRCUIT OPENING RELAY OPERATION
(a) Apply battery voltage across terminals 1 and 2.
(b) Using an ohmmeter, check that there is continuity between terminals 3 and 5.
If there is no continuity, replace the relay.
4. REINSTALL CIRCUIT OPENING RELAY
