Air Flow Meter/Sensor: Service and Repair

REMOVAL

REMOVE MAF METER
(a) Disconnect the MAF meter connector.

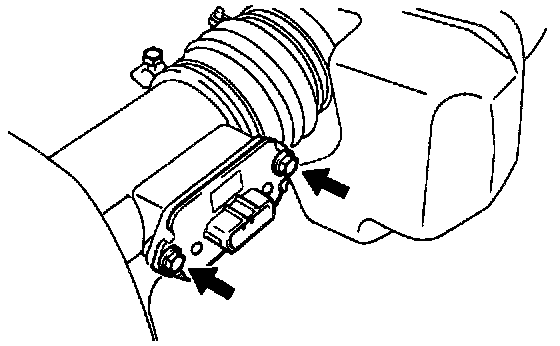

(b) Remove the 2 bolts, MAF meter and gasket.

HINT: At the time of installation, please refer to the following items. Use a new gasket.

INSTALLATION
Installation is in the reverse order of removal.
