Bank 1 Sensor 2

INSPECTION

INSPECT HEATER RESISTANCE OF HEATED OXYGEN SENSOR (Bank 1 Sensor 2)
(a) Remove the driver's seat.
(b) Take out the floor carpet.
(c) Disconnect the oxygen sensor connector.

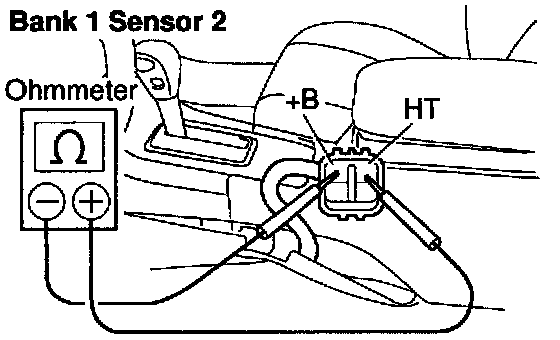

(d) Using an ohmmeter, measure the resistance between the terminals +B and HT.

Resistance: 11-16 ohms at 20° C (68° F)
If the resistance is not as specified, replace the sensor.

Torque: 44 N.m (440 kgf.cm, 31 ft.lbf)

(e) Reconnect the oxygen sensor connector.
(f) Reinstall the floor carpet.
(g) Reinstall the driver's seat.
