Daytime Running Lamp Relay: Testing and Inspection

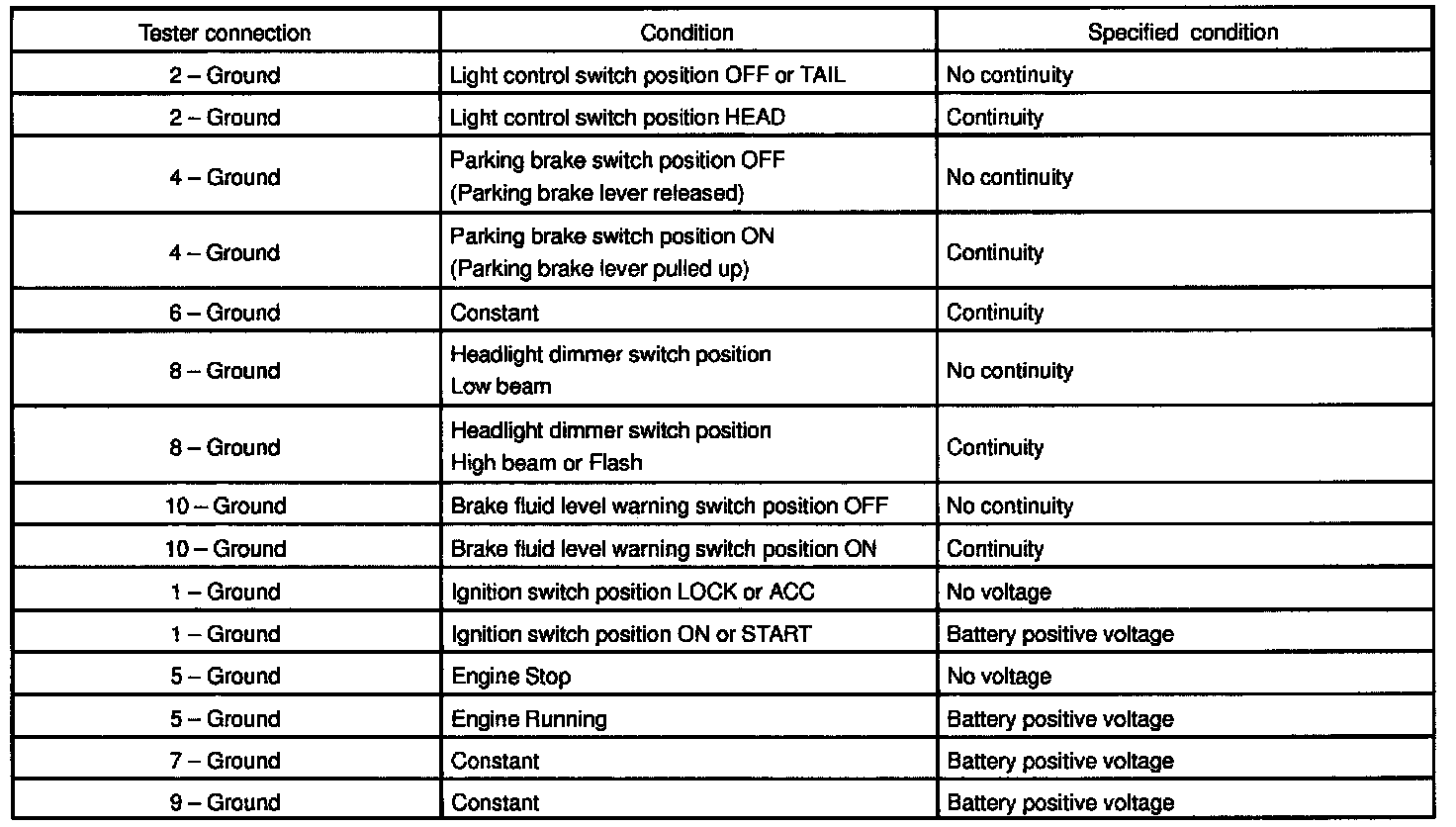

INSPECT DAYTIME RUNNING LIGHT RELAY CIRCUIT







Disconnect the connector from the relay and inspect the connector on the wire harness side.
If circuit is as specified, try replacing the relay with a new one. If circuit is not as specified, inspect the circuits connected to other parts.







INSPECT DAYTIME RUNNING LIGHT NO.3 RELAY CONTINUITY
If continuity is not as specified, replace the relay.

INSPECT DAYTIME RUNNING LIGHT NO.3 RELAY CIRCUIT







INSPECT DAYTIME RUNNING LIGHT NO.4 RELAY CONTINUITY
If continuity is not as specified, replace the relay.

INSPECT DAYTIME RUNNING LIGHT NO.4 RELAY CIRCUIT
