Compressor Magnetic Clutch Circuit

Compressor Circuit

CIRCUIT DESCRIPTION
The A/C control assembly outputs the magnetic clutch ON signal I ECM receives this signal, it sends a signal from terminal ACT an ON, thus turning on the A/C magnetic clutch.

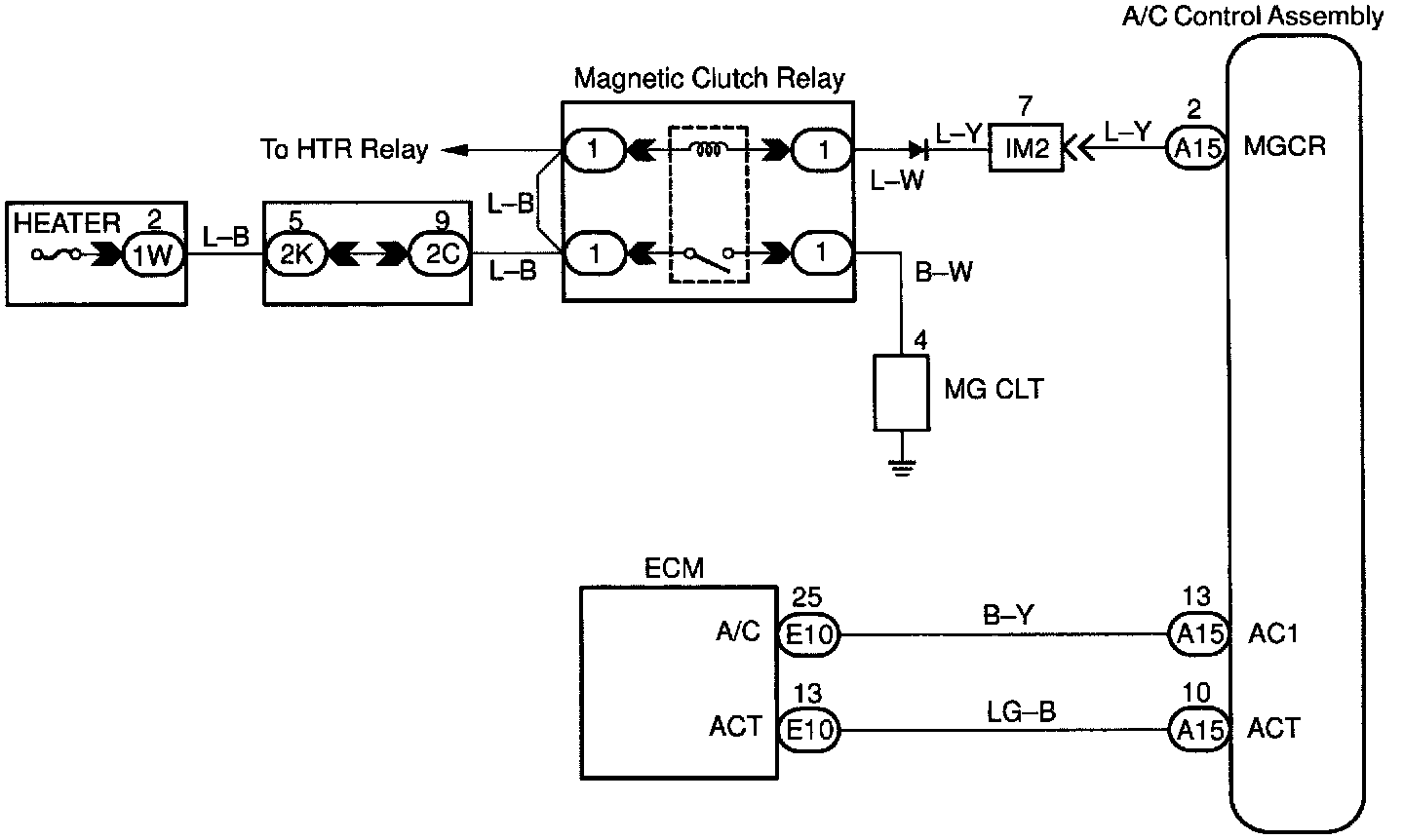

WIRING DIAGRAM

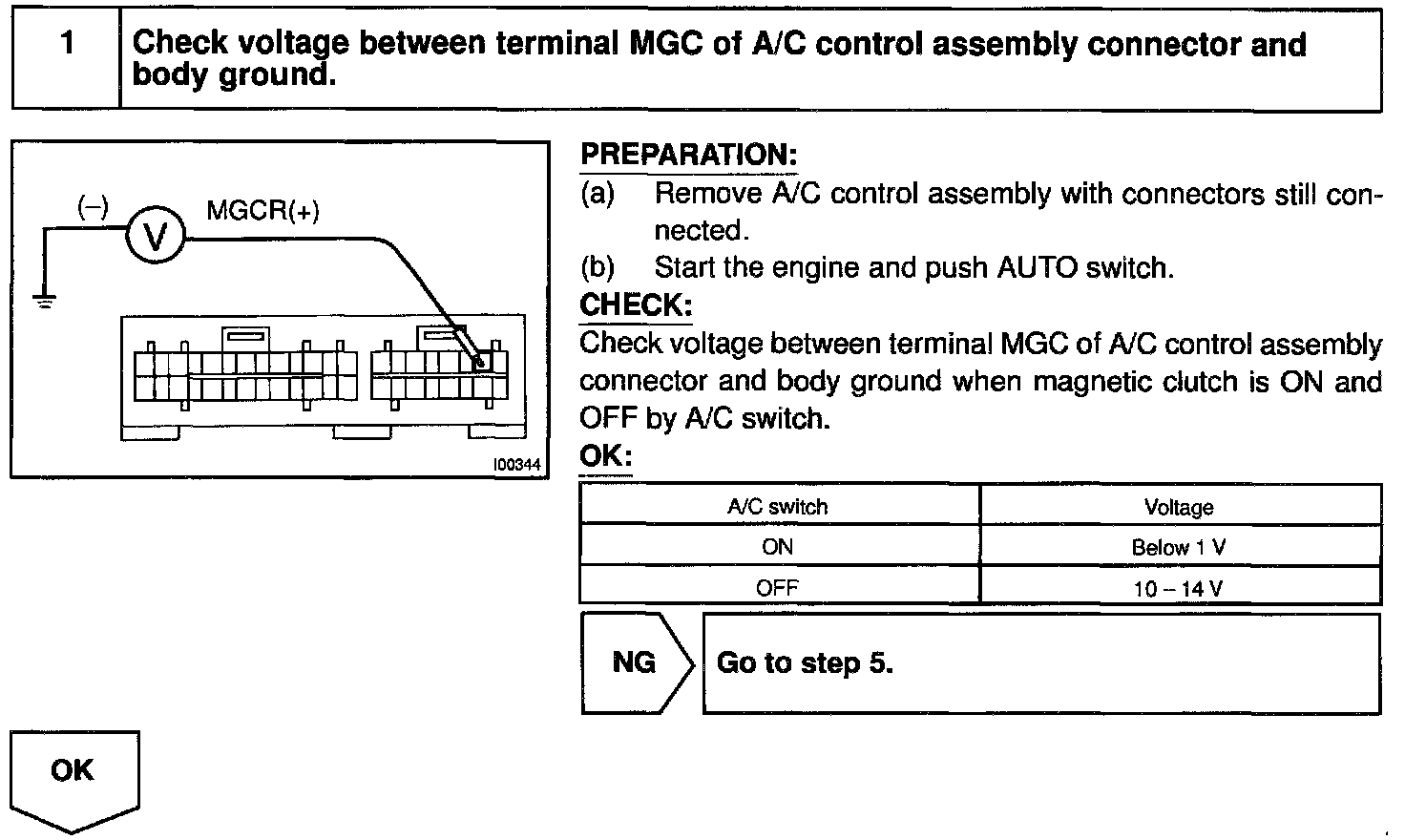

Step 1:

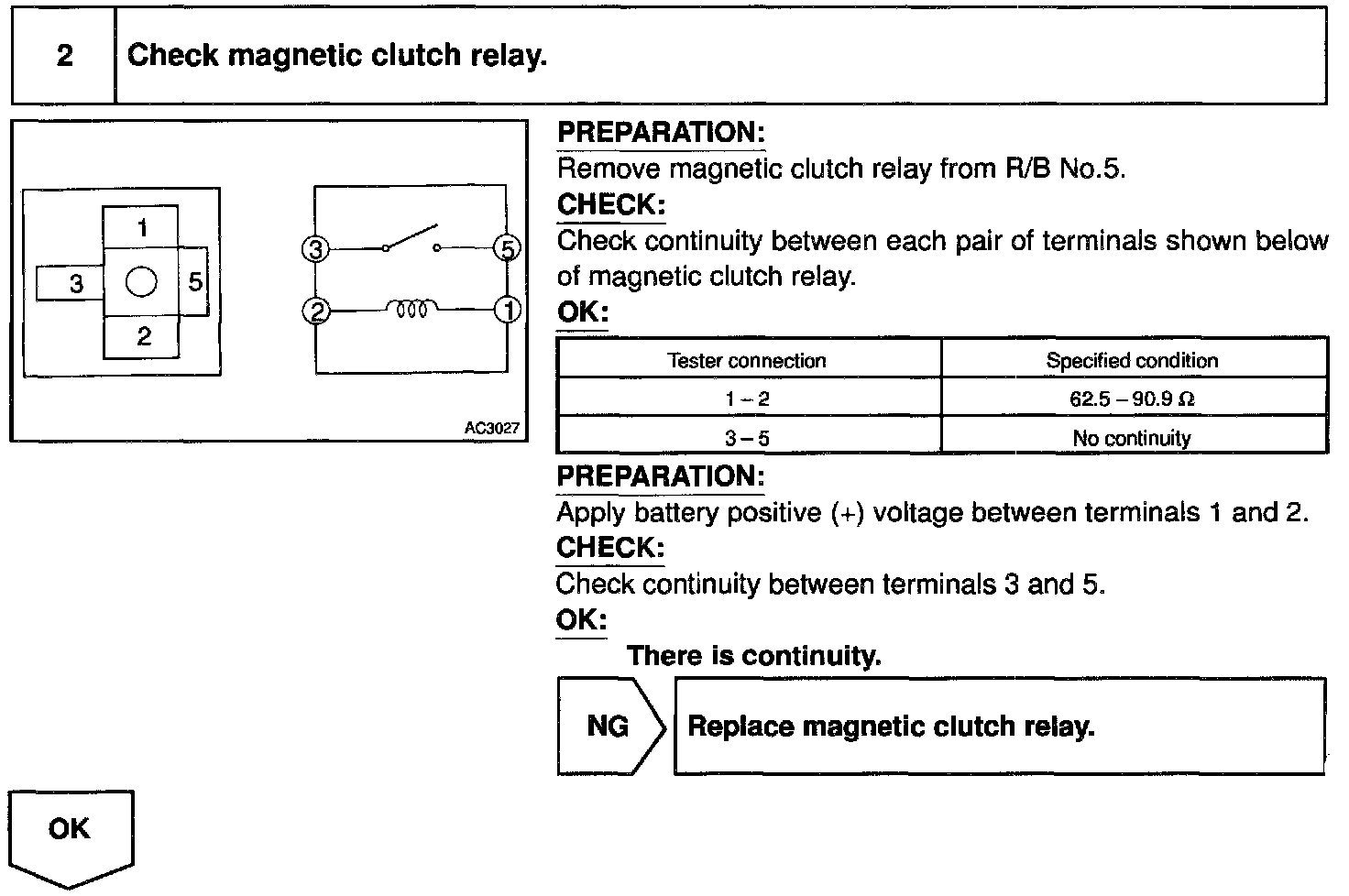

Step 2:

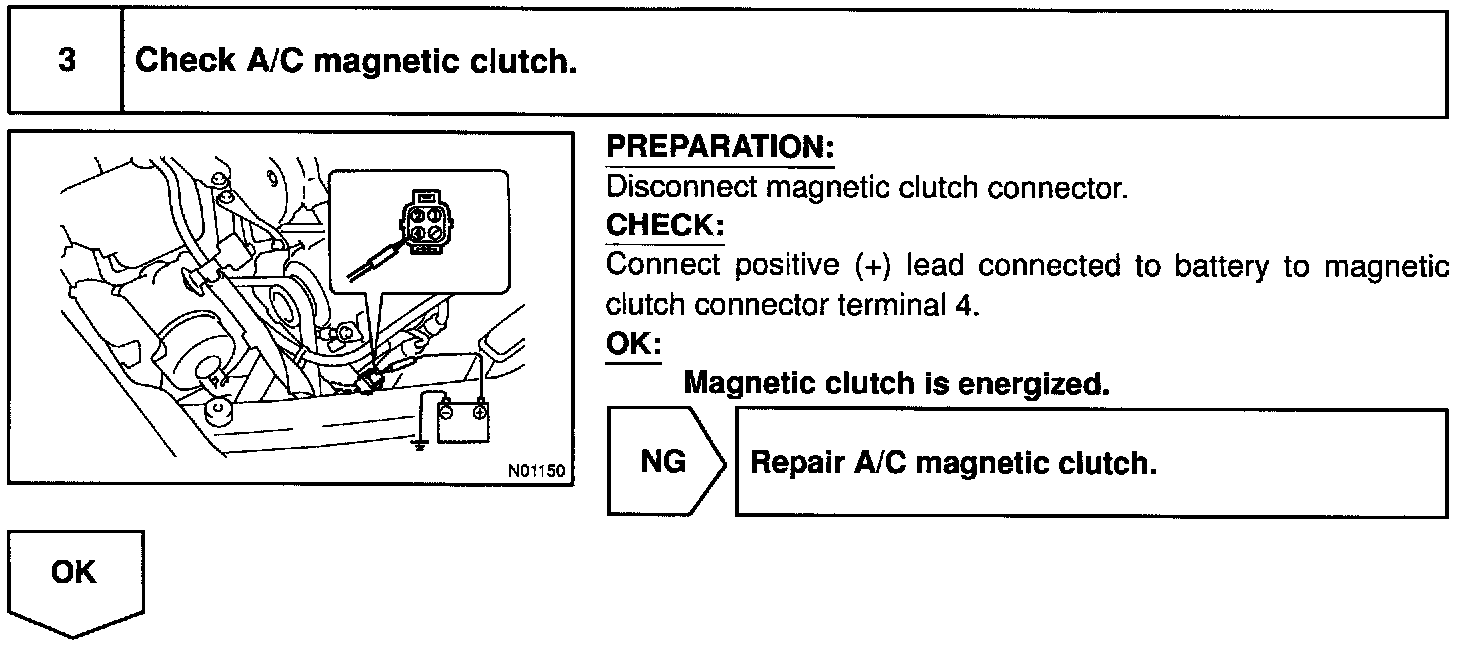

Step 3:

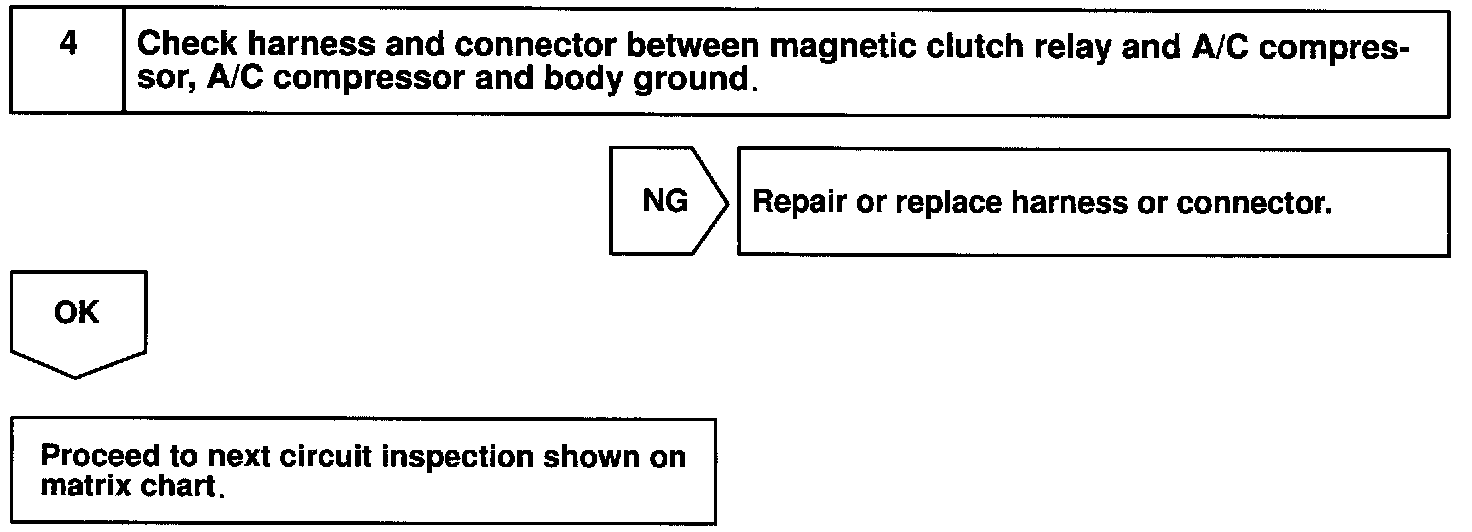

Step 4:

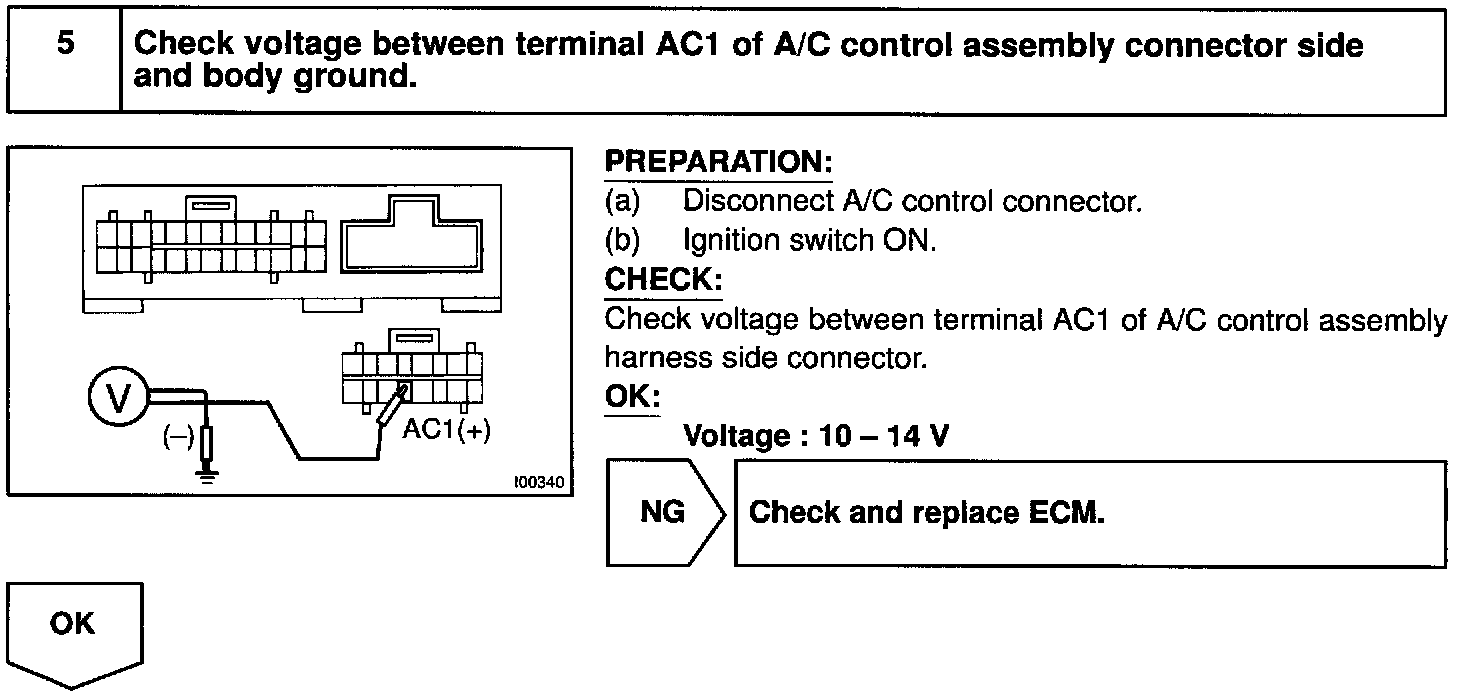

Step 5:

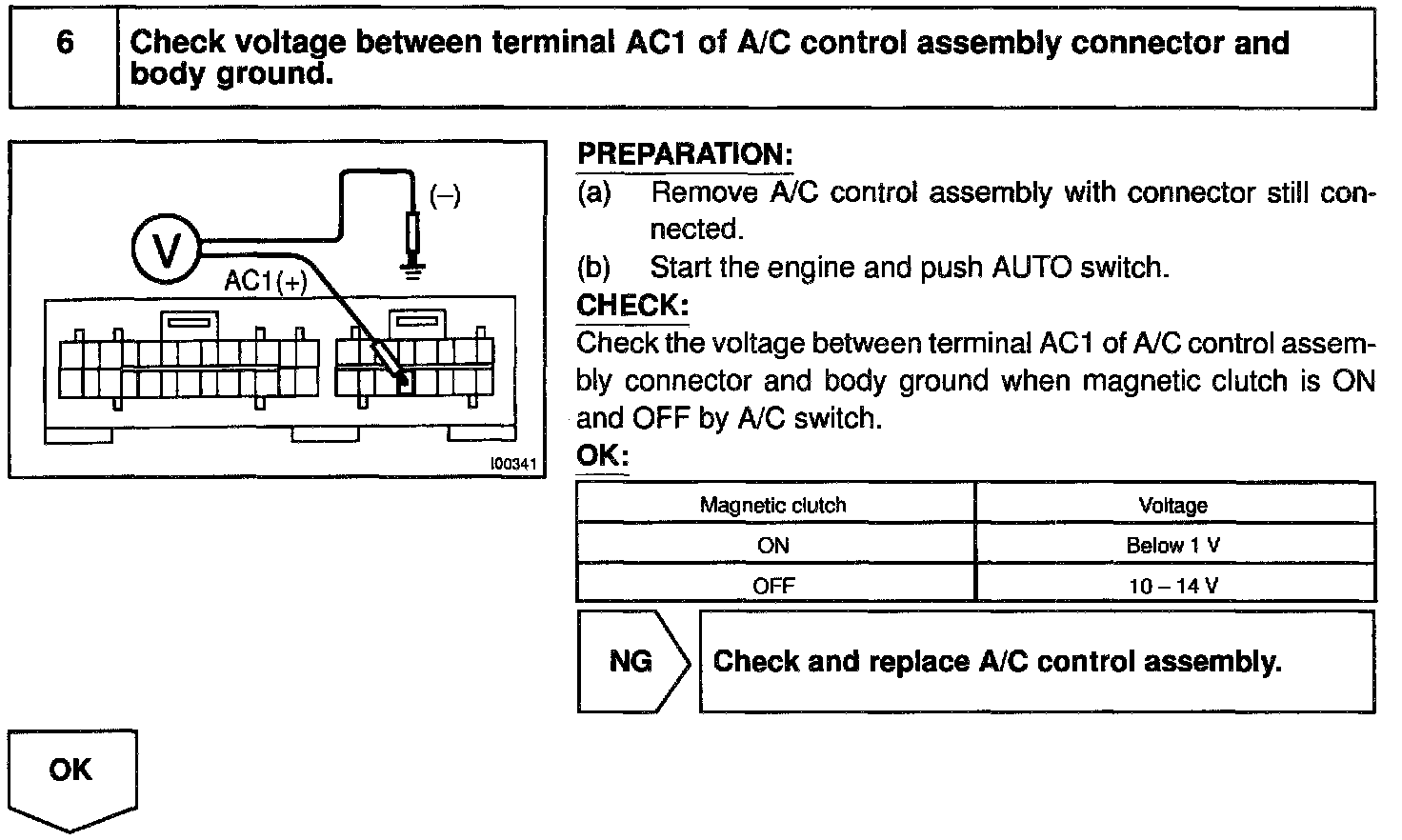

Step 6:

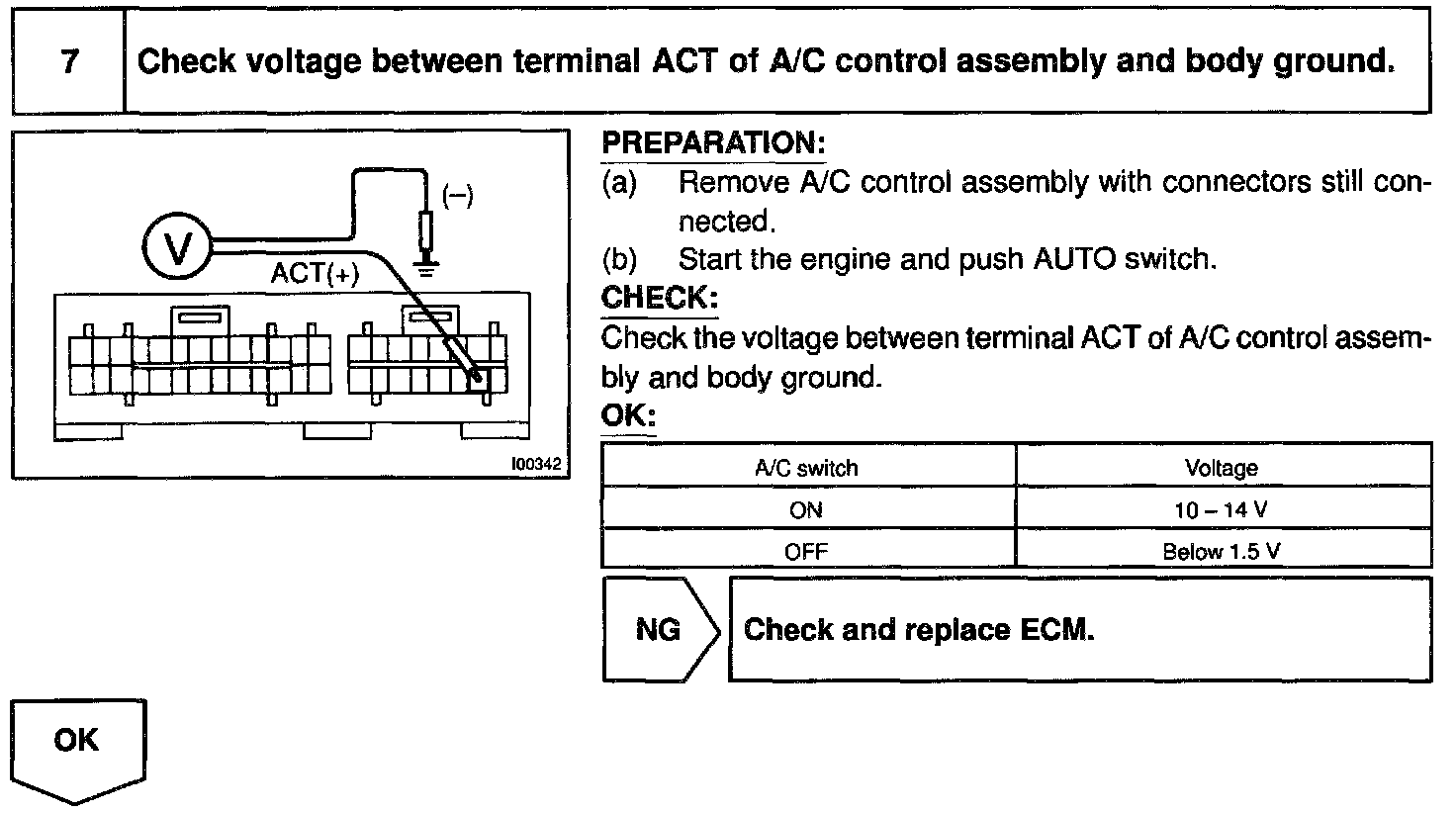

Step 7:

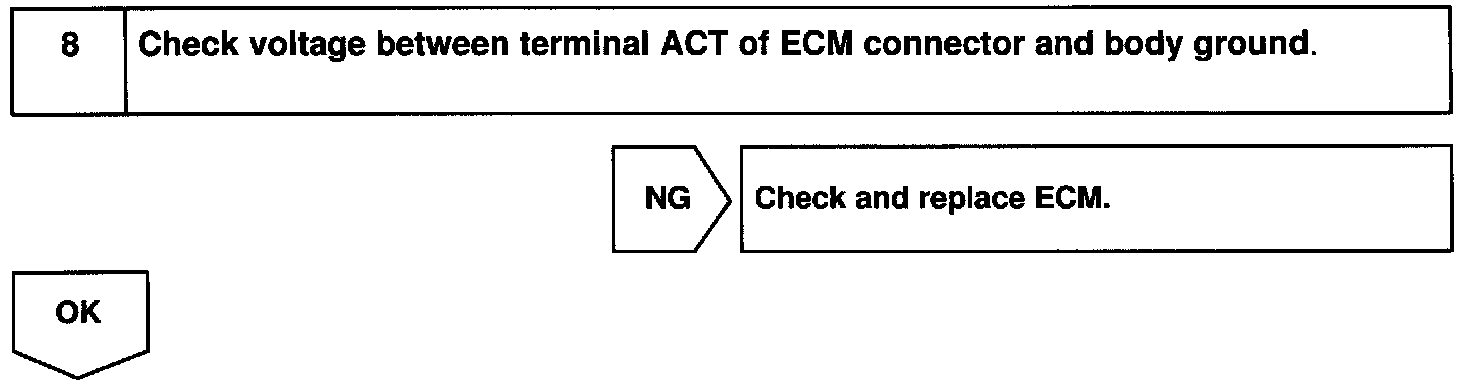

Step 8:

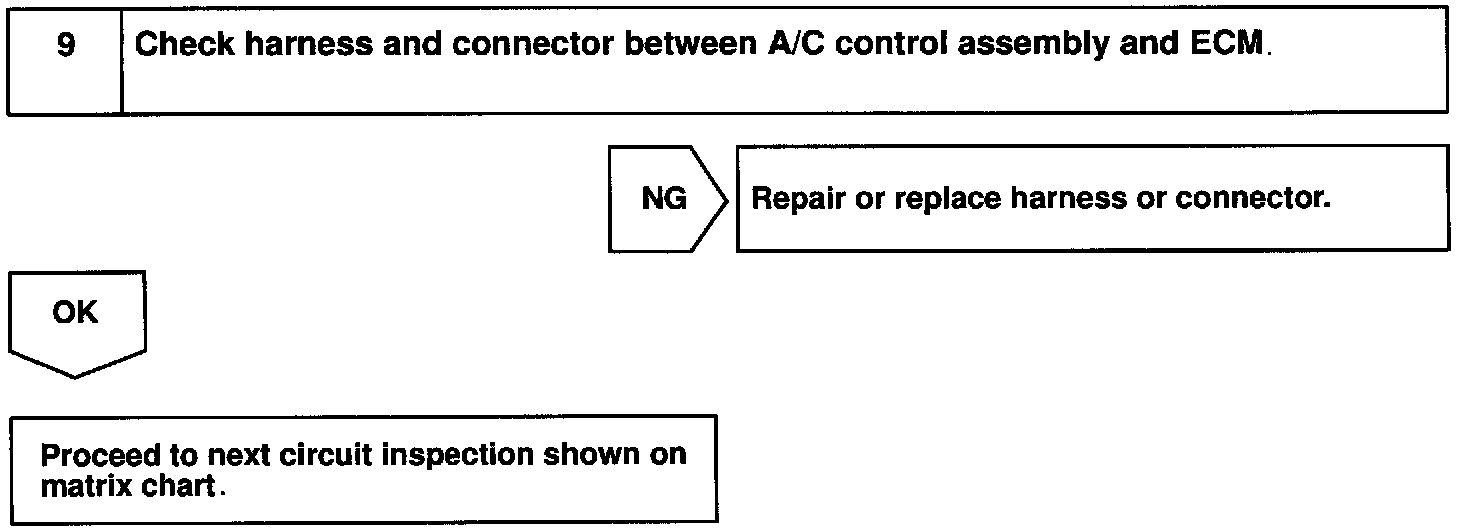

Step 9:

INSPECTION PROCEDURE
