Removal and Installation

REMOVAL
1. Disconnect level warning switch connector.
2. Take out fluid with syringe.

NOTICE: Do not let brake fluid remain on a painted surface. Wash it off immediately.

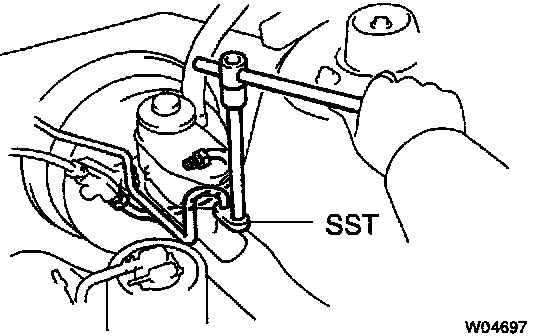

3. Disconnect brake lines.
Using Special Service Tool (SST) 09023-00100 or equivalent, disconnect the 5 brake lines.
Torque: 15 Nm (11 ft. lbs.)






4. Remove master cylinder.
Remove the 2 nuts, and pull out the 2-way, master cylinder and gasket.
Torque: 13 Nm (9 ft. lbs.)

INSTALLATION
Installation is in the reverse order of removal.
1. Before installation, adjust length of brake booster push rod.
2. After installation, fill brake reservoir with brake fluid and bleed brake system.
3. Check for leaks, check and adjust brake pedal.
