Removal and Installation

REMOVAL
1. Remove rear wheel.

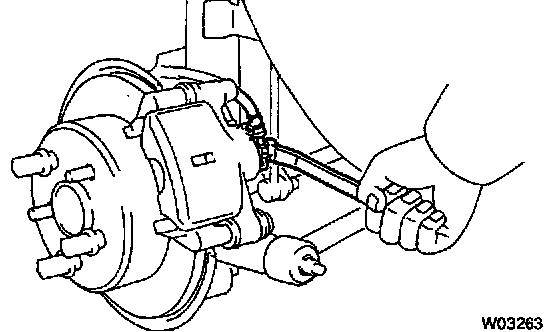

2. Disconnect flexible hose.
a. Remove the union bolt and 2 gaskets from the caliper, then disconnect the flexible hose from the caliper.
Torque: 29 Nm (21 ft. lbs.)

HINT: At the time of installation, please refer to the following item. Insert the flexible hose lock securely in the lock hole in the caliper.

b. Use a container to catch the brake fluid as it drains out.
3. Remove caliper.
a. Remove the installation bolt.
Torque: 20 Nm (14 ft. lbs.)
b. Remove the caliper from the torque plate.
4. Remove these parts:
a. 2 brake pads with anti-squeal shims 4 pad support plates

NOTICE: At the time of installation, please refer to the following item.
There should be no oil or grease adhering to the friction surfaces of the pads or disc.






5. Remove main pin.
Loosen the main pin installation bolt and remove the main pin.
Torque: 26 Nm (20 ft. lbs.)

INSTALLATION
Installation is in the reverse order of removal.
1. after installation, fill brake reservoir with brake fluid and bleed brake system.
2. Check for leaks.
