Removal and Installation

REMOVAL
1. Remove front wheel.





2. Disconnect flexible hose.
a. Remove the union bolt and 2 gaskets from the caliper, then disconnect the flexible hose from the caliper.
Torque: 29 Nm (21 ft. lbs.)

HINT: At the time of installation, please refer to the following item.
Install the flexible hose lock securely in the lock hole in the caliper.

b. Use a container to catch the brake fluid as it drains out.

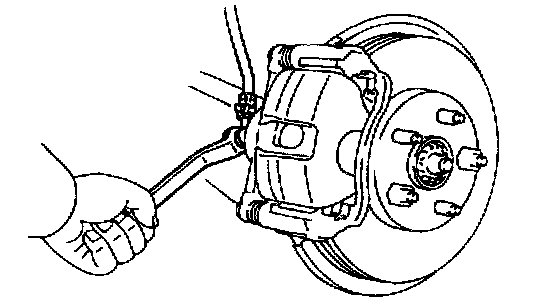

3. Remove caliper.
a. Remove the 2 installation bolts.
Torque: 34 Nm (25 ft. lbs.)
b. Remove the caliper from the torque plate.
4. Remove these parts:
a. 2 brake pads with anti-squeal shims
b. 2 pad support plates

INSTALLATION
Installation is in the reverse order of removal.
1. After installation, fill brake reservoir with brake fluid and bleed brake system.
2. Check for leaks.
