ABS (Antilock Brake System)

ECU TERMINAL MEASUREMENT

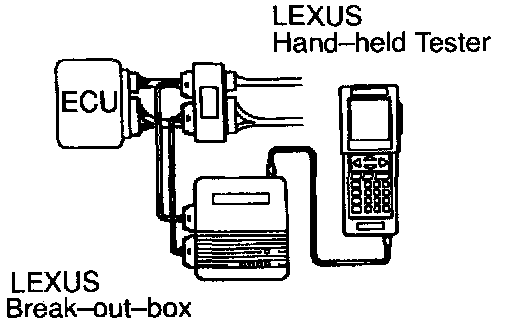

Using LEXUS break-out-box and LEXUS hand-held tester, measure the ECU terminal values.





(1) Hook up the LEXUS hand-held tester and LEXUS break-out-box to the vehicle.
(2) Read the ECU input/output values by following the prompts on the tester screen.

HINT: LEXUS hand-held tester has a "Snapshot" function. This records the measured values and is effective in the diagnosis of intermittent problems.

Please refer to the LEXUS hand-held tester/LEXUS breakout-box operator's manual for further details.

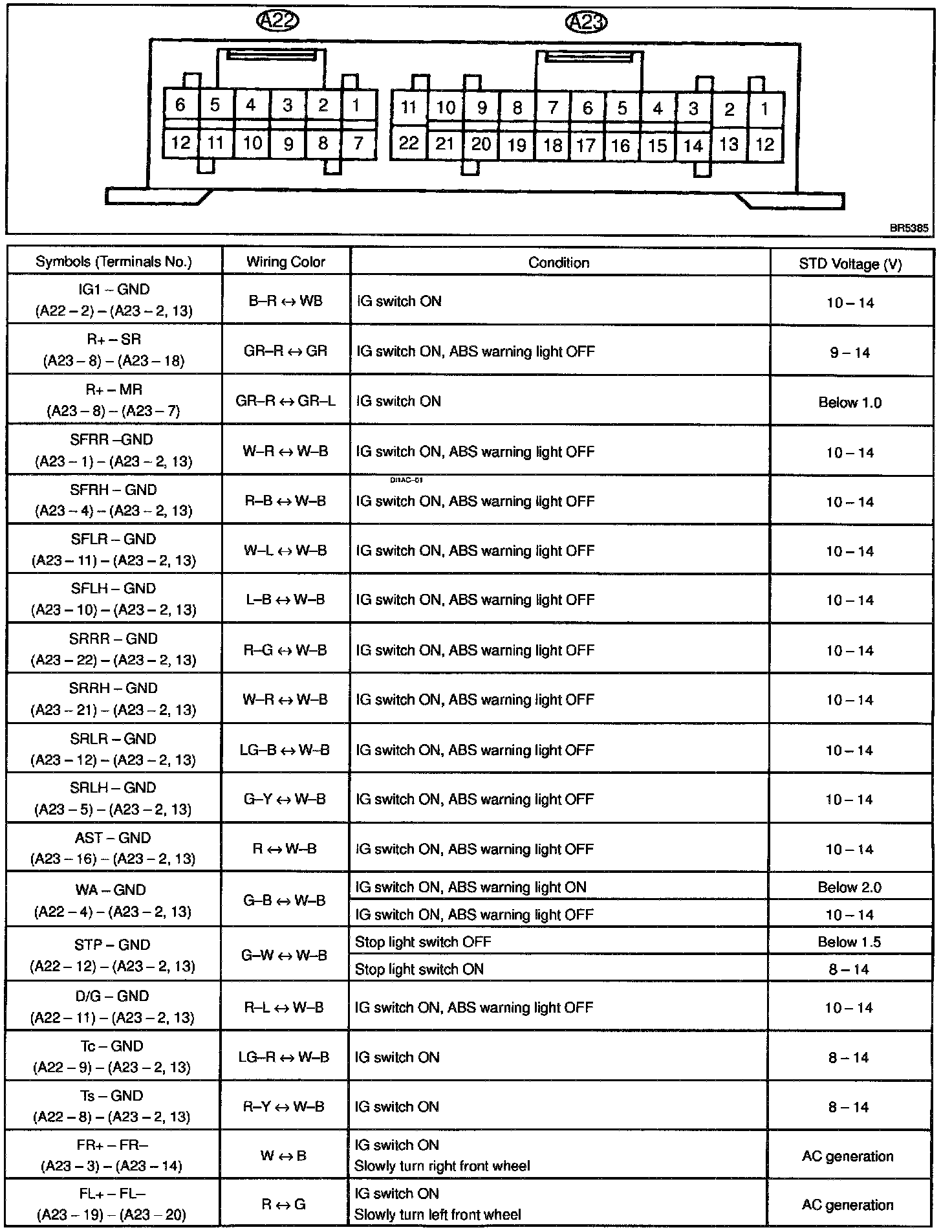

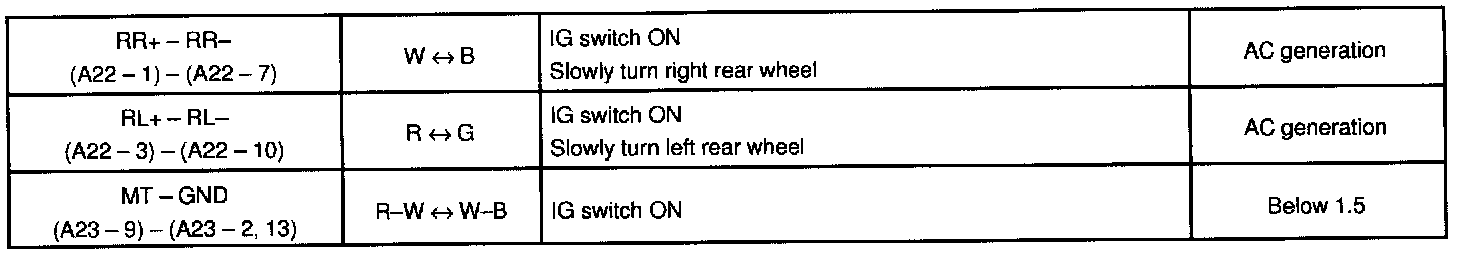

ECU TERMINAL VALUES
