Component Tests and General Diagnostics

INSPECT FUEL LID OPENER SOLENOID OPERATION

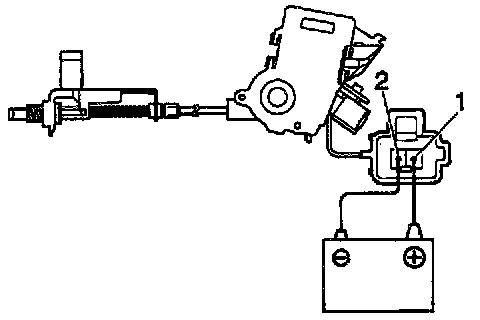

Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the solenoid operates in the open direction.
If operation is not as specified, replace the solenoid.

INSPECT FUEL LID OPENER SOLENOID CIRCUIT

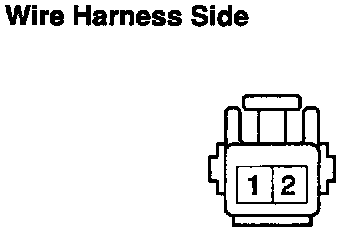

Disconnect the connector from the solenoid and inspect the connector on the wire harness side, as shown.
If the circuit is not as specified, inspect the circuits connected to other parts.
