Air Inlet Damper Position Sensor Circuit

DTC 42 Air Inlet Damper Position Sensor Circuit





CIRCUIT DESCRIPTION
This sensor detects the position of the air inlet damper and sends the appropriate signals to the NC control assembly. The position sensor is built into the air inlet control servomotor.

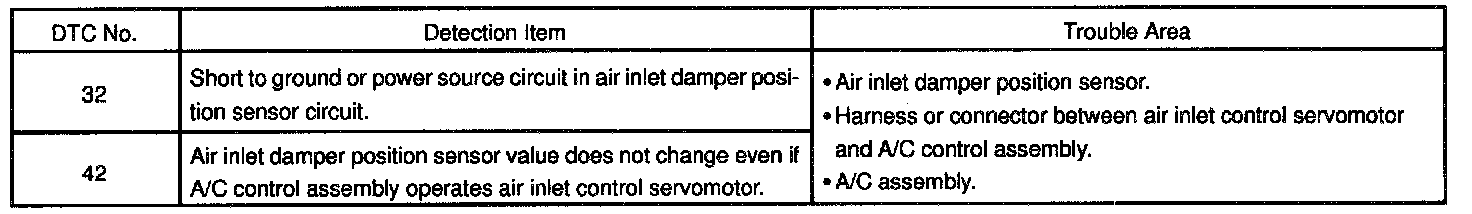

DETECTING CONDITION

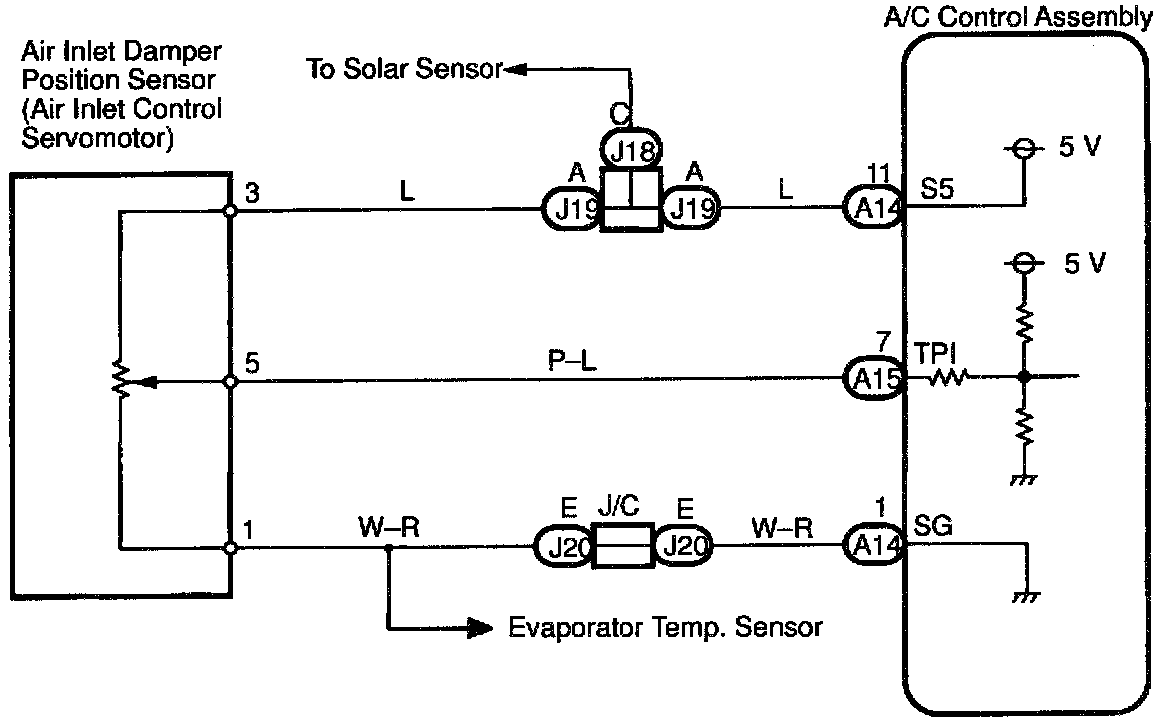

WIRING DIAGRAM

Step 1:

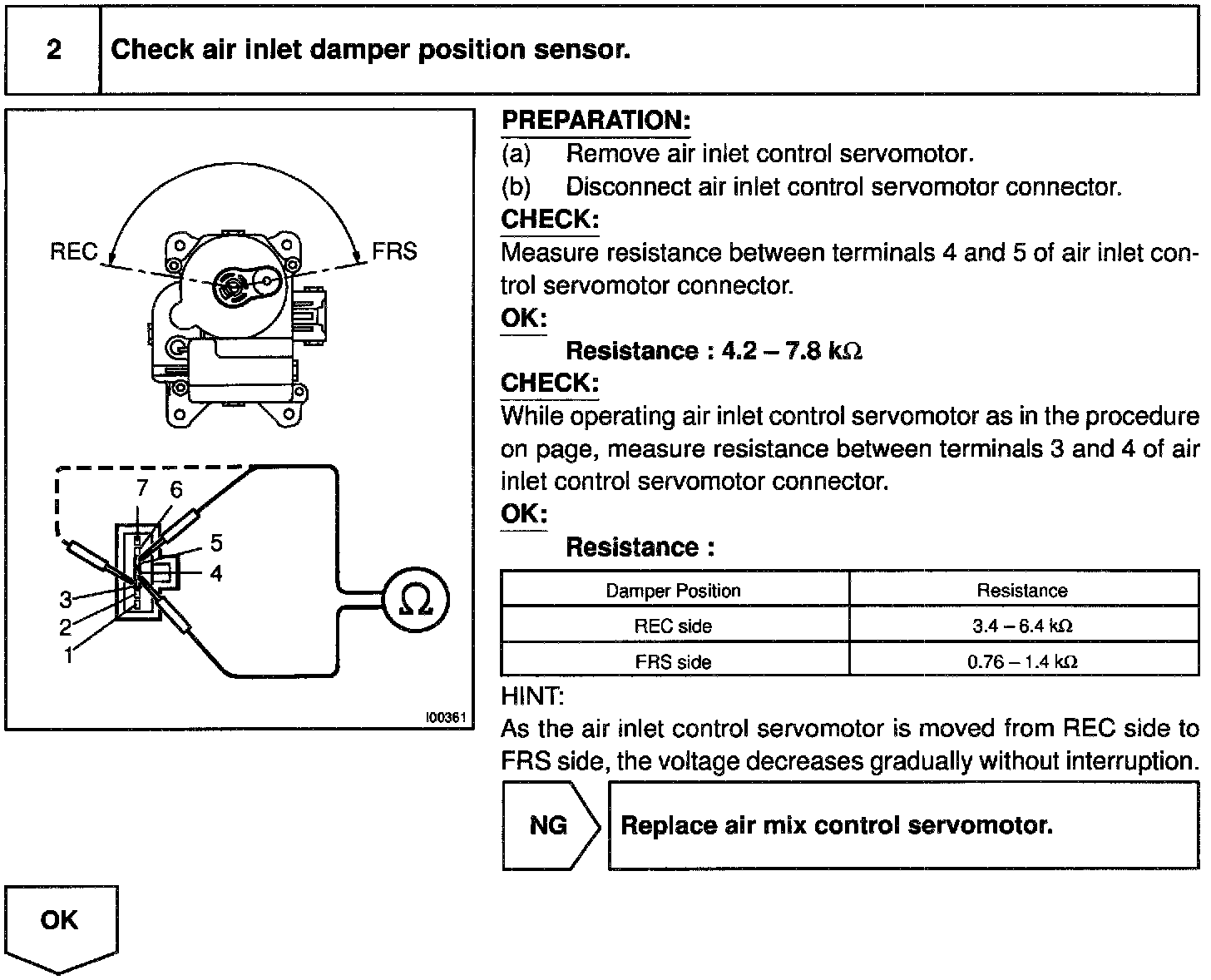

Step 2:

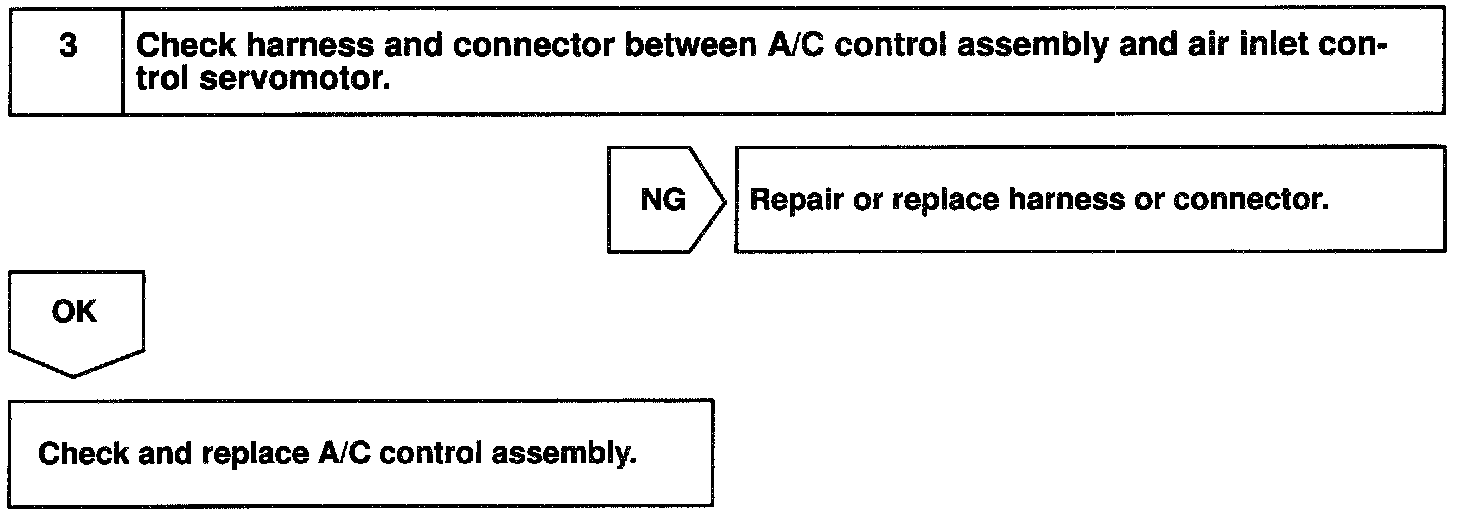

Step 3:

INSPECTION PROCEDURE
