DTC 51

DTC 51 Idle Signal Circuit

CIRCUIT DESCRIPTION
When the idle switch is turned ON, a signal is sent to the ECU. The ECU uses this signal to correct the discrepancy between the throttle valve position and the actuator position sensor values to enable accurate cruise control at the set speed. If the idle switch is malfunctioning, problem symptoms also occur in the engine, so also inspect the engine.

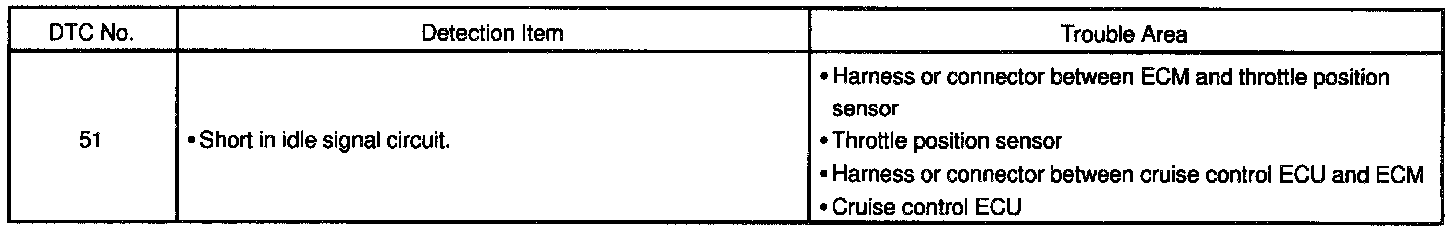

DETECTING CONDITION

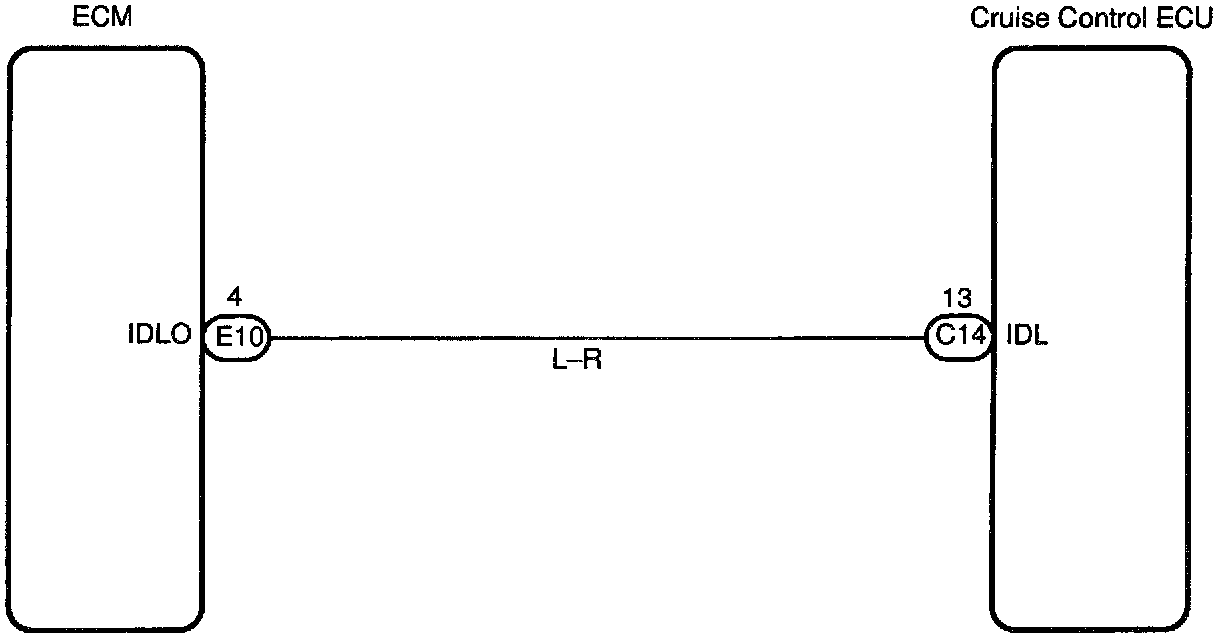

WIRING DIAGRAM

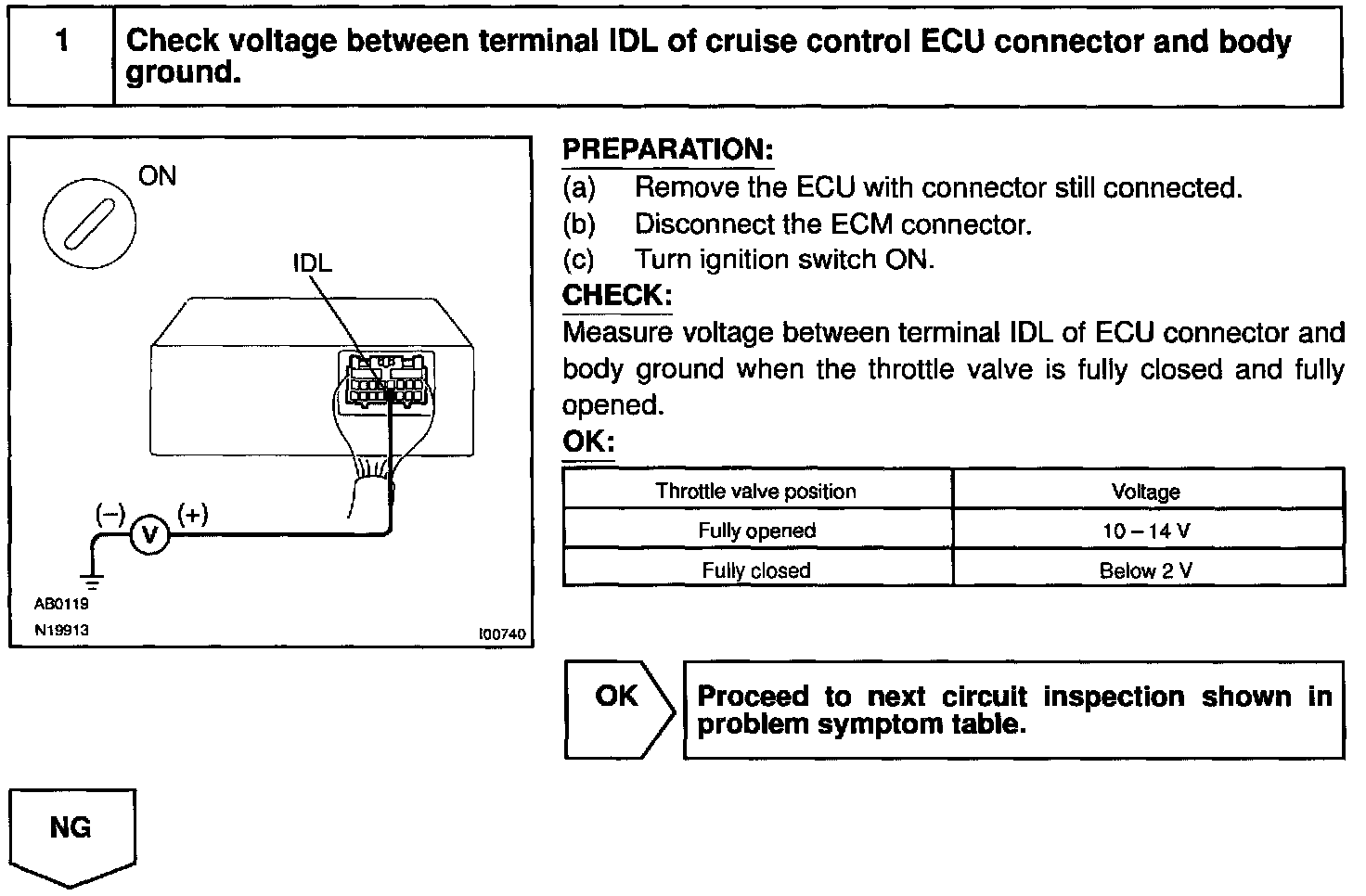

Step 1:

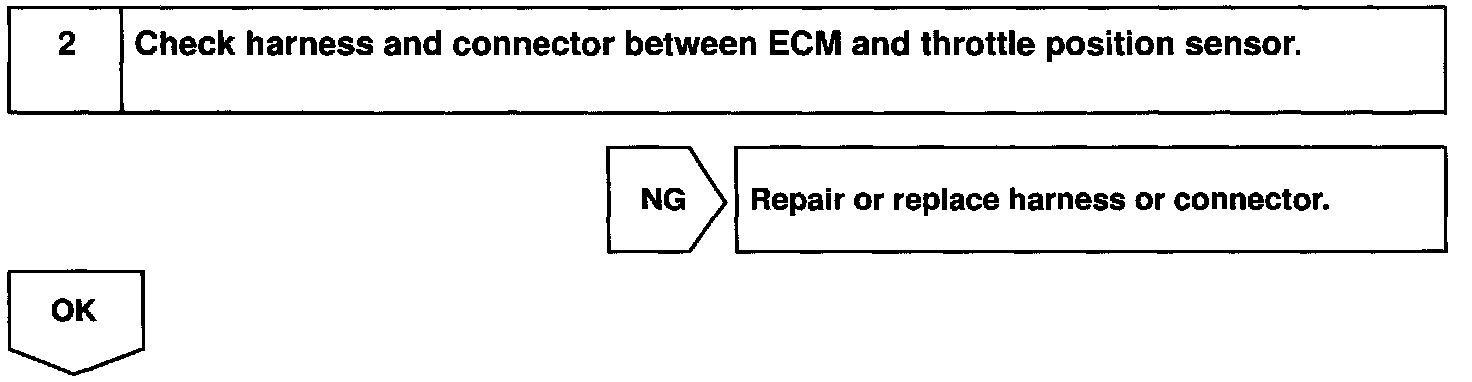

Step 2:

Step 3:

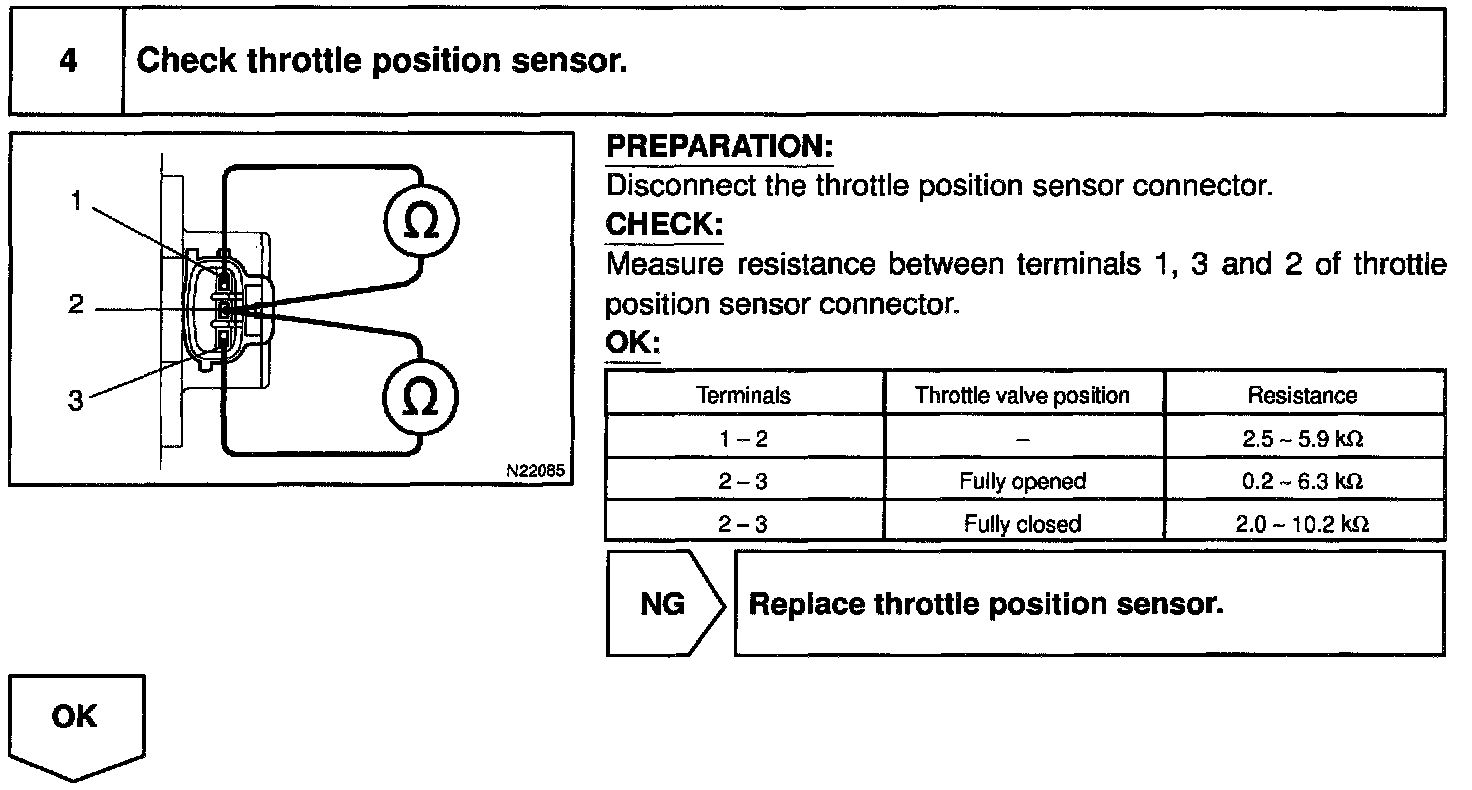

Step 4:

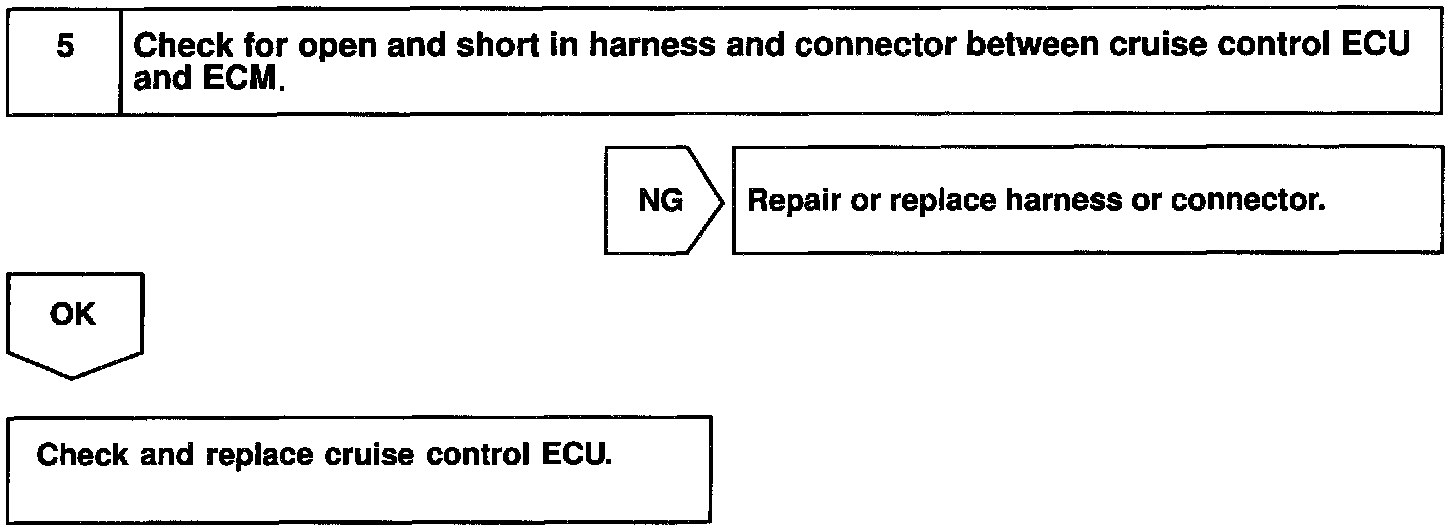

Step 5:

INSPECTION PROCEDURE
