Transmission Speed Sensor: Testing and Inspection

Reference

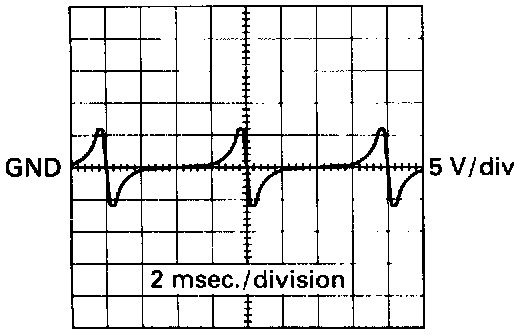

- Waveform between terminals SP2+ and SP2- when vehicle speed is approx. 60 km/h (37 mph).
