Shift Fork: Service and Repair

OIL SEAL REPLACEMENT
1. If necessary, replace control shift lever retainer oil seal, as follows:
a. Remove the No.2 inner shift lever set bolt.

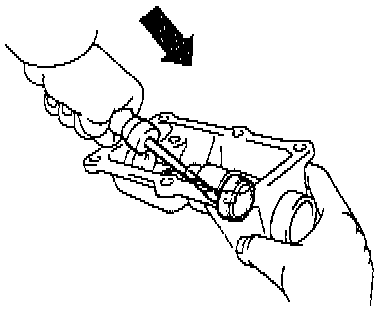

b. Remove the No.2 inner shift lever and control shaft from the control shift lever retainer. Using a screwdriver, pry out the oil seal.

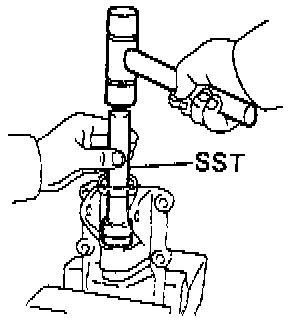

d. Using Special Service Tool (SST) 09304-12012 or equivalent, and a hammer, install a new oil seal.
Drive in depth: 55.7 +/- 0.3 mm 2.193 +/- 0.012 inch).
e. Install the control shaft and No.2 inner shift lever to the control shift lever retainer.
f. Install and torque the No.2 inner shift lever set bolt.
Torque: 36 Nm (26 ft. lbs.).
