Seals and Gaskets: Service and Repair

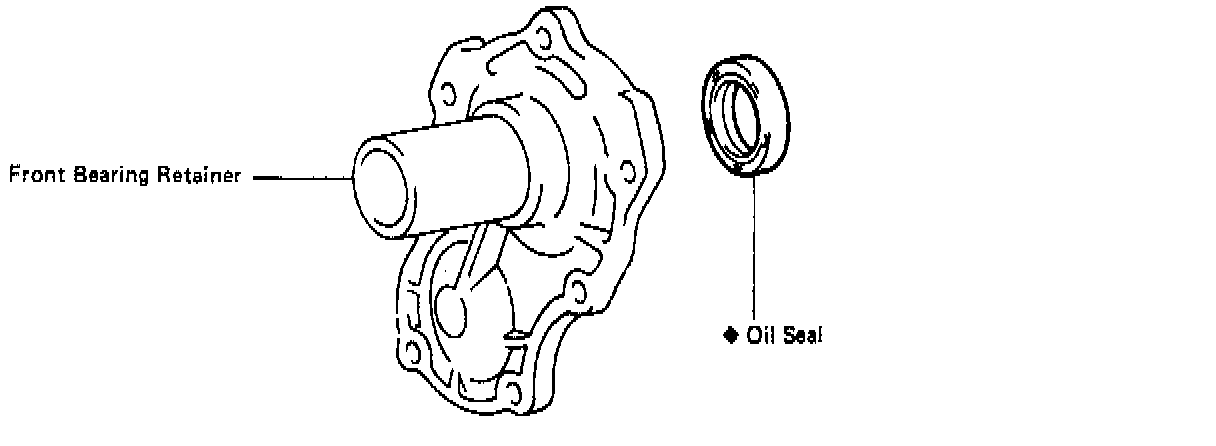

Front Bearing Retainer Oil Seal






PROCEDURE
1. If necessary, replace front bearing retainer oil seal, as follows:
a. Using a screwdriver, pry out the oil seal.

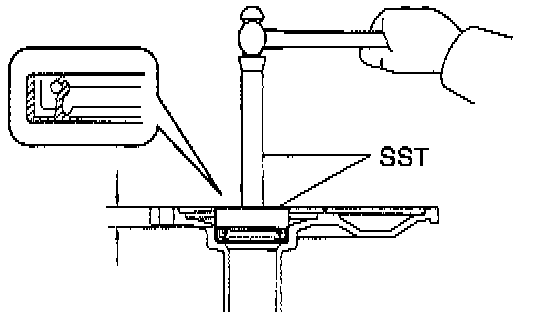

b. Using Special Service Tool (SST) 09950-60010 (09951-00440), 09950-70010 (09951-07150), or equivalent, and a press, install a new oil seal.
Drive in depth: 12.2 +/- 0.5 mm (0.480 +/- 0.020 inch).
