Disassemble

DISASSEMBLY
1. Remove No.3 hub sleeve, shifting key and spring from synchronizer ring, as follows:
a. Remove the synchronizer ring assembly from the No.3 hub sleeve.

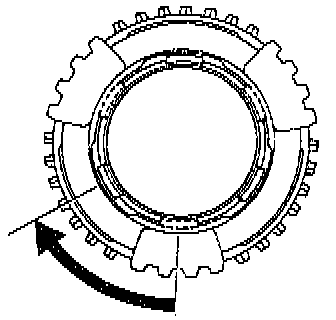

b. Turn the reverse synchronizer pull ring.

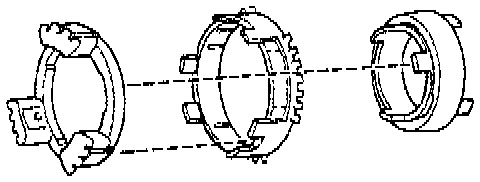

c. Remove the reverse synchronizer ring and 5th synchronizer ring from the synchronizer pull ring and cone ring.





d. Turn the reverse synchronizer pull ring and separate the pull ring and cone ring.

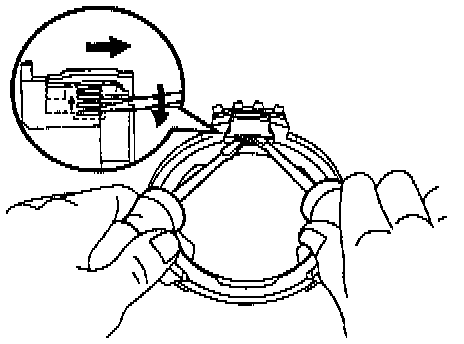

e. Remove the three shifting keys and key springs by carefully levering up the shifting key spring with one screwdriver and levering the shifting key away from the reverse synchronizer ring with another screwdriver.
