Assemble

COUNTER GEAR ASSEMBLY
1. Install synchronizer ring assembly to NO.3 hub sleeve, as follows:

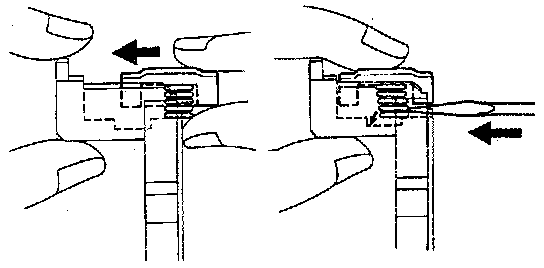

a. Push the synchronizer key spring, install the shifting key and key spring to the reverse synchronizer ring.
b. Using a screwdriver, push the three key springs into the synchronizer ring spring gaps.

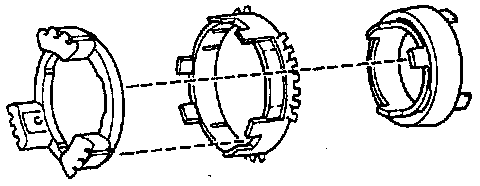

c. Install the synchronizer cone ring to the reverse synchronizer pull ring and turn the pull ring.





d. Install the 5th synchronizer ring.
e. Install the reverse synchronizer ring.





f. Turn the reverse synchronizer pull ring.





g. While pushing three shifting keys, install the synchronizer ring assembly to the No.3 hub sleeve.
