Flywheel: Testing and Inspection

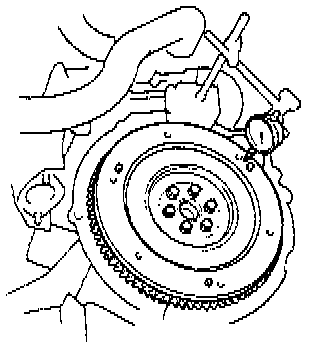

1.
Inspect
flywheel
runout. Using a dial indicator, check the flywheel runout.
Maximum runout:
0.1 mm (0.004 inch)
.
If necessary, replace the
flywheel
.
