Example

EXAMPLE:

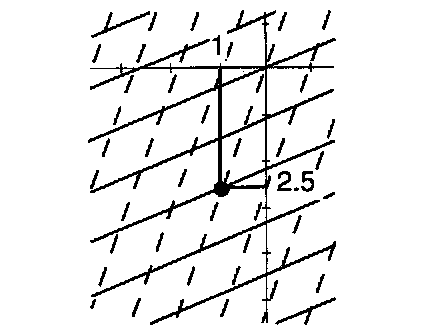

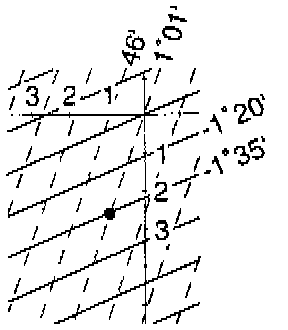

How To Read This Chart
Take measurements, then calculate the No.2 and No. 3 joint angle.
Mark the calculated values on the chart and read the coordinates.
Replace the adjusting washer, shim and mount upper stopper in accordance with the coordinates read and
adjust the joint angles.





EXAMPLE:
Measurements (Installation angle):
Intermediate shaft: 1°10'
Propeller Shaft: 2°45'
Differential: 1°01'

Joint angle:
NO.2: 1°10'-2°45'=-1°35'
NO.3: 2°45'-1°44'= 1°01'

Adjustment:

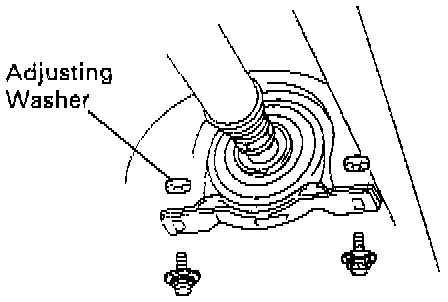

Center Support Bearing:





- Standard parts 6.5 mm (0.256 inch) + 2.5 mm (0.118 inch) = 8.5 mm (0.138 inch).





- Use adjusting washers which are 8.5 mm (0.335 inch) thicker.

Differential





NOTE:
- Maintain the same thickness for the adjusting washers and adjusting shims on both the left and right sides.
- If a washer, stopper and shim of the exact thickness are not available, use the parts which are nearest in thickness.

NOTICE: Check the joint angle once again after making the adjustment.
