Companion Flange Dust Deflector

Dust Deflector and Dust Cover Replacement
1. Replace companion flange dust deflector, as follows:





a. Using Special Service Tool (SST) 09950 - 00020, 09950 - 60010 (09951 - 00510) or equivalents, and a press, remove the dust deflector.

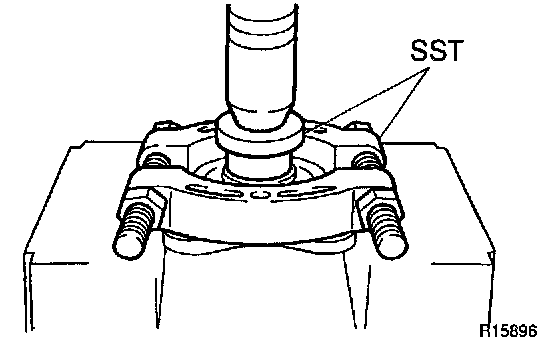

Fig. 30 Installing Companion Flange Dust Deflector:

b. Using SST 09316 - 60011 (09316 - 00011) or equivalent, and a press, install a new dust deflector.
2. Replace side gear shaft dust cover, as follows:





a. Using SST 09950 - 00020 or equivalent, and a press, remove the dust cover.

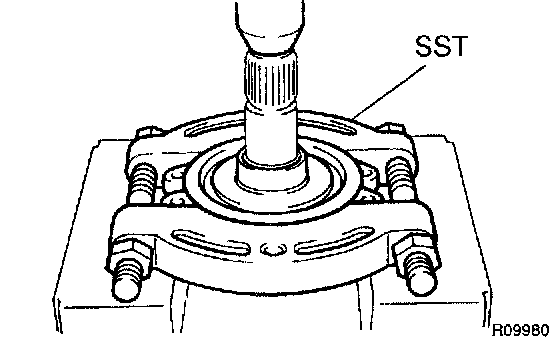

Fig. 32 Installing New Side Gear Shaft Dust Cover:

b. Using SST 09502 - 24010, 09950 - 60020 (09951 - 00780), 09950-70010 (09951 -07150) or equivalents, and a press, install a new dust cover.

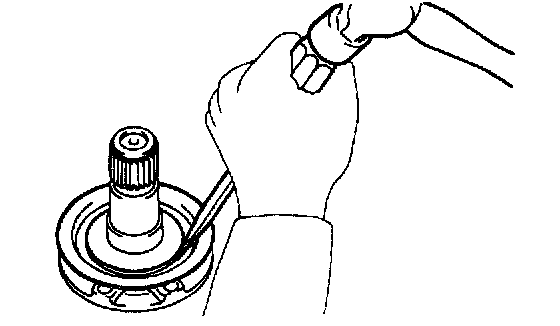

NOTE: If the dust cover does not fit tightly against the flange of the side gear shaft, use a screwdriver to drive it down tight.
