Replacement

REMOVAL
1. Drain out fluid with syringe.

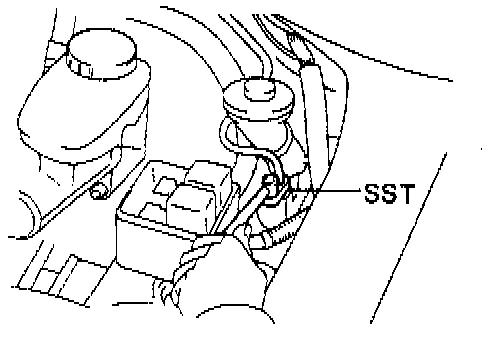

2. Disconnect clutch line. Using Special Service Tool (SST) 09023-00100 or equivalent, disconnect the clutch line.
Torque: 15 Nm (11 ft. lbs.).

3. Remove these parts:
- No.2 lower finish panel
- Upper console panel
- Console box assembly
- Lower cluster pad
- End pad
- No.1 lower finish panel
- No.2 heater to register duct

4. Remove clevis pin and clip with spring washer.
5. Remove two mounting nuts and pull out master cylinder
Torque: 12 Nm (108 inch lbs.).

INSTALLATION
Installation is in the reverse order of removal.

INSTALLATION NOTE: After installation, adjust the clutch pedal and bleed the clutch system.
