O/D Main Switch & O/D OFF Indicator Light Circuit

O/D Main Switch & O/D OFF Indicator Light Circuit

CIRCUIT DESCRIPTION
The O/D main switch contacts go open when the switch is pushed in and go closed when it is pushed once again.
In O/D main switch OFF position, the O/D OFF indicator lights up and the ECM prohibits sifting to O/D.

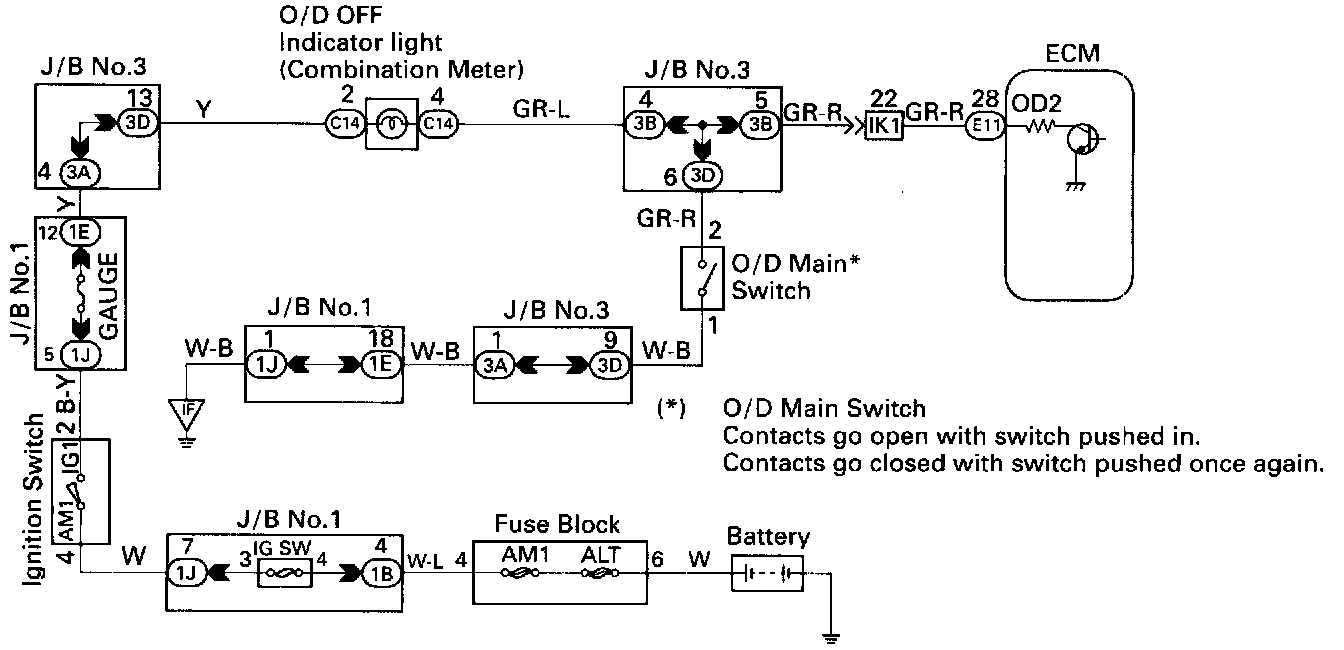

WIRING DIAGRAM

INSPECTION PROCEDURE

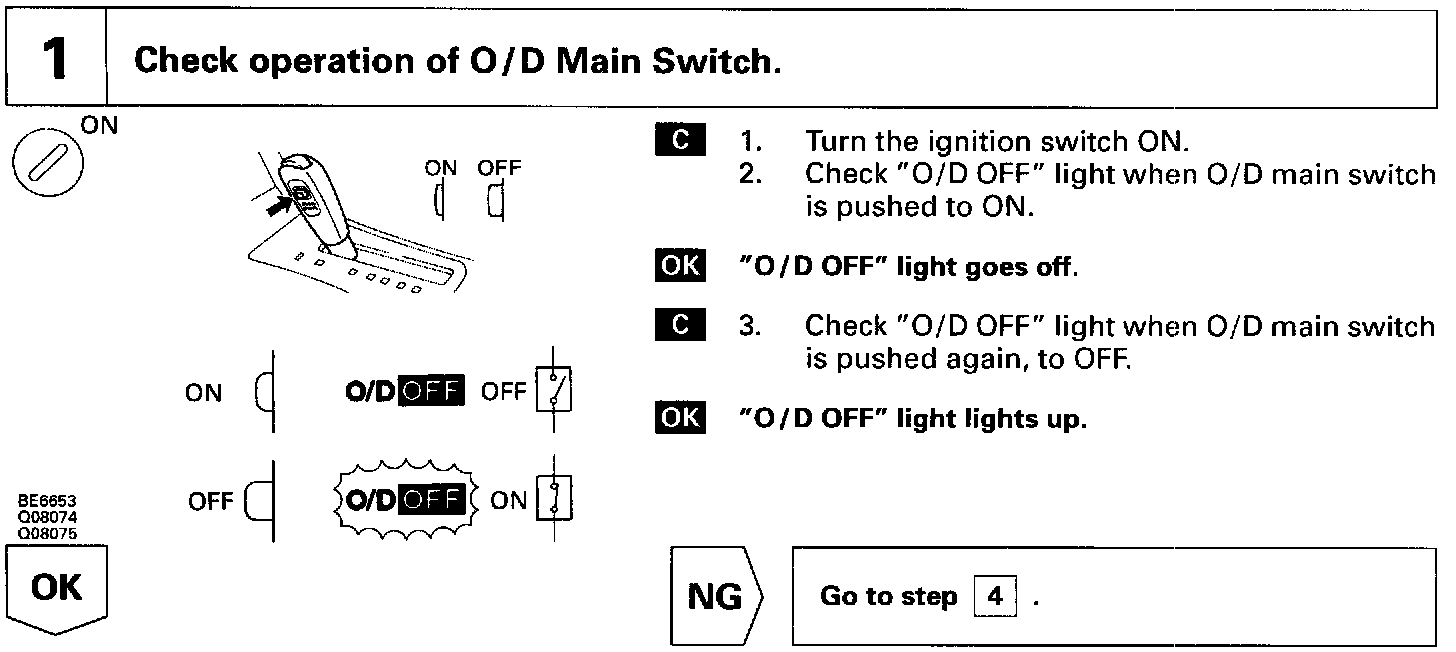

Step 1:

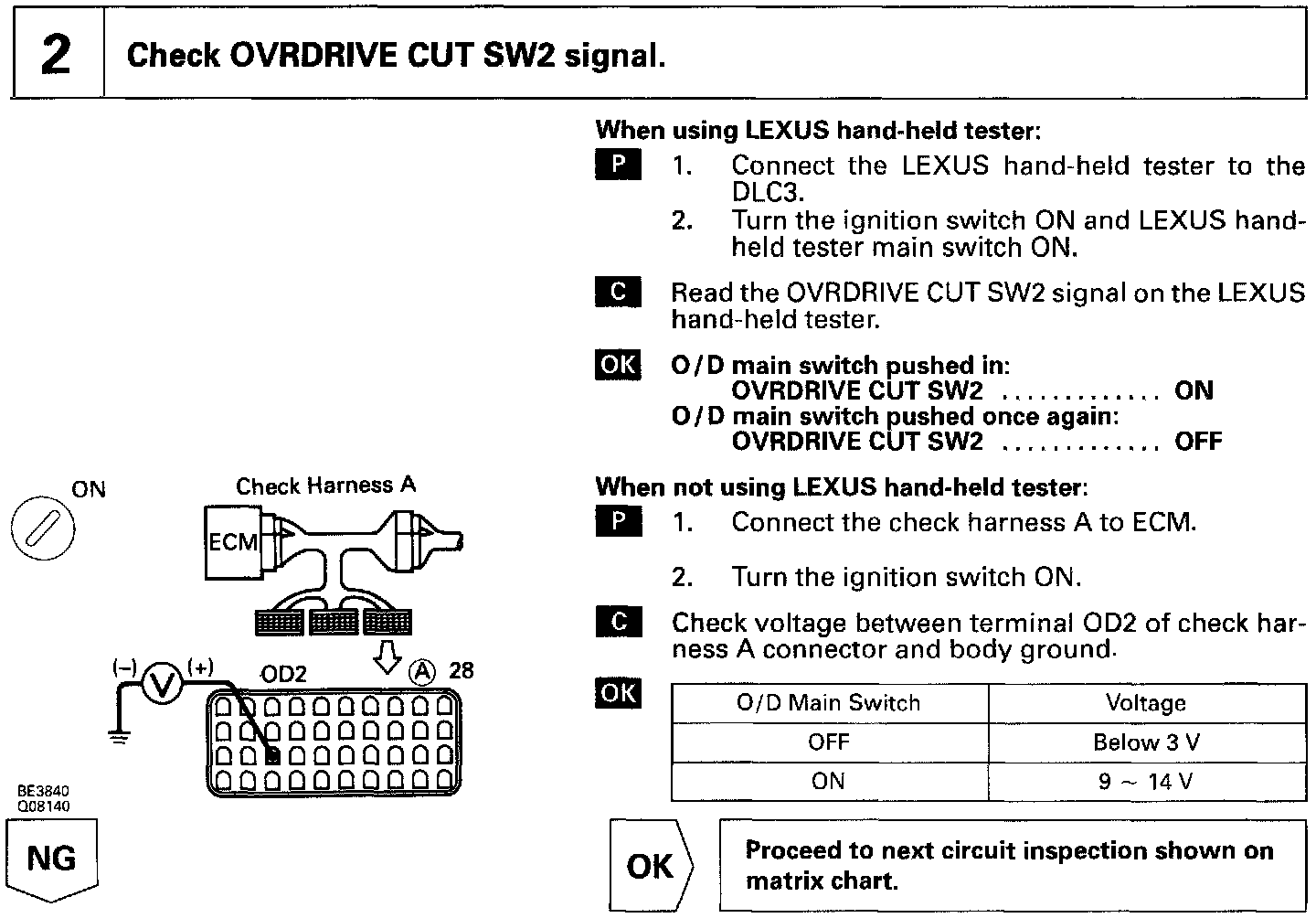

Step 2:

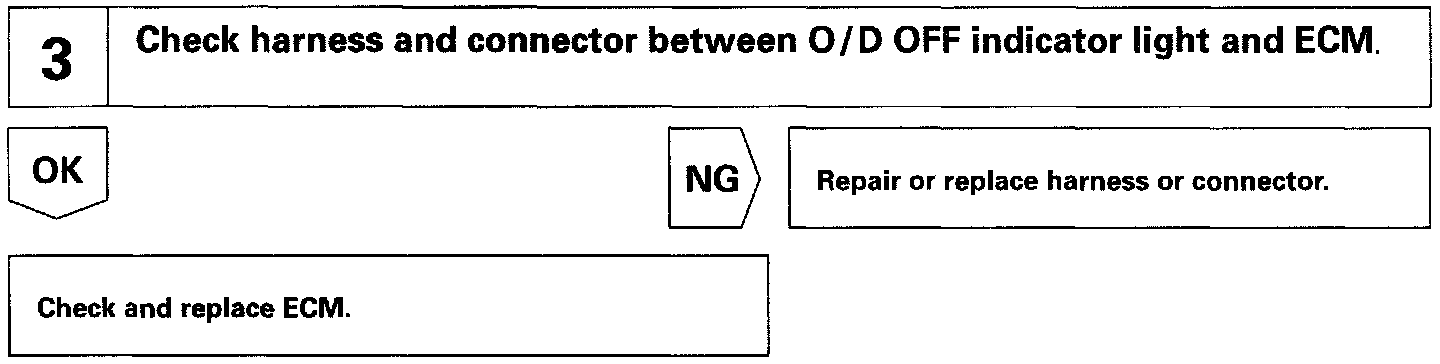

Step 3:

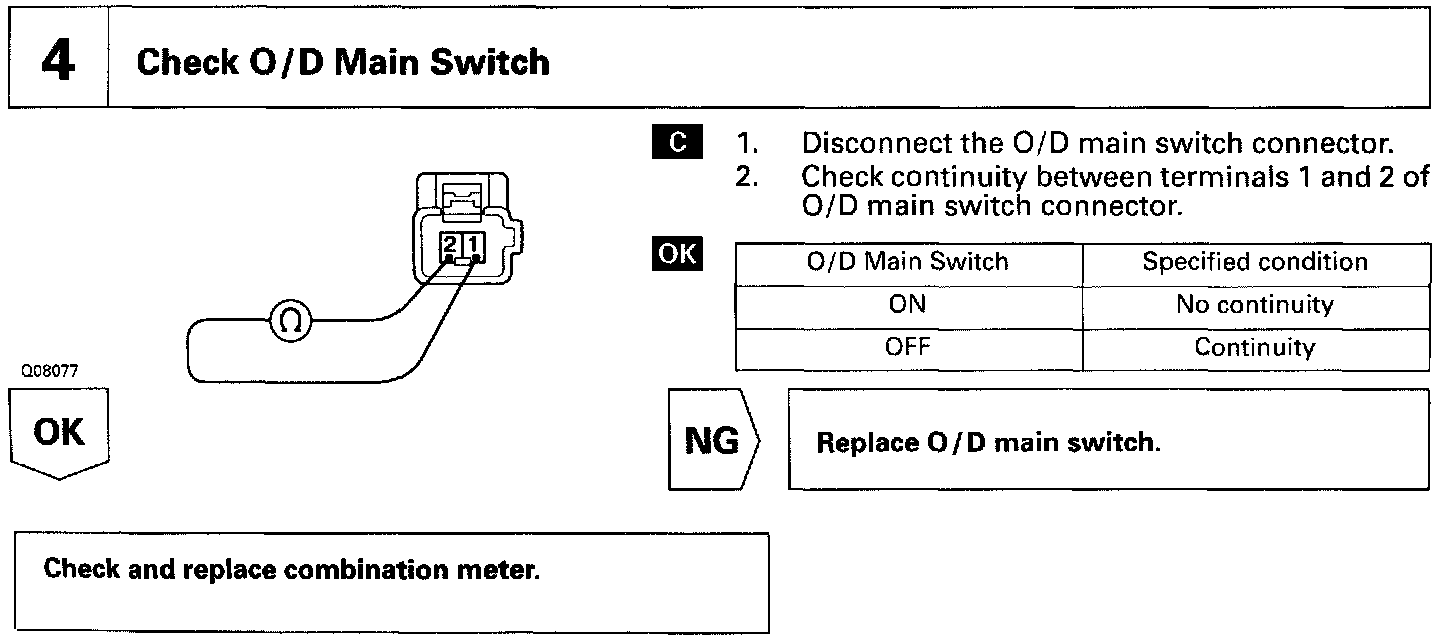

Step 4:

O/D OFF indicator light does not light up.

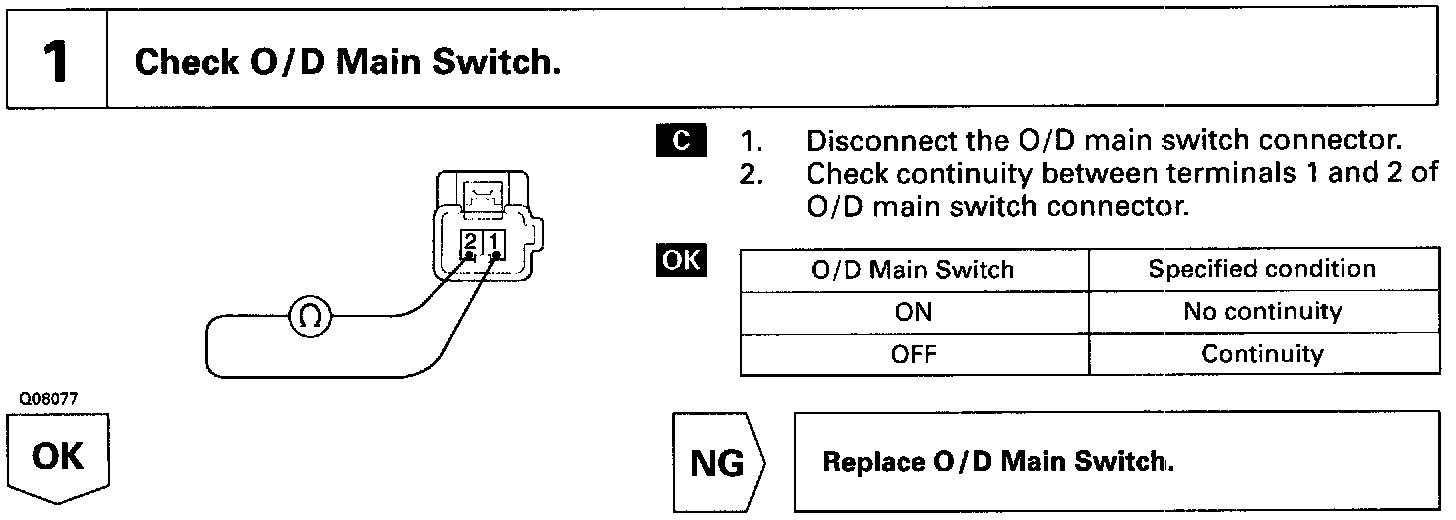

Step 1:

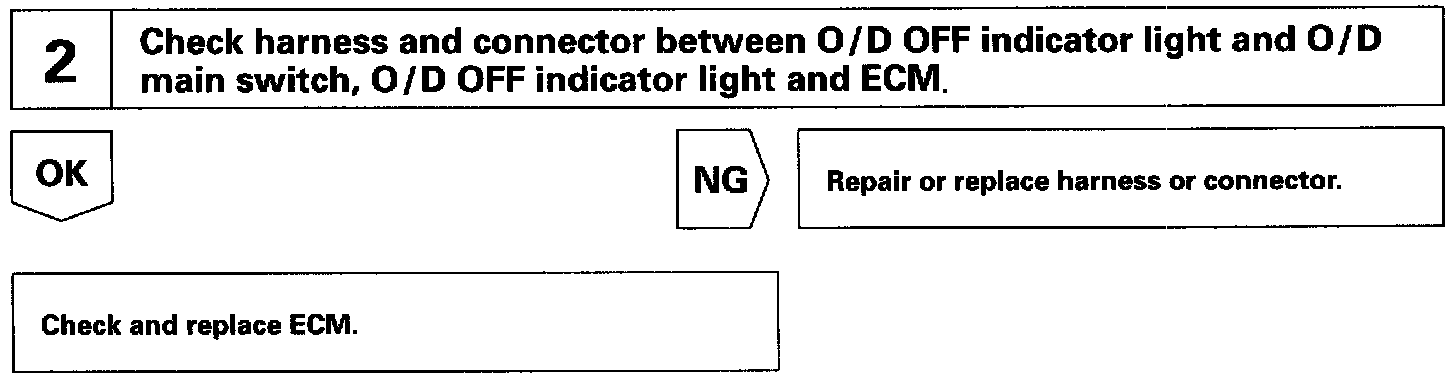

Step 2:

O/D OFF indicator light remains ON.
