Parking Pawl: Service and Repair

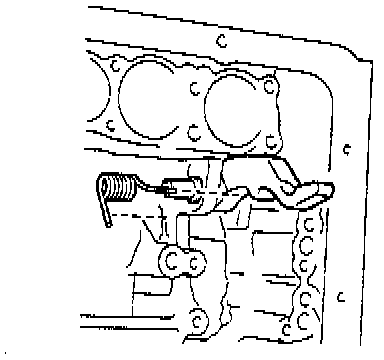

REMOVAL





1. Remove valve body.
2. Remove parking lock pawl bracket.

INSTALLATION NOTE:
- Push the lock rod fully forward.
- Check that the parking lock pawl operates smoothly.
Torque: 7.4 Nm (65 inch lbs.).





3. Remove spring from parking lock pawl shaft.
4. Remove parking lock pawl and shaft.

INSTALLATION
Installation is in the reverse order of removal.
