Case: Testing and Inspection

INSPECTION

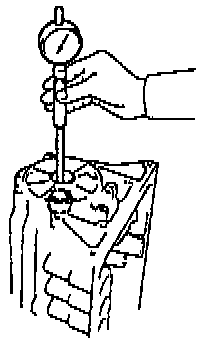

1. Inspect transmission case bushing. Using a cylinder gauge, measure the inside diameter of the transmission case rear bushing.
Maximum inside diameter: 38.19 mm (1.5035 inch).
If the inside diameter is greater than the maximum, replace the transmission case.
