Rear

REMOVAL
1. Disconnect tailpipe.
2. Remove both side stabilizer bar links. Remove the four nuts and two stabilizer bar links.
Torque: 74 Nm (54 ft. lbs.).
3. Remove stabilizer bar. Remove the four bolts and stabilizer bar with the two brackets, two bushings and two links.
Torque: 28 Nm (21 ft. lbs.).
4. Remove both side bushings and brackets.

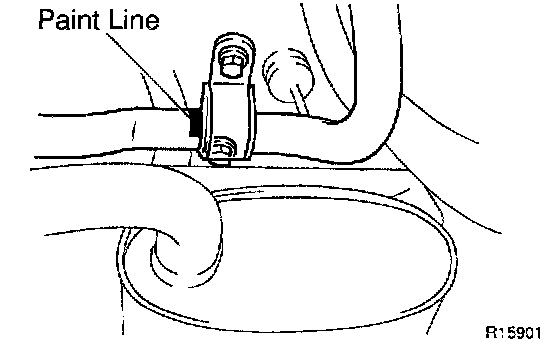

INSTALLATION NOTE: Install the bushing to the outside of the paint line.

INSPECTION

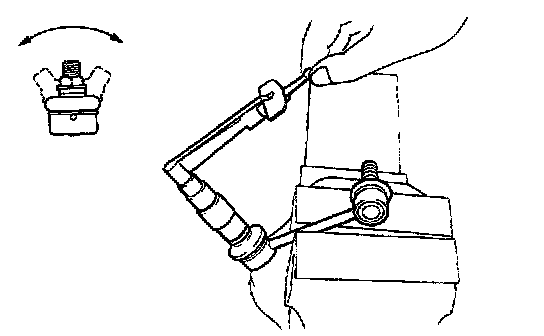

1. Inspect stabilizer bar link ball joint for rotation condition, as follows:





a. As shown, flip the ball joint stud back and forth five times, before installing the nut.
b. Using a torque wrench, turn the nut continuously one turn each 2 - 4 seconds and take the torque reading on the 5th turn.
Turning torque: 0.05 - 1.0 Nm (2.6 - 8.7 inch lbs.).


INSTALLATION
Installation is in the reverse order of removal.
