Fluid Level Check

1. Keep vehicle level.

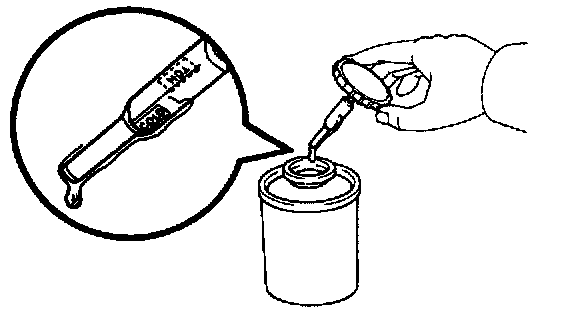

2. Check fluid level. With the engine stopped, check the fluid level in the oil reservoir. If necessary, add fluid.
Fluid: ATF DEXRON II or III.





NOTE: Check that the fluid level is within the HOT LEVEL range on the reservoir cap dipstick. If the fluid is cold, check that it is within the COLD LEVEL range.

3. Boost fluid temperature, as follows:
a. Start the engine and run it at idle.
b. Turn the steering wheel from lock to lock several times to boost fluid temperature.
Fluid temperature: 80°C (176°F).

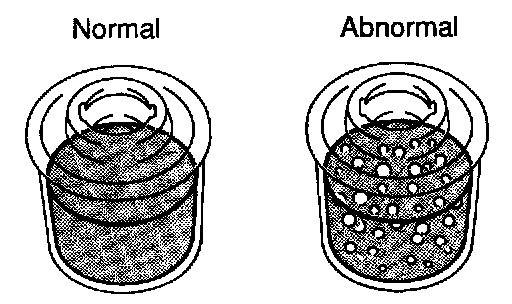

4. Check for foaming or emulsification. If there is foaming or emulsification, bleed power steering system.
Service and Repair

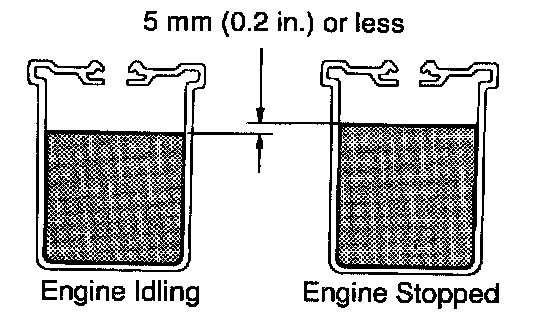

5. Check fluid level rise, as follows:
a. With the engine idling, measure the fluid level in the oil reservoir.
b. Stop the engine.
c. Wait a few minutes and remeasure the fluid level in the reservoir.
Maximum fluid level rise: 5 mm (0.20 inch).
6. Check fluid level.
