Unlock Warning Switch Circuit

CIRCUIT DESCRIPTION
Whether or not the key is inserted in the key cylinder is detected and a signal is sent to the Electronic Control Unit (ECU). (The switch is ON (closed) when the ignition key is inserted.)

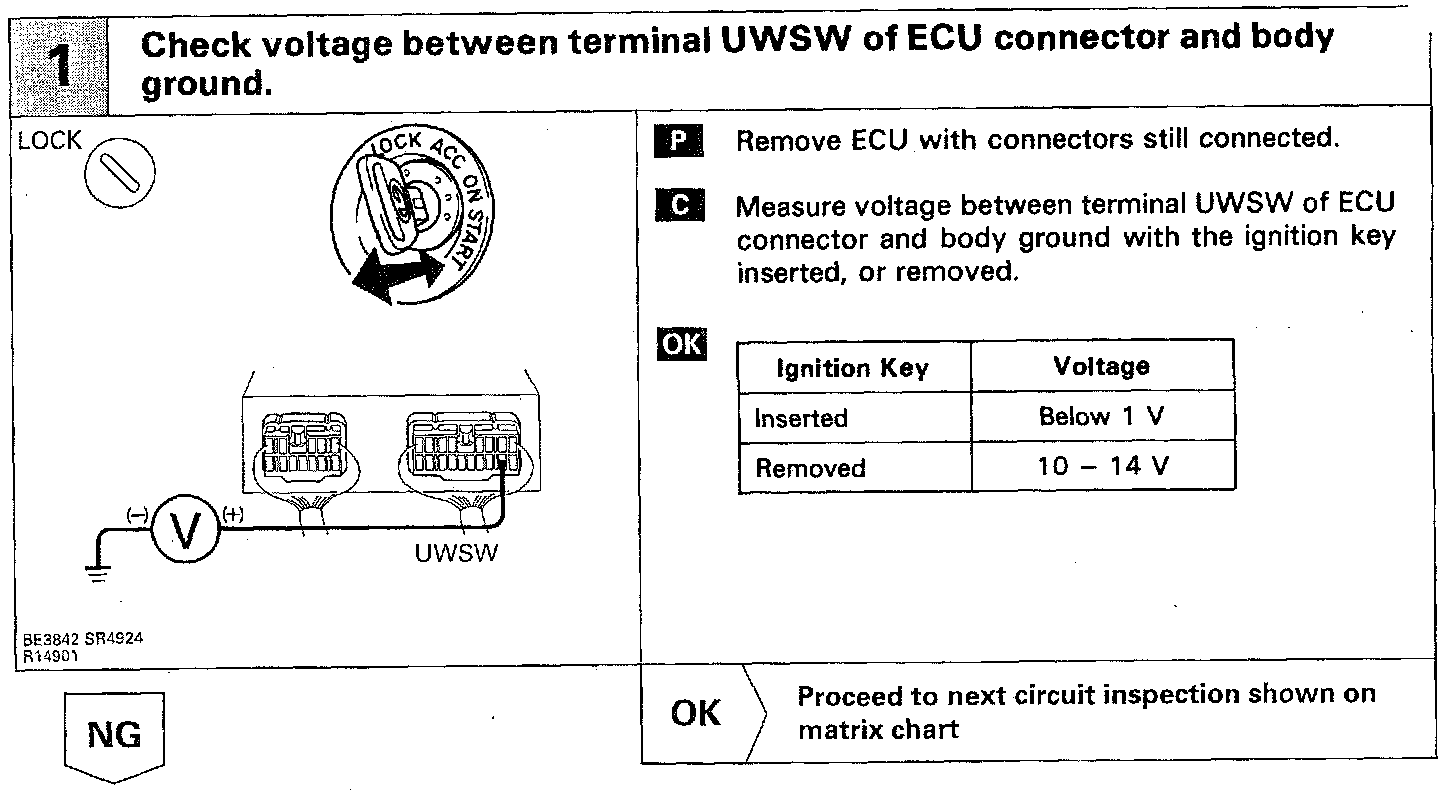

Part 1 Of 2:

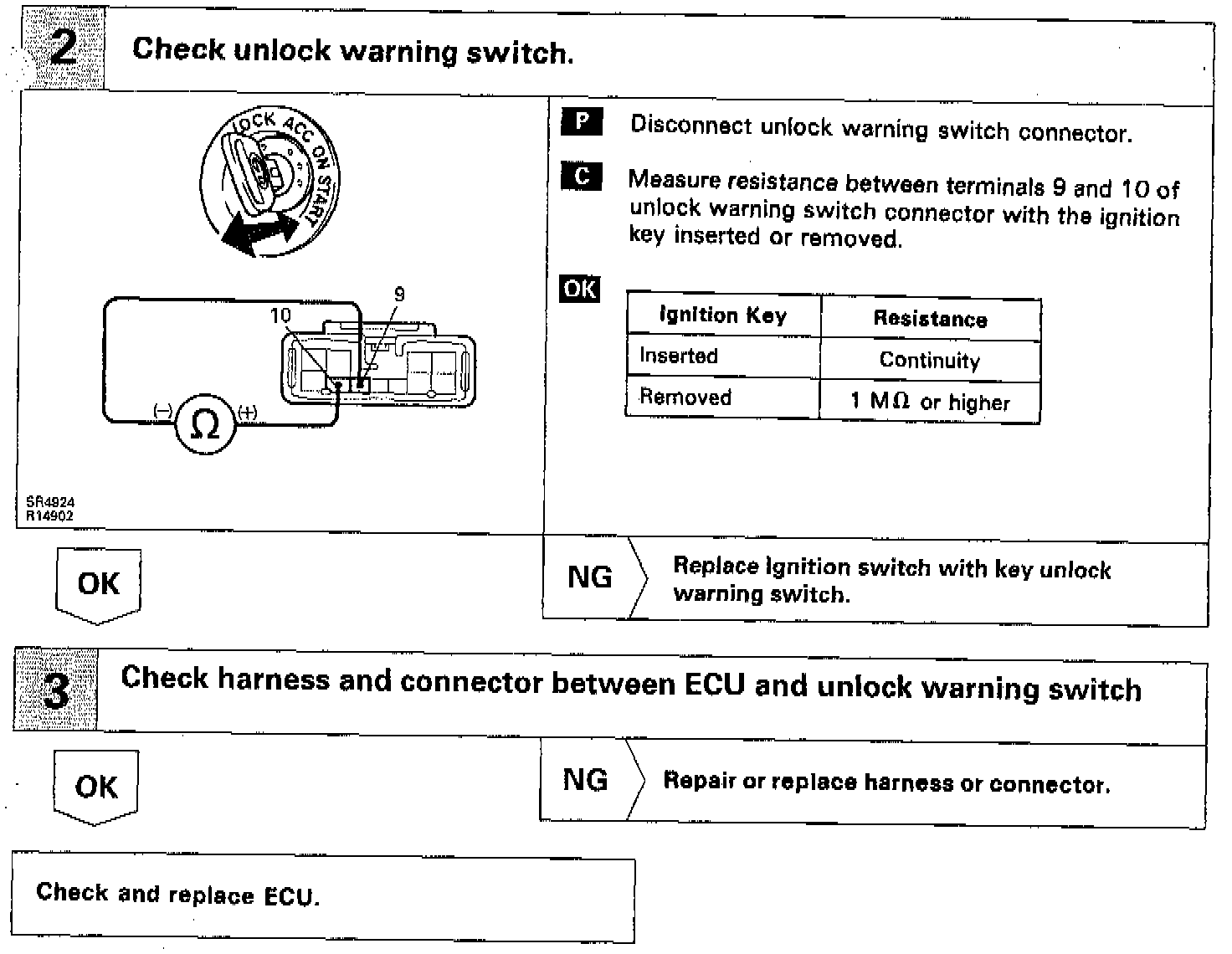

Part 2 Of 2:

INSPECTION PROCEDURE
