Telescopic Position Sensor Circuit

CIRCUIT DESCRIPTION

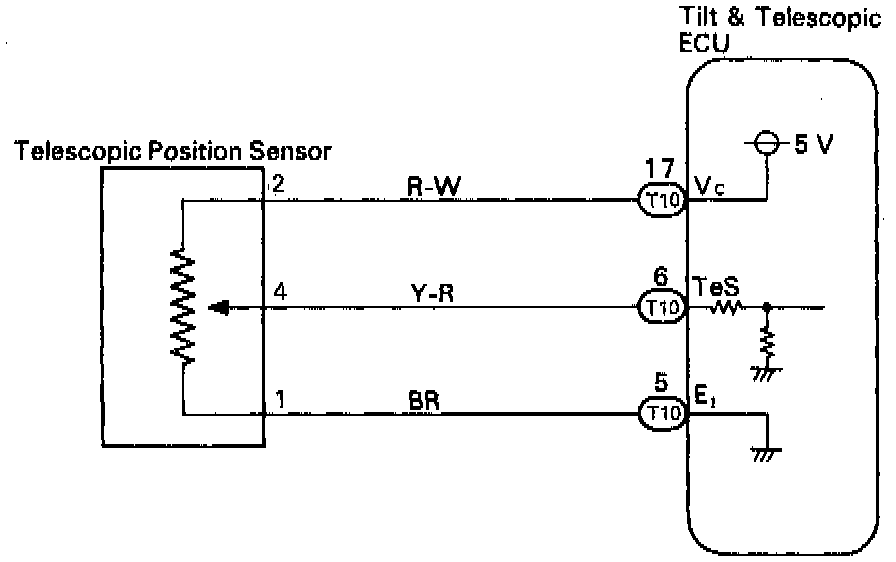

The telescopic position is sent to the Electronic Control Unit (ECU) as a voltage signal from the position sensor. A constant 5 volts is supplied to terminal 6 of the sensor. The voltage at terminal 5 varies with position and is input to the ECU.

Part 1 Of 2:

Part 2 Of 2:

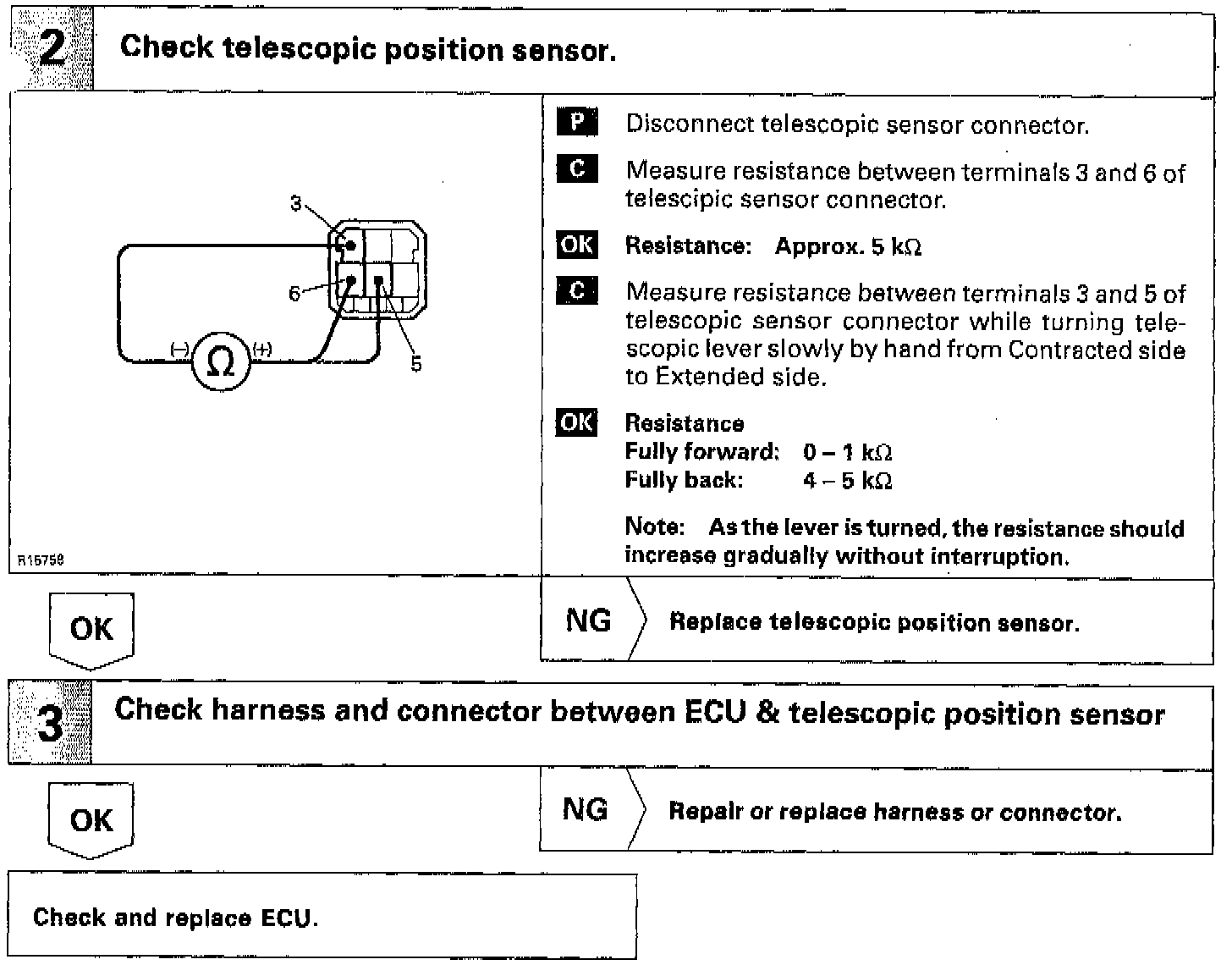

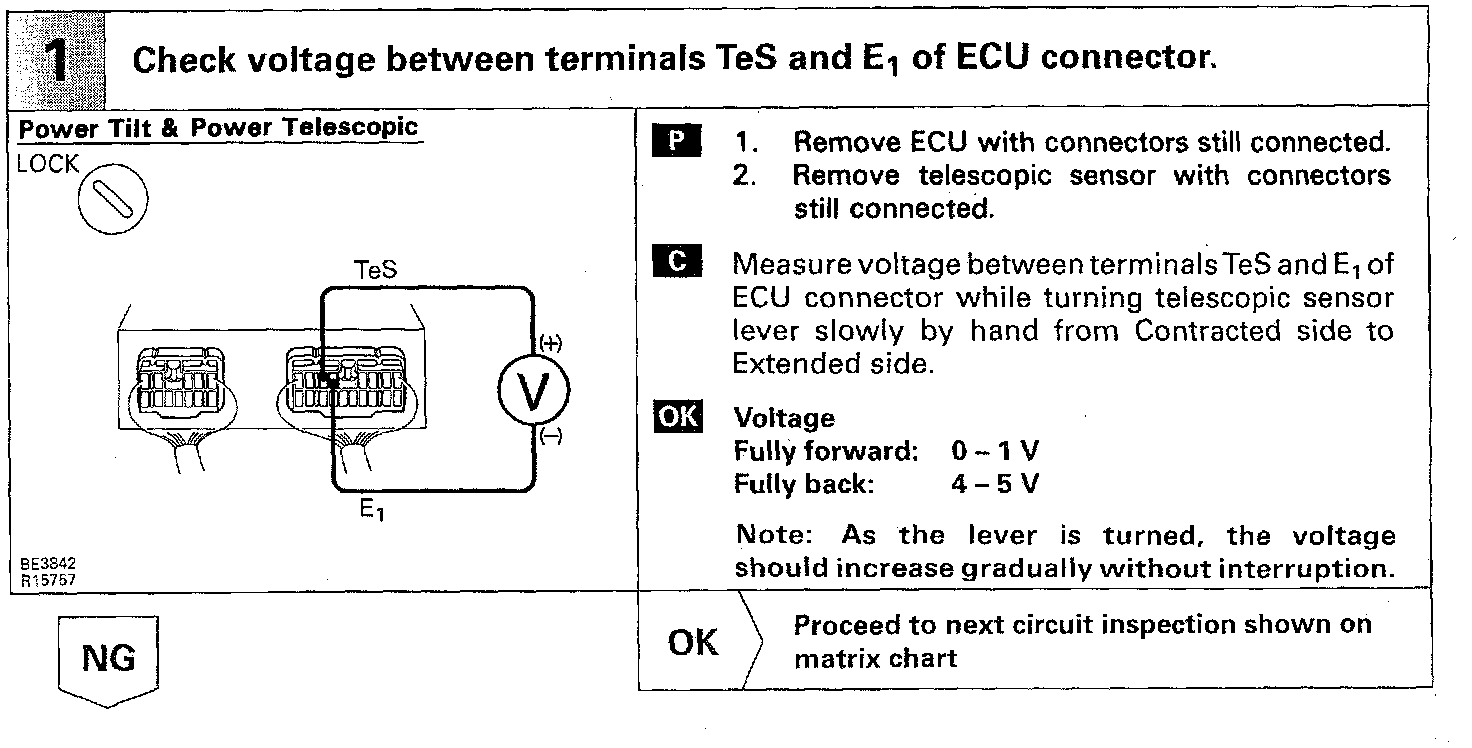

INSPECTION PROCEDURE
