Telescopic Motor Circuit





CIRCUIT DESCRIPTION
The Electronic Control Unit (ECU) provides both +B and ground for the telescopic motor. Reversing polarity of the applied voltage reverses the motor.

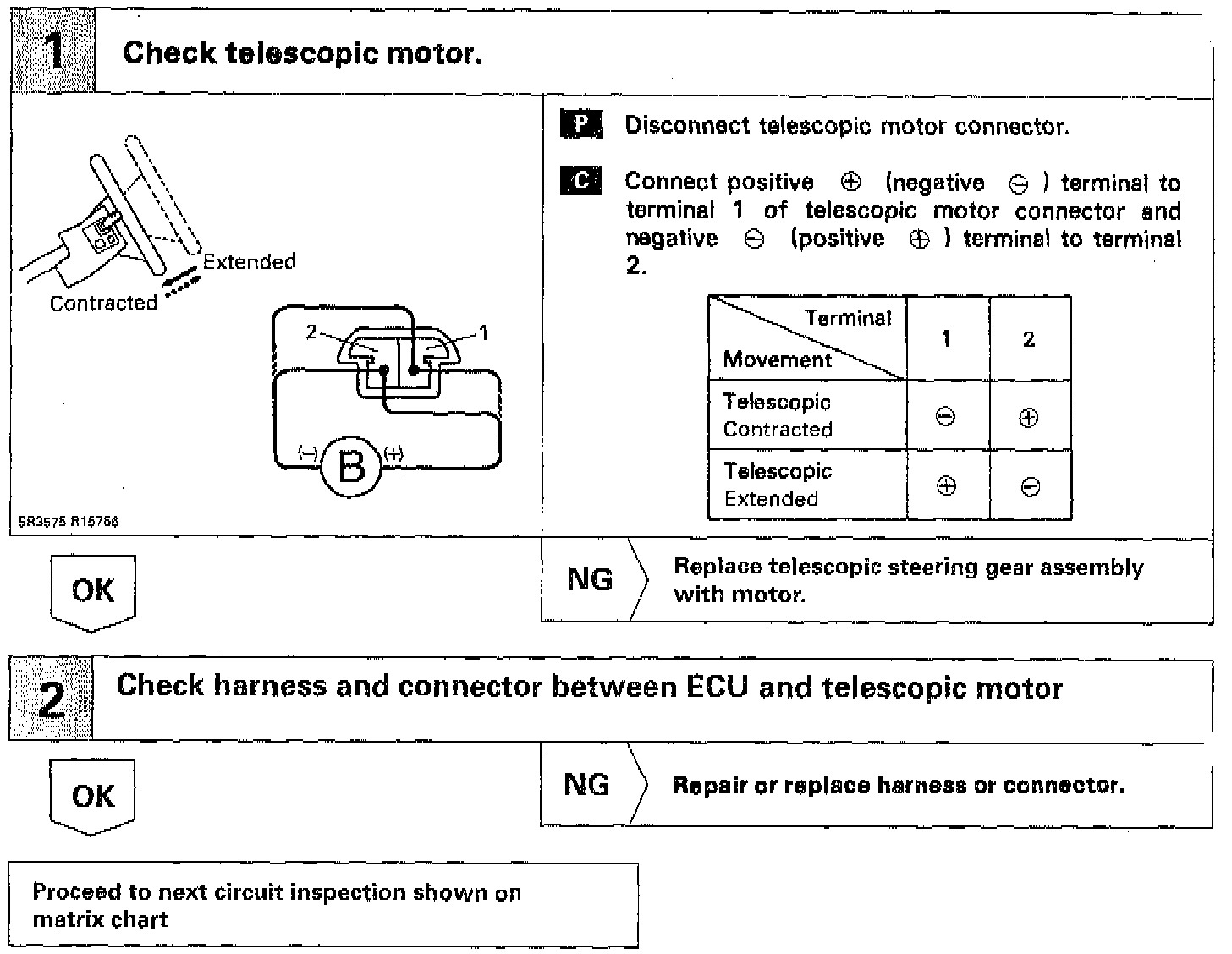

INSPECTION PROCEDURE
