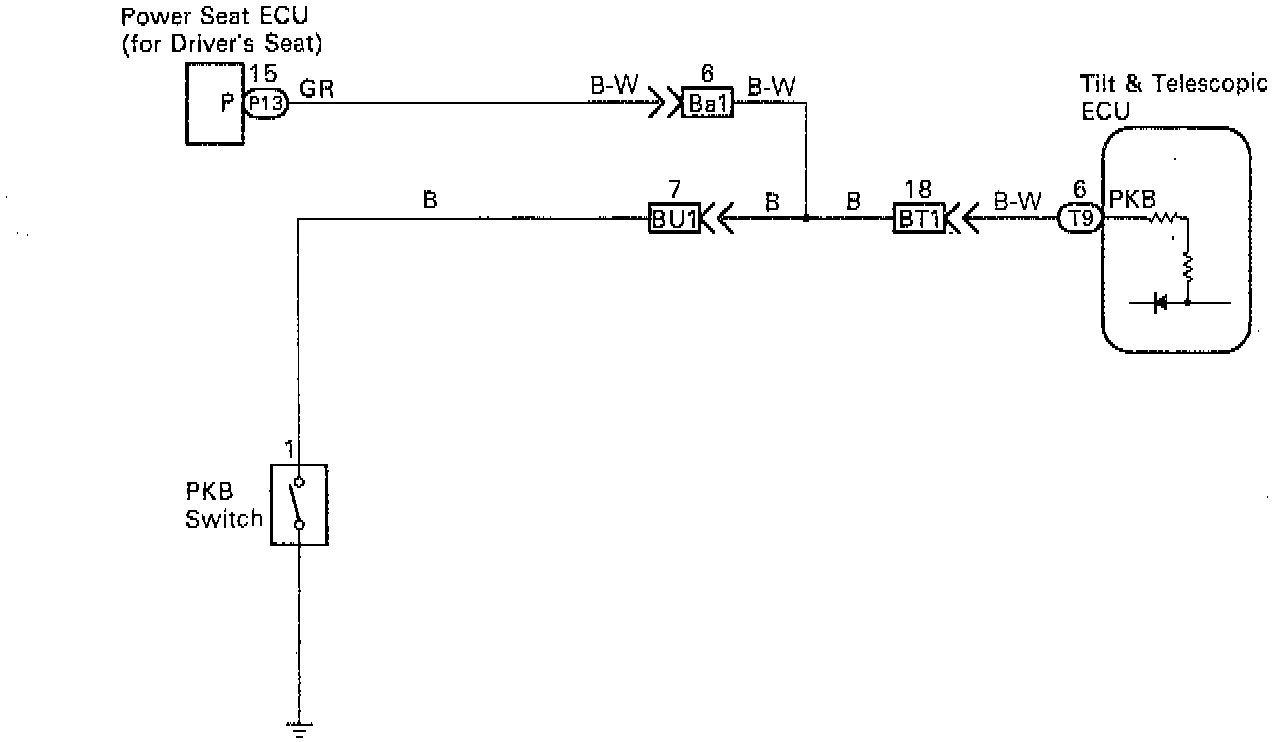

Parking Brake Switch Circuit (M/T)

CIRCUIT DESCRIPTION
When the parking brake is operating, the parking brake switch sends a signal to the Electronic Control Unit (ECU). When this signal is input to the ECU during tilt & telescopic, the ECU cancels the tilt & telescopic.

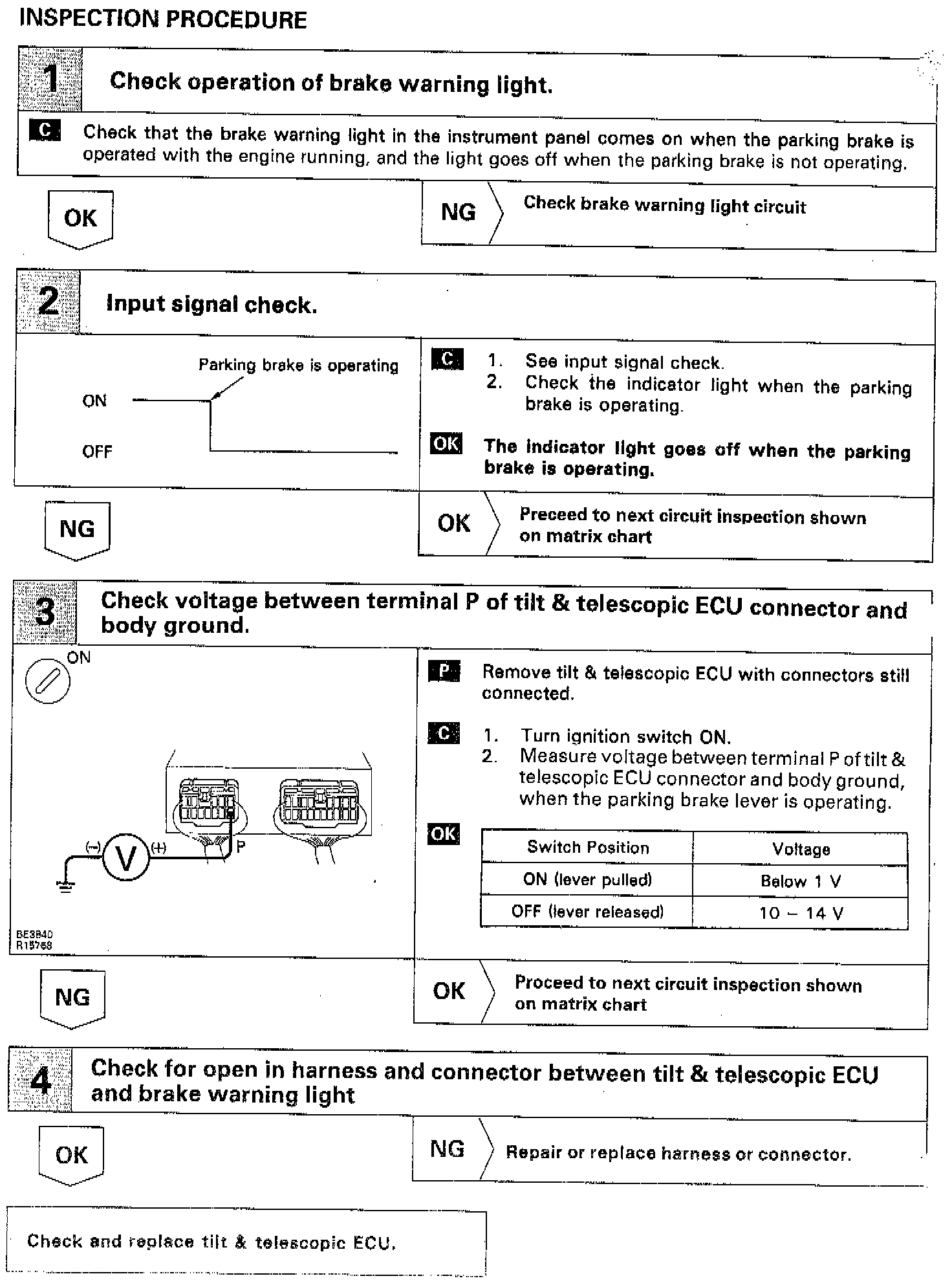

INSPECTION PROCEDURE
