Park/Neutral Position Switch Circuit (A/T)

CIRCUIT DESCRIPTION
The park/neutral position switch detects whether the shift position is in P position or in another position, and sends a signal to the Electronic Control Unit (ECU).

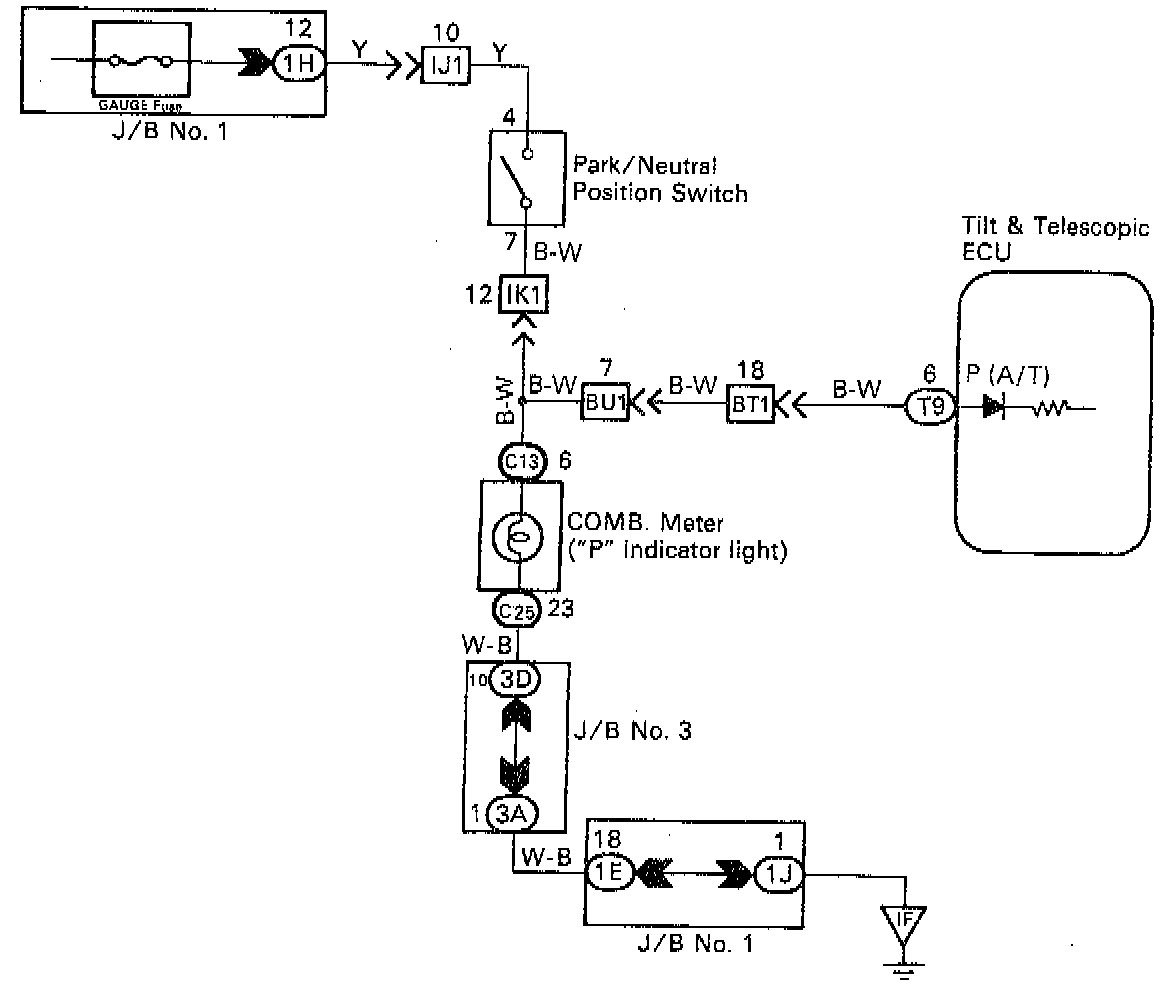

Part 1 Of 2:

Part 2 Of 2:

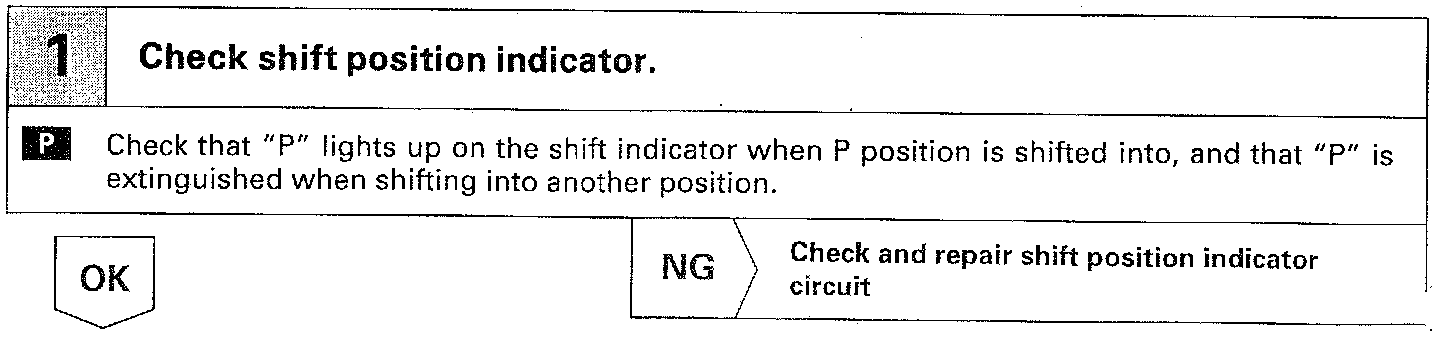

INSPECTION PROCEDURE
