Manual Switch Circuit








CIRCUIT DESCRIPTION

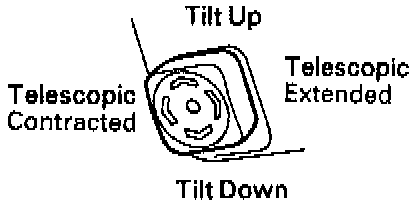

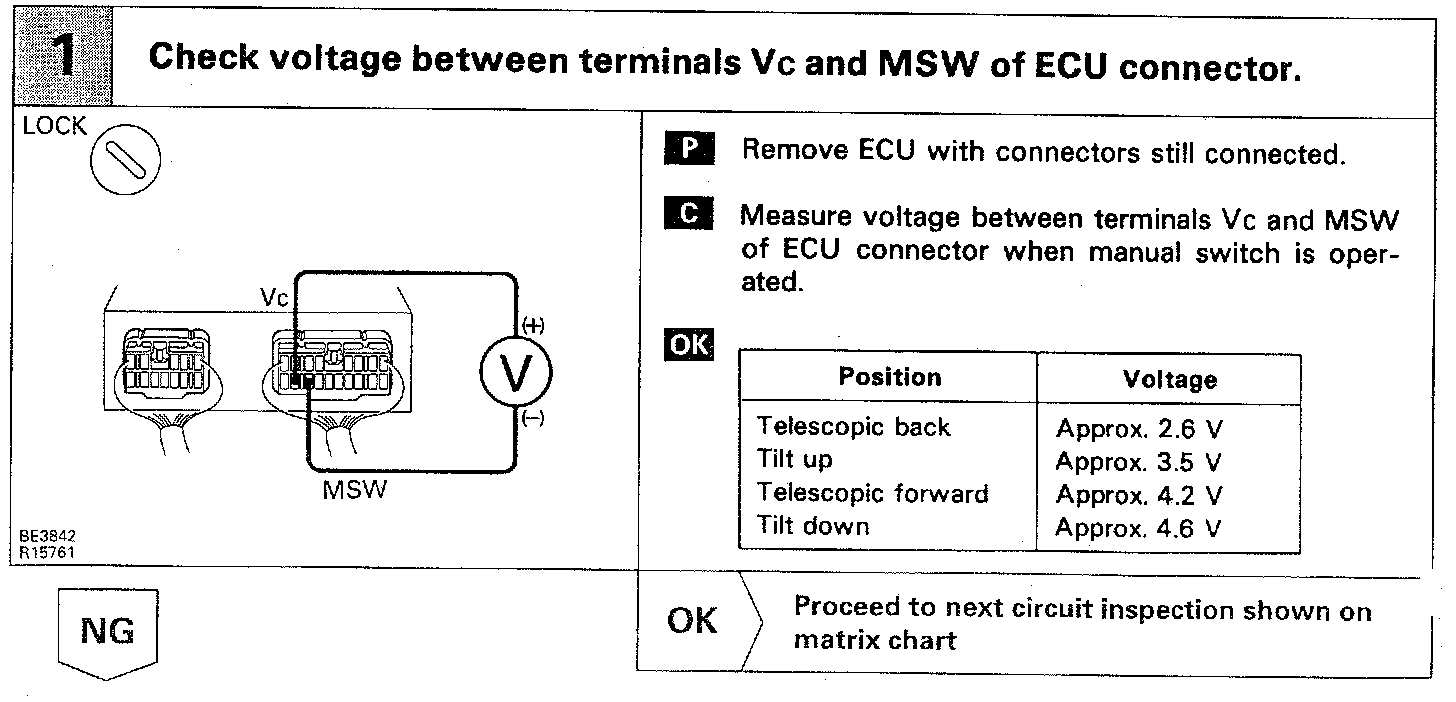

Operation of the switch sends different voltage signals to the Electronic Control Unit (ECU).

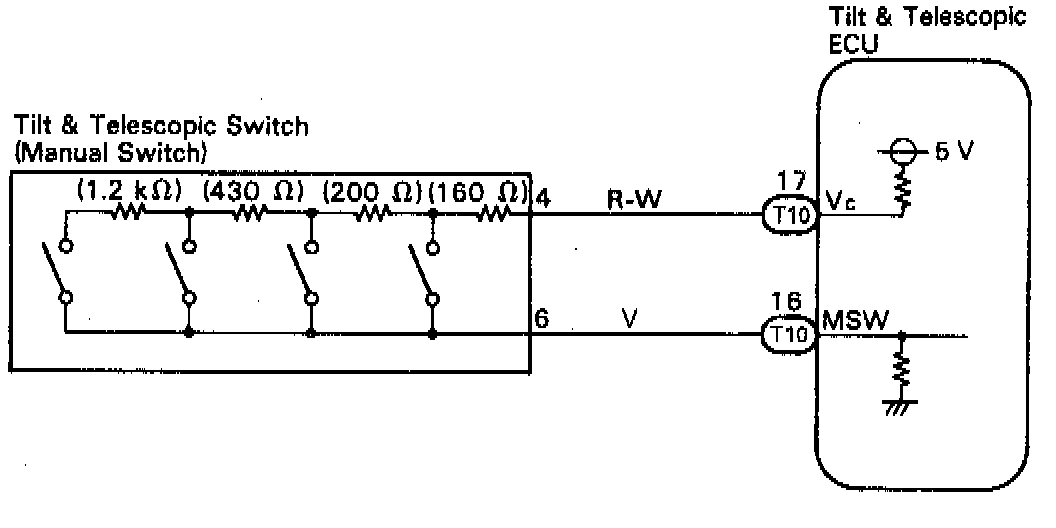

Part 1 Of 2:




Part 2 Of 2:

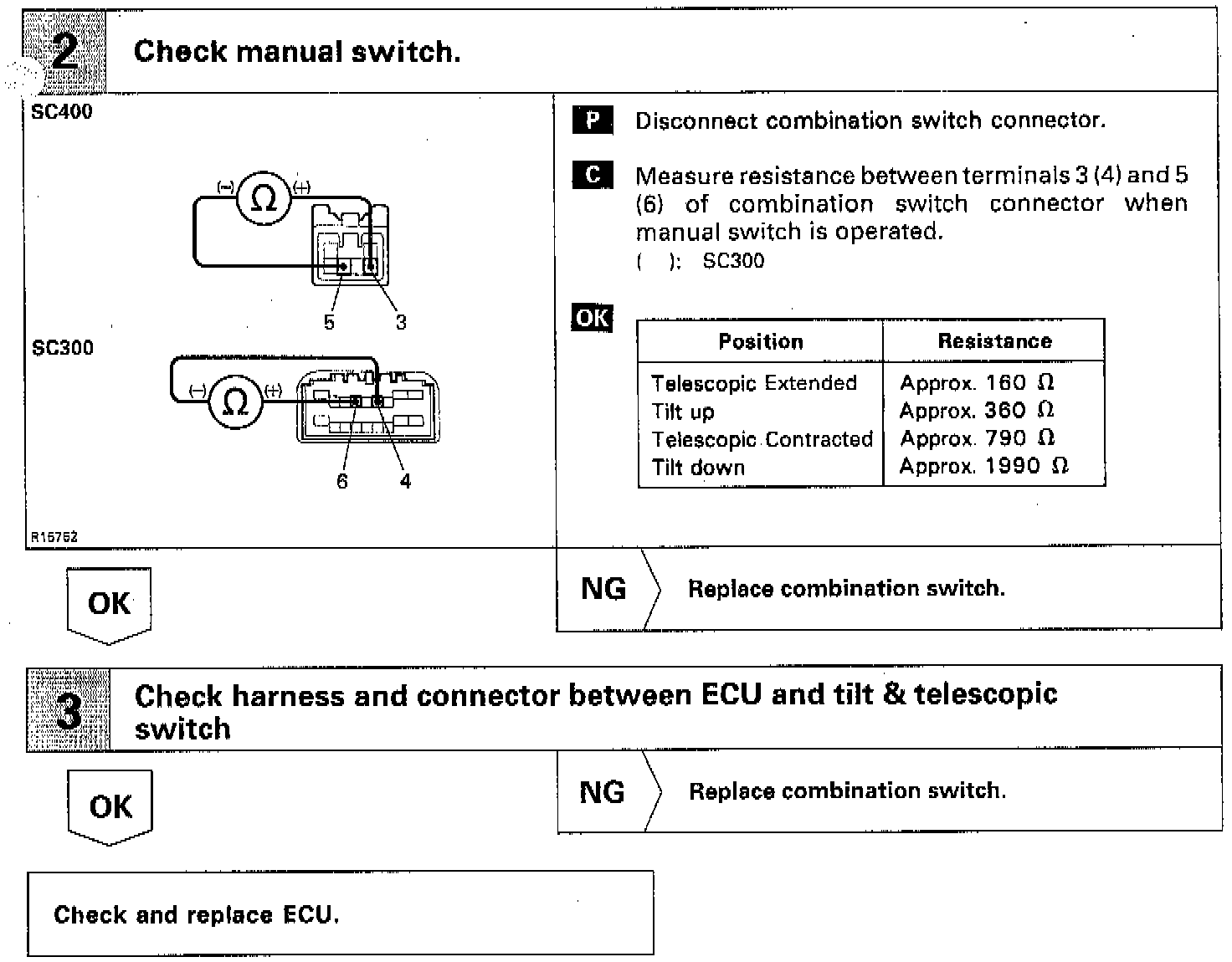

INSPECTION PROCEDURE
