Ignition Switch Circuit

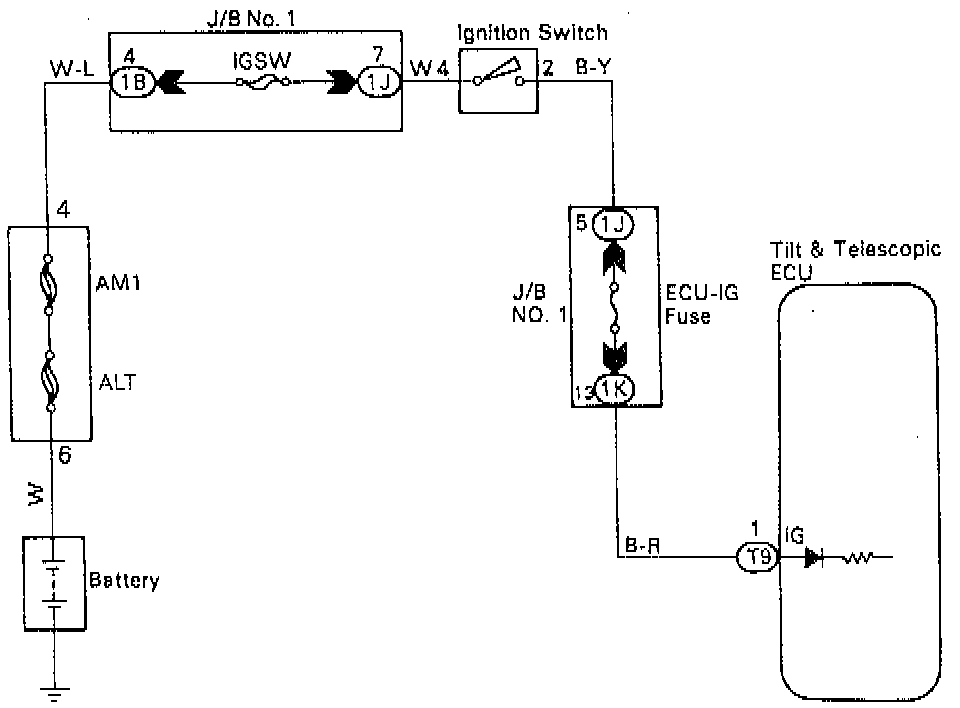

CIRCUIT DESCRIPTION
The ON, OFF signal from the Ignition (IG) switch is sent to the Electronic Control Switch (ECU).

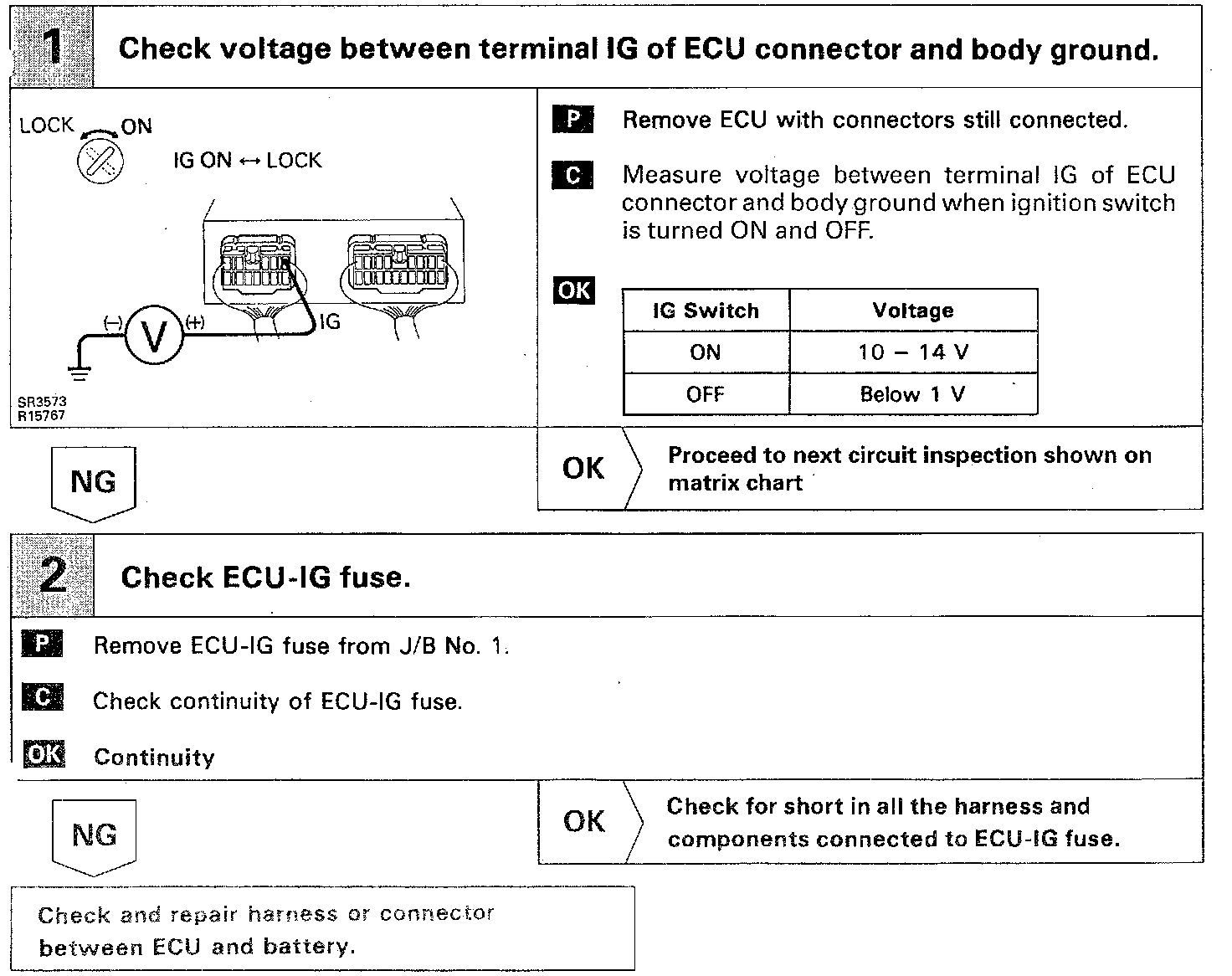

INSPECTION PROCEDURE
