Door Courtesy Switch Circuit

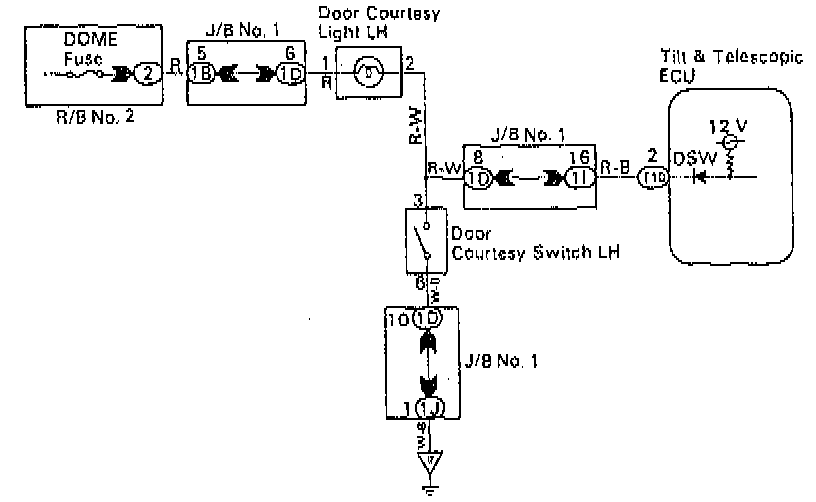

CIRCUIT DESCRIPTION
The Electronic Control Unit (ECU) determines the position of the driver's door by monitoring the voltage at terminal DSW.

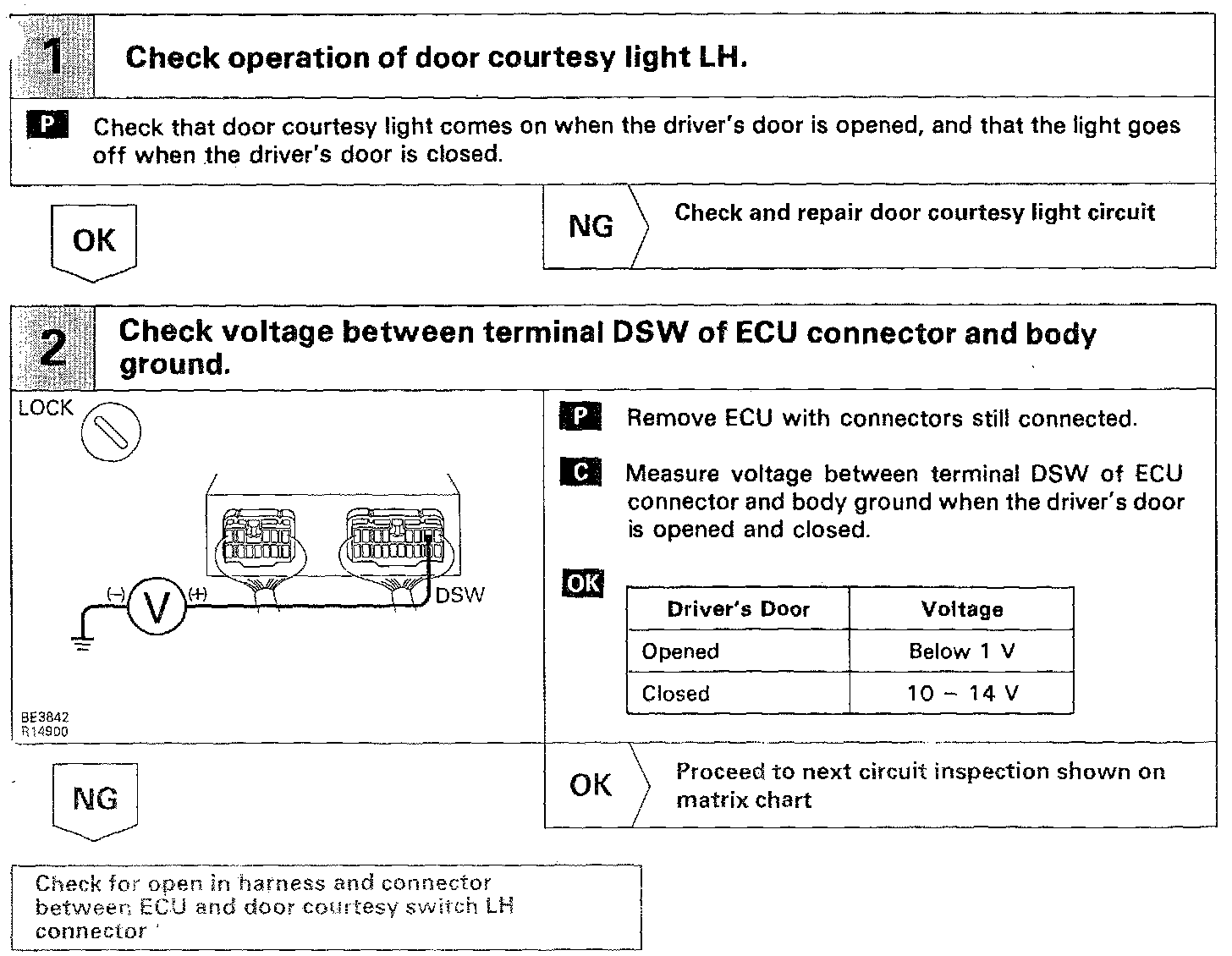

INSPECTION PROCEDURE
