Auto Set Switch Circuit

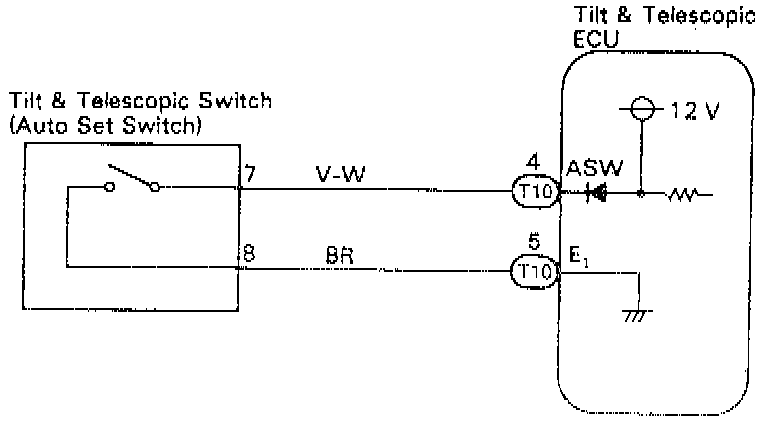

CIRCUIT DESCRIPTION
This is the main switch for auto operation. When the switch is off, auto operation is prohibited.

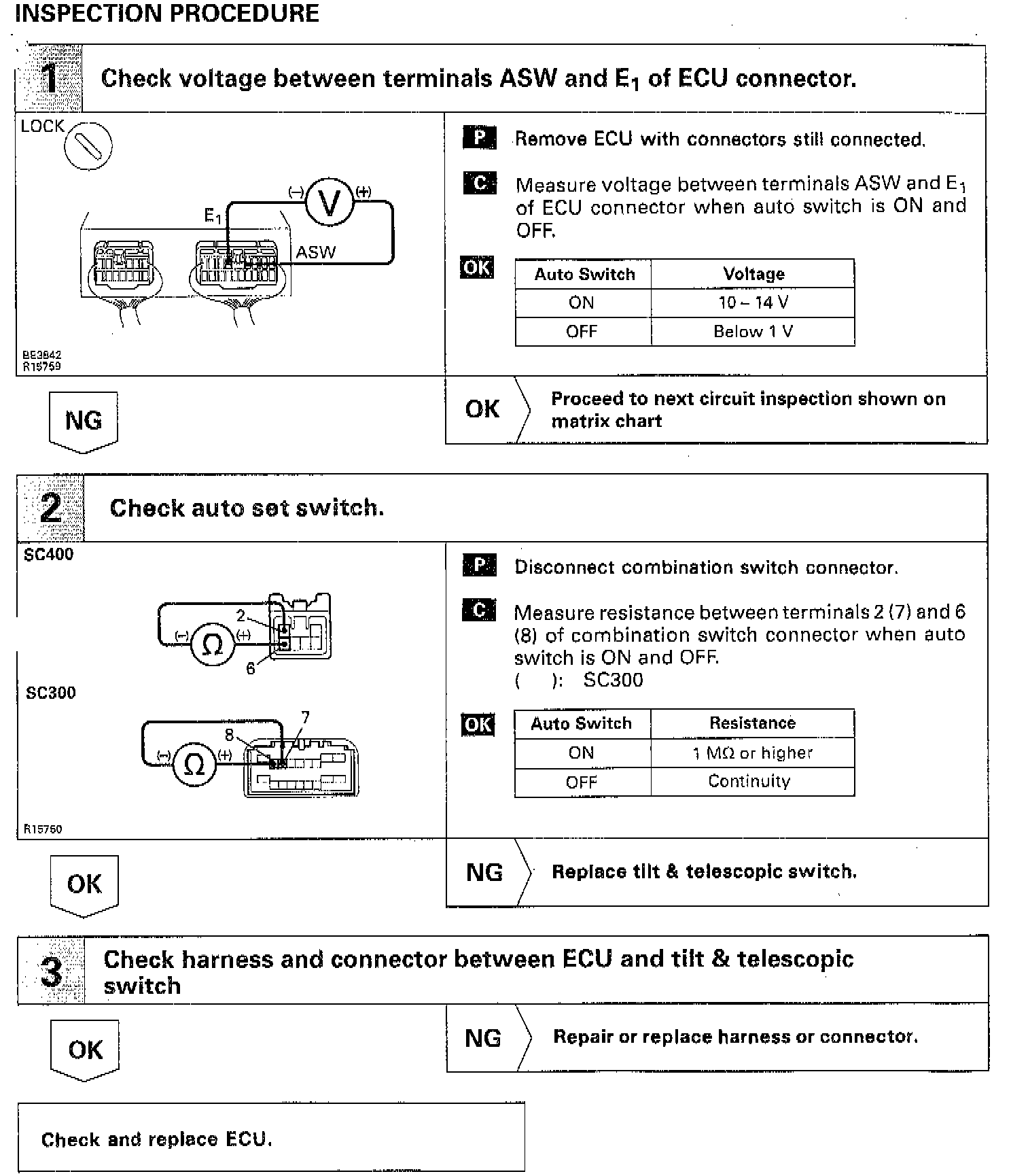

INSPECTION PROCEDURE
